100 series Drum Brake Axle

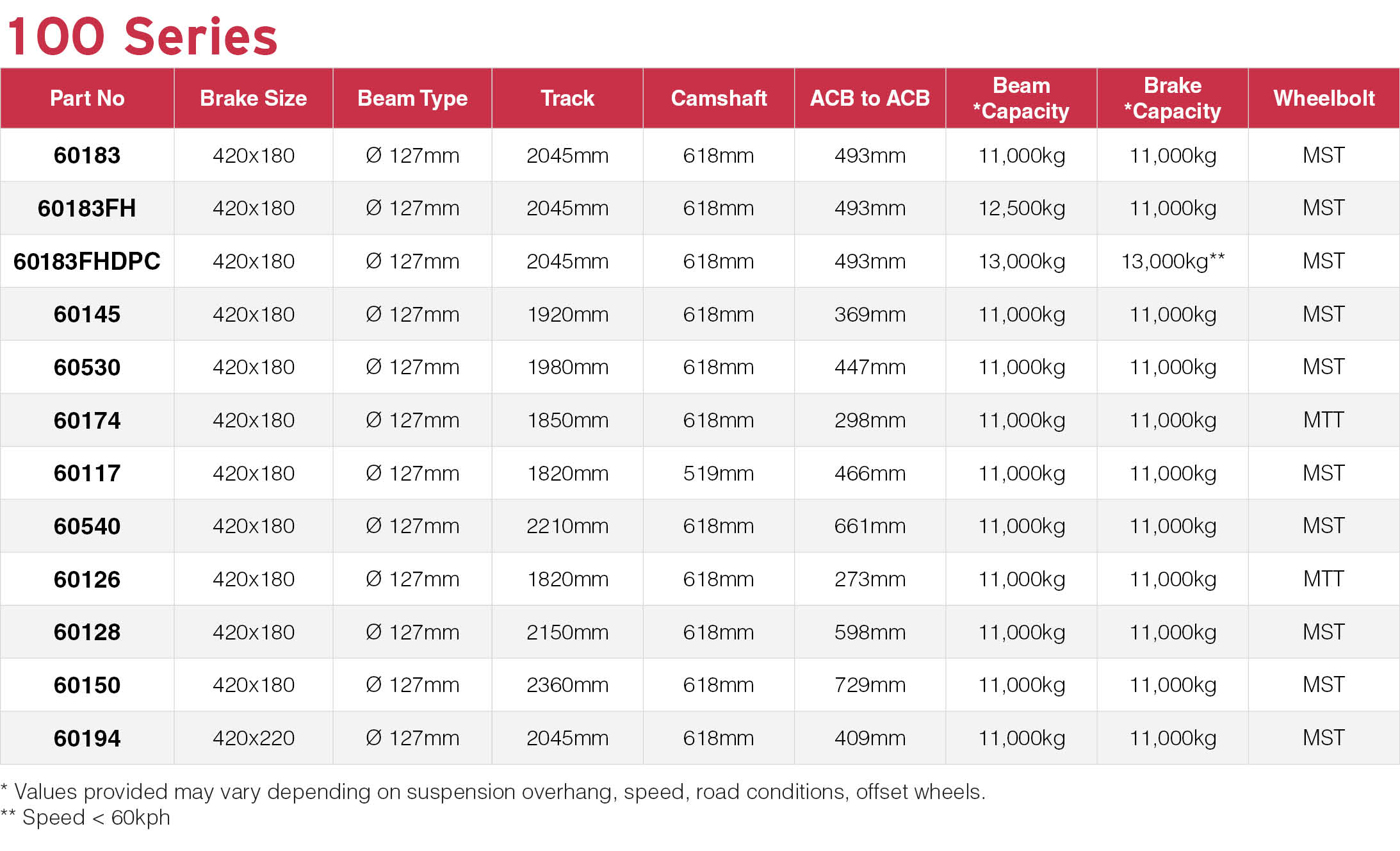

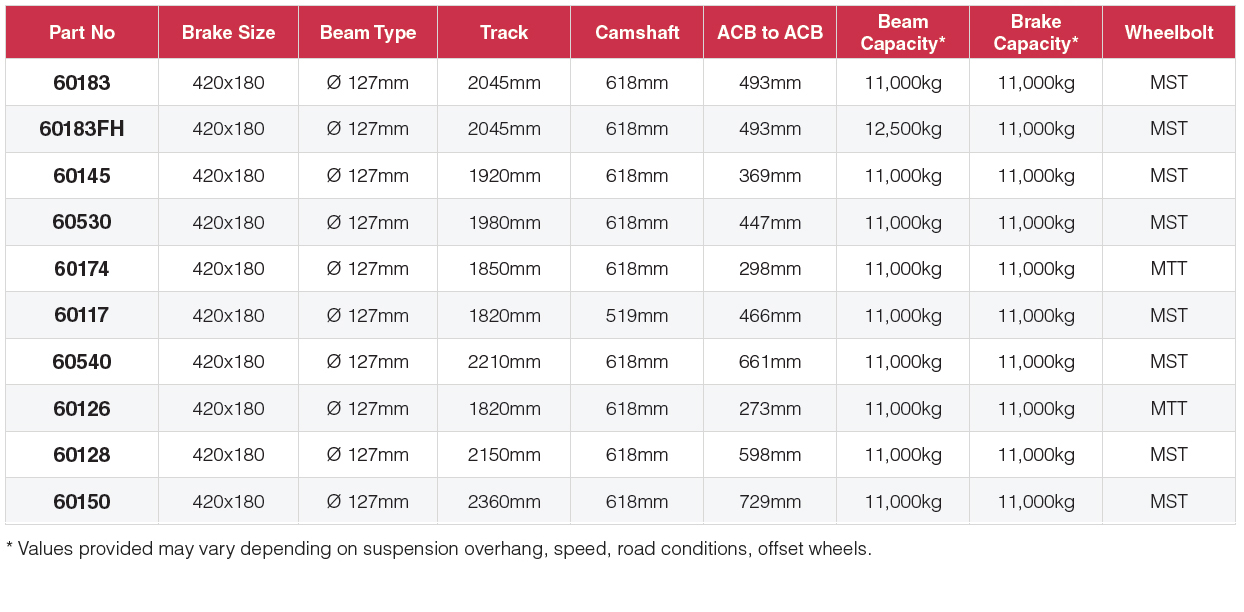

Part No Brake Size Beam Type Track Camshaft ACB to ACB Beam Capacity Brake Capacity Wheelbolt
60183420x180Ø 127mm2045mm618mm493mm11,000kg11,000kgMST
60183FH420x180Ø 127mm2045mm618mm493mm12,500kg11,000kgMST
60183FHDPC420x180Ø 127mm2045mm618mm493mm13,000kg13,000kg**MST
60145420x180Ø 127mm1920mm618mm369mm11,000kg11,000kgMST
60530420x180Ø 127mm1980mm618mm447mm11,000kg11,000kgMST
60174420x180Ø 127mm1850mm618mm298mm11,000kg11,000kgMTT
60117420x180Ø 127mm1820mm519mm466mm11,000kg11,000kgMST
60540420x180Ø 127mm2210mm618mm661mm11,000kg11,000kgMST
60126420x180Ø 127mm1820mm618mm273mm11,000kg11,000kgMTT
60128420x180Ø 127mm2150mm618mm598mm11,000kg11,000kgMST
60150420x180Ø 127mm2360mm618mm729mm11,000kg11,000kgMST
60194420x220Ø 127mm2045mm618mm409mm11,000kg11,000kgMST

* Values provided may vary depending on suspension overhang, speed, road conditions, offset wheels.

Granning Drum Brake Axles 100 series
Granning Drum Brake Axles 100 series

Home > Drum Brake Axles

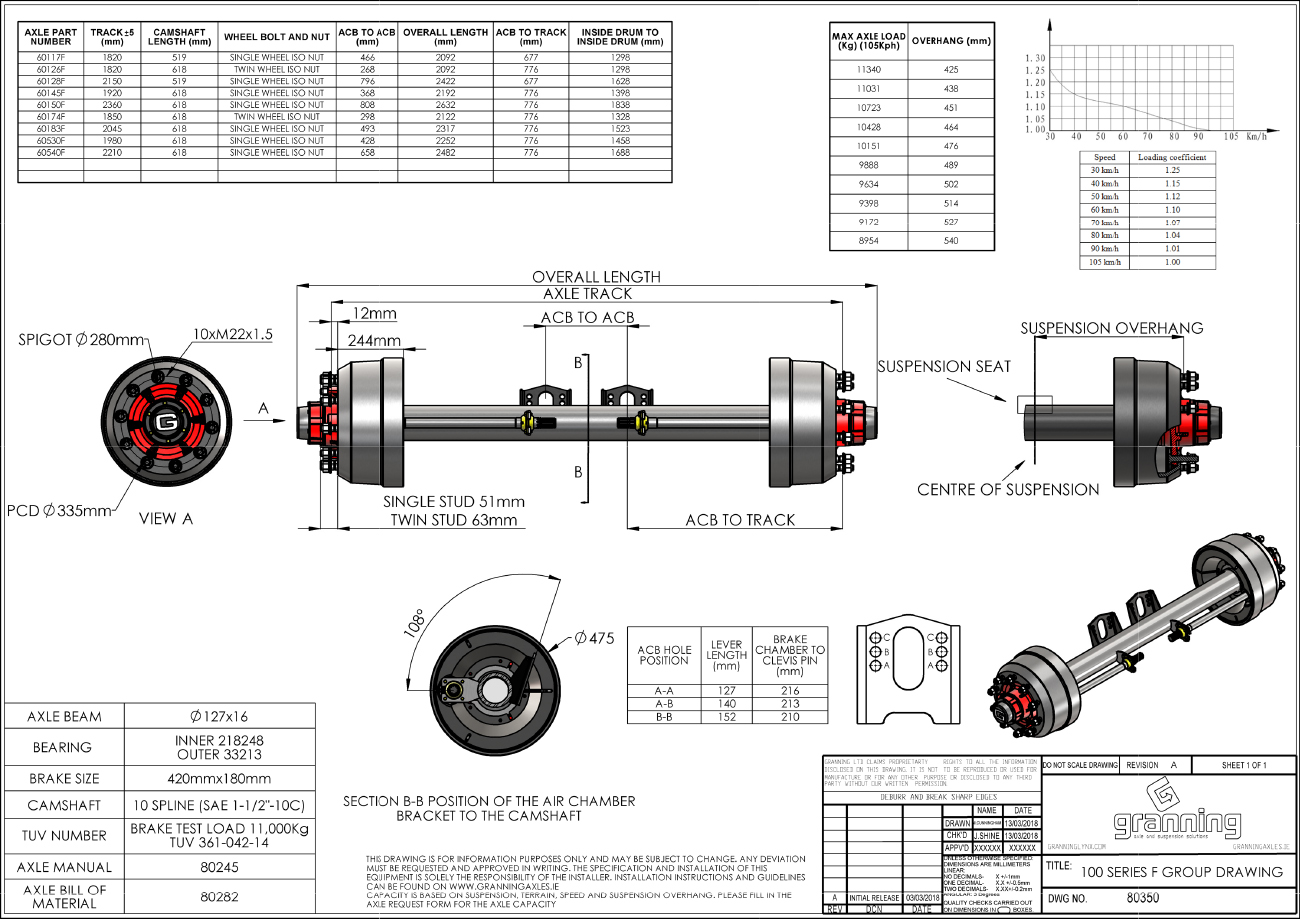

100 series Drum Brake Axle

Granning Drum Brake Axles 100 series
Granning Drum Brake Axles 100 series
Granning Drum Brake Axles 100 series

Download Documentations

Bill of Materials
100 F series external drum

420 x 180mm – 100 F series external drum Bill of Materials

Bill of Materials
100 A series external drum

420 x 180mm – 100 A series external drum Bill of Materials

Bill of Materials
100 series internal drum

420 x 180mm – 100 series internal drum Bill of Materials

Axle Service Manual
100 series

420 x 180mm – 100 series Axle Service Manual

TUV Certification

TÜV Certification

WHY BUY FROM GRANNING AXLES

  • In house production facilities

  • Bespoke Axle solutions

  • All products built to ISO 9001 2015 standards

  • Customer configurable building process

100 SERIES AXLES OVERVIEW

  • 100 Series axle is a commercial spec axle.
  • Commonly used on Grain trailers, Tipper trailers, Flat bed trailers.
  • Wide range of set ups available on mechanical and air suspensions.
  • ABS and Stub axle versions available.
  • Wide range of tracks, camshaft lengths and wheel bolts available.
  • Commonly used with 385 65 R22.5, 560 60 R22.5, 11R tyres.
  • 3D axle models on request
