100 “F” Series Axle Spare Parts

Revision Date: October 2024
Part No. 80282 REV E

100 series axle is TUV tested to 11000Kg.

Available in single and twin wheel stud; 10 spline camshaft; Brake Size: 420mm x 180mm; 335mm PCD 10 stud; M22 hub and drum; 280.8mm hub pilot.

View / Download PDF

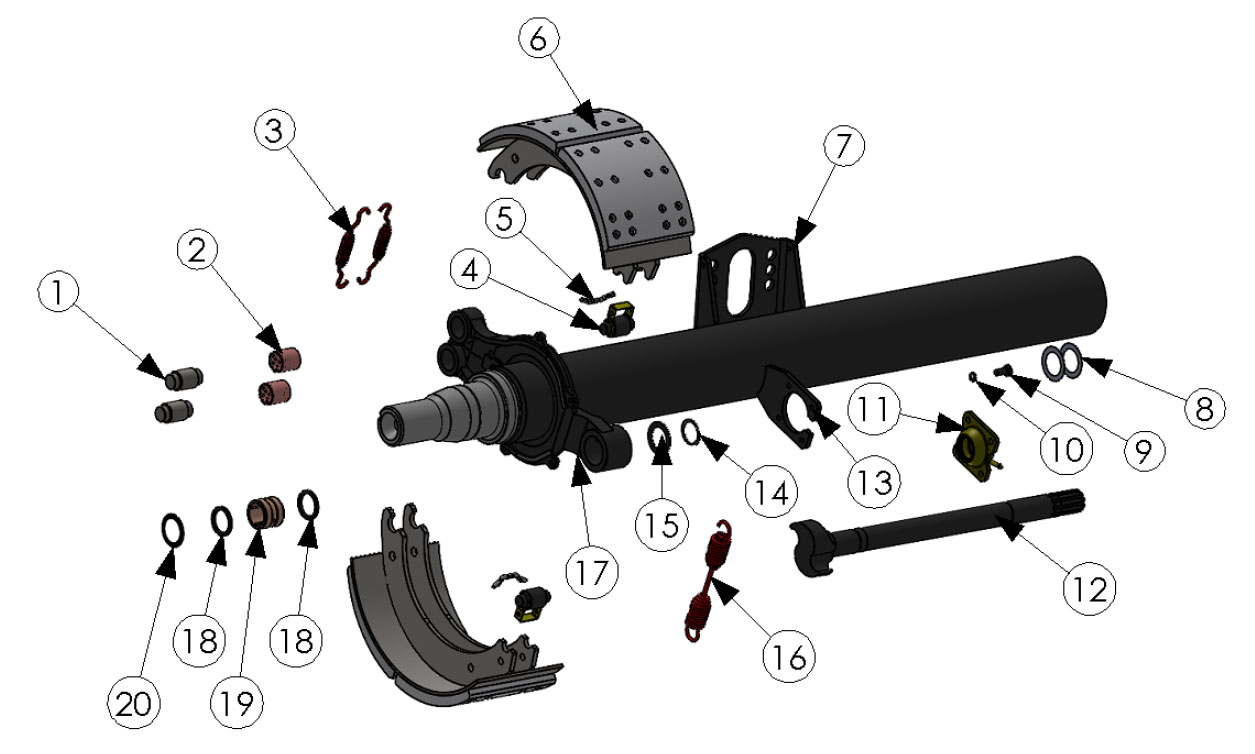

Quick Fit Brake Assembly

Item	Part No.	Description	QTY per Axle	Kit Name
1	61171	Anchor Pin	4	AK300
2	61200B	Bush Anchor Pin	4	AK300
3	61141	Brake Shoe Retaining Spring	4	AK300
	61157FA	Brake Shoe Assembly	4
(4)	61235	Retainer Cam Roller	(4)	AK300
	61220	Retainer Cam Roller Retainer	(4)	AK300
(5)	61150	Spring Anchor Bar	(4)	AK300
(6)	61157F	Brake Shoe (FWE11)	(4)
7	61041F	Air Chamber Bracket	2
8	96365F	Camshaft Support Washer	4	AK200
9	61359	M10 x 20 Screw	8	AK200
10	96363F	Serrated Washer	8	AK200
	96364F	Spring Washer	8	AK200
11	61080F	Spherical Bearing	2	AK200
	61107	Spherical Bearing Grease Nipple ¼” 28UNF	2	AK200
12		Axle Camshaft	2
13	61050F	Camshaft Support Bracket	2
14	61120	Circlip	2	AK200
15	61058	Support Washer Camshaft	2	AK200
16	61140	Brake Return Spring	2	AK300
17	61110	Anchor Bracket Grease Nipple 1/8NPT 45°	2
18	61056	Camshaft Grease Seal	4	AK200

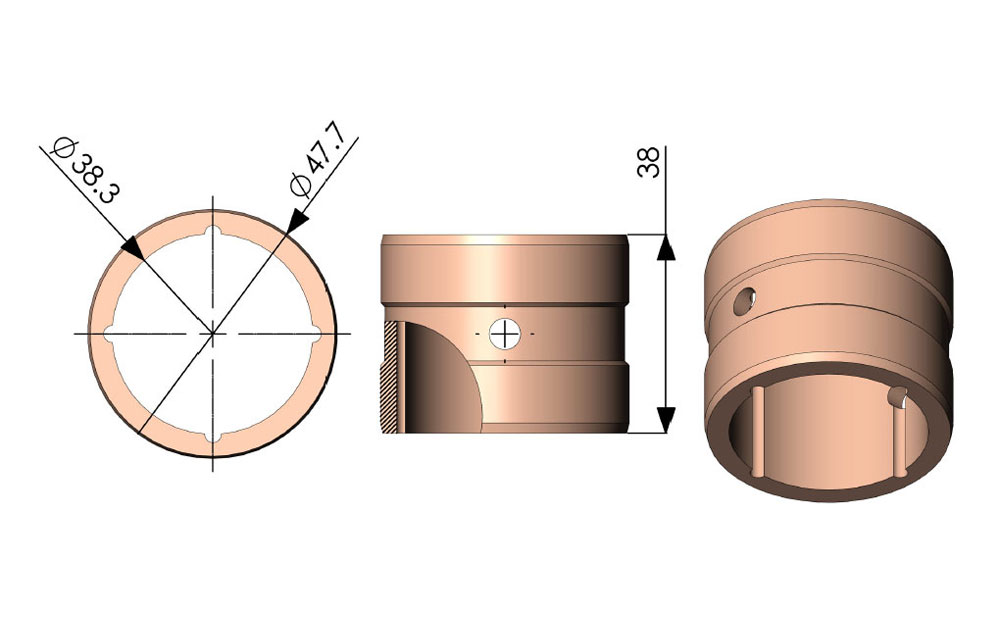

19	61055	Camshaft Sintered Bush	2	AK200
20	61057	Beveled Washer	2	AK200

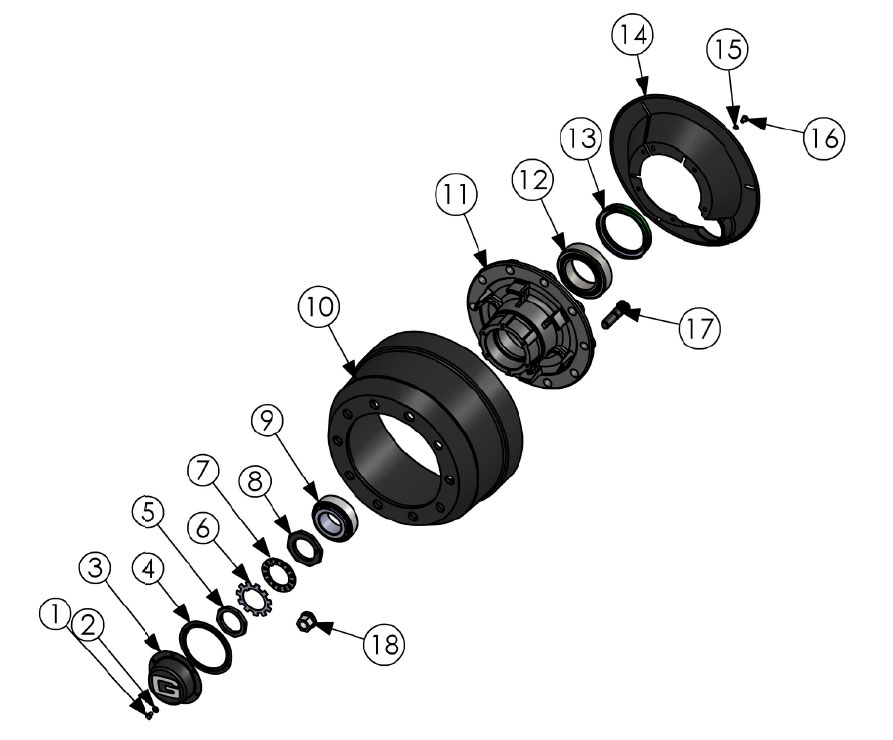

Hub/Drum Assembly

Item	Part No.	Description	QTY per Axle	Kit Name
1	61358F	Screw M8 x 16 Fl. Head	12	AK102
2	96366F	M8 Serrated Washer	12	AK102
3	61322	Hub Cap Pressing "G"	2	AK102
4	61330F	Gasket	2	AK102
5	61310	Locknut	2	AK100
6	61311	Tab Washer	2	AK100
7	61300	Lock Washer	2	AK100
8	61290	Adjusting Nut	2	AK100
9	61270F	Outer Bearing	2	71001/4
10	61243F	Brake Drum 10 Stud	2	71001/4
11	61253F	Hub Spigot 10 Stud	2	71001/4
12	61260F	Inner Bearing	2	71001/4
13	61282F	Unitised Grease Seal	2	71001/4
14	61390F	Dust Cover	2	61390FK
15	96366F	M8 Serrated Washer	12	61390FK
16	61358F	M8x16mm Bolt	12	61390FK
17	61386F	Wheel Bolt M22 ISO (Twin)	20	71004
	61388F	Wheel Bolt M22 ISO (Single)	20	71001
18	61381Z	ISO Wheel Nut M22	20	71001/4
	61383	DIN Wheel Nut M22	20
	61411	DIN Wheel Nut M22	20
	61372	DIN Nut Outer Washer	20
	61371	DIN Nut Inner Washer	20

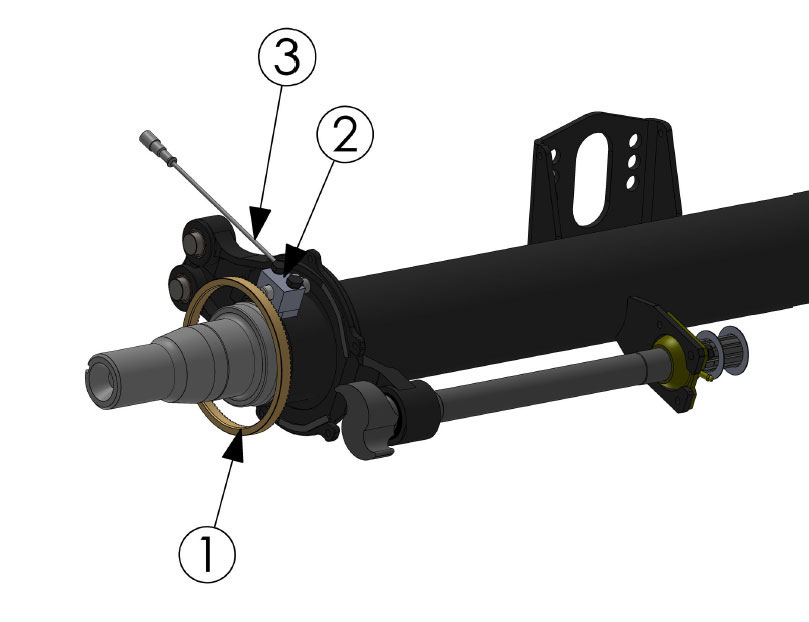

ABS/Anti-Lock Assembly

Item	Part No.	Description
1	61789	Pole Wheel (100 tooth)
2	61376F	Sensor Block
3	61786	90 Degree ABS Lead
4	61557	Dust Cover Grommet

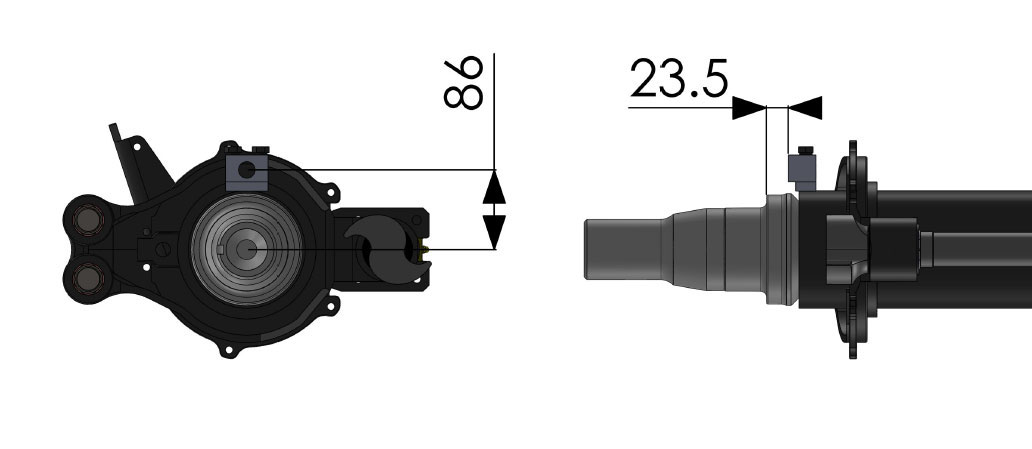

Face of sensor block 23.5mm from large bearing shoulder
Bolt on ABS block (as shown above) is positioned 90 degrees to camshaft. Weld on style is 180 degrees to camshaft and is in line with hole in anchor bracket.

Camshafts

Camshaft lengths are measured from under head to the center of last circlip groove.

The illustrated camshaft is a right-hand camshaft. When looking at the head of the camshaft a right-hand cam is Z shaped and a left hand is S shaped

420 x 180 – 100 “F” Series Camshaft Parts List | Granning Axles & Suspensions

Part No.	Description (DIM A)
61127	Left Hand Large Head (189mm)
61147	Right Hand Large Head (189mm)
61061	Left Hand Large Head (212mm)
61071	Right Hand Large Head (212mm)
61138	Left Hand Large Head (250mm)
61148	Right Hand Large Head (250mm)
61065	Left Hand Large Head (519mm)
61075	Right Hand Large Head (519mm)
61067	Left Hand Large Head (618mm)
61077	Right Hand Large Head (618mm)
61151	Left Hand Large Head (680mm)
61152	Right Hand Large Head (680mm)

Loose Parts

61171
Anchor pin

61200B
Bush Anchor Pin

61141
Brake Shoe Retaining Spring

61150
Spring Anchor Bar

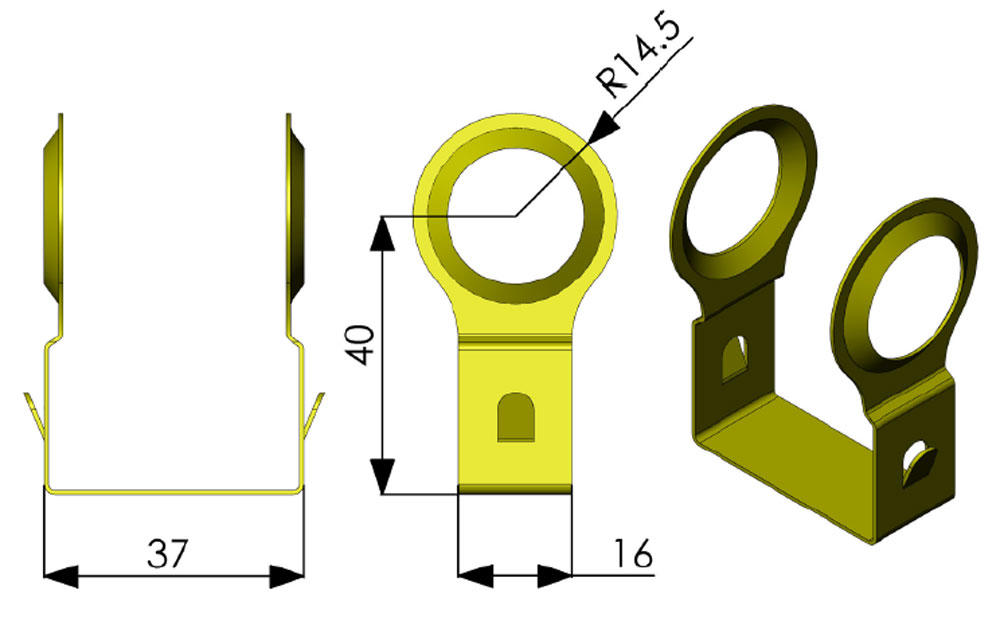

61220

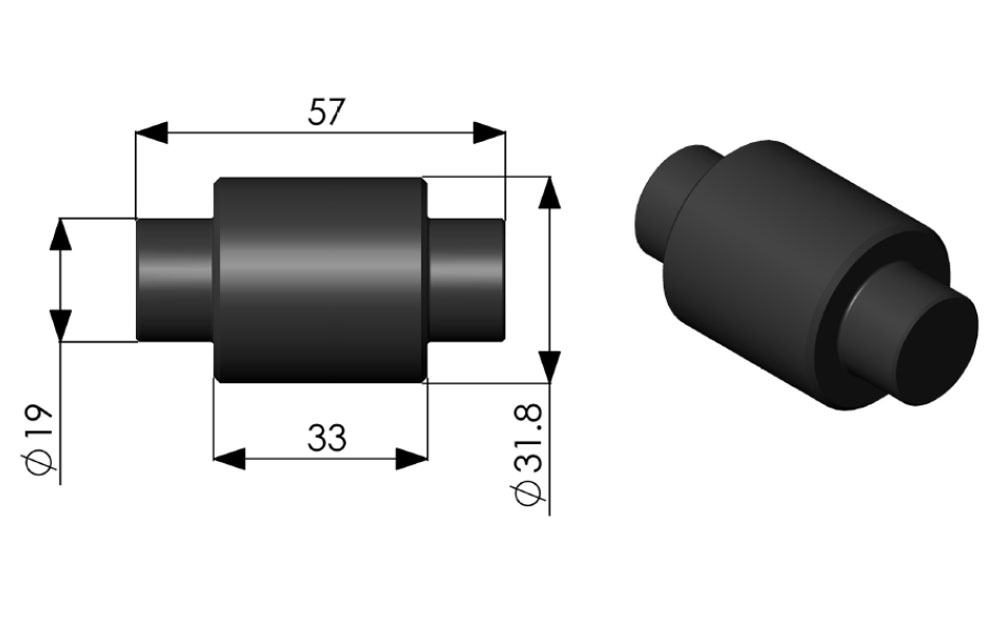

Retainer Cam Roller

61235
One Piece Cam Roller

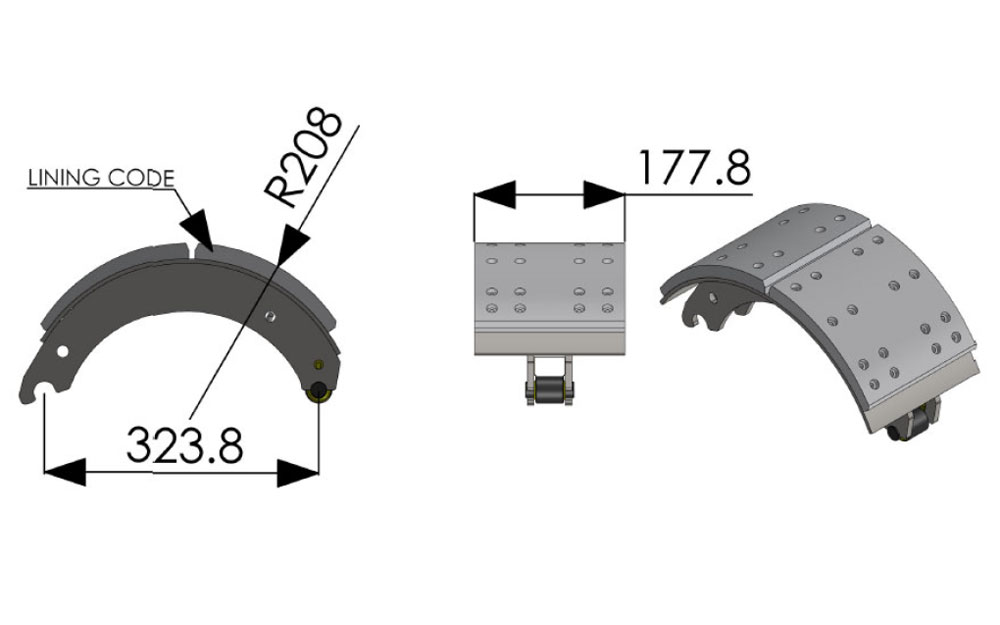

61157FA – Brake shoe with spring anchor bar and cam roller (FWE11)

61157FA
Brake shoe (FWE11)

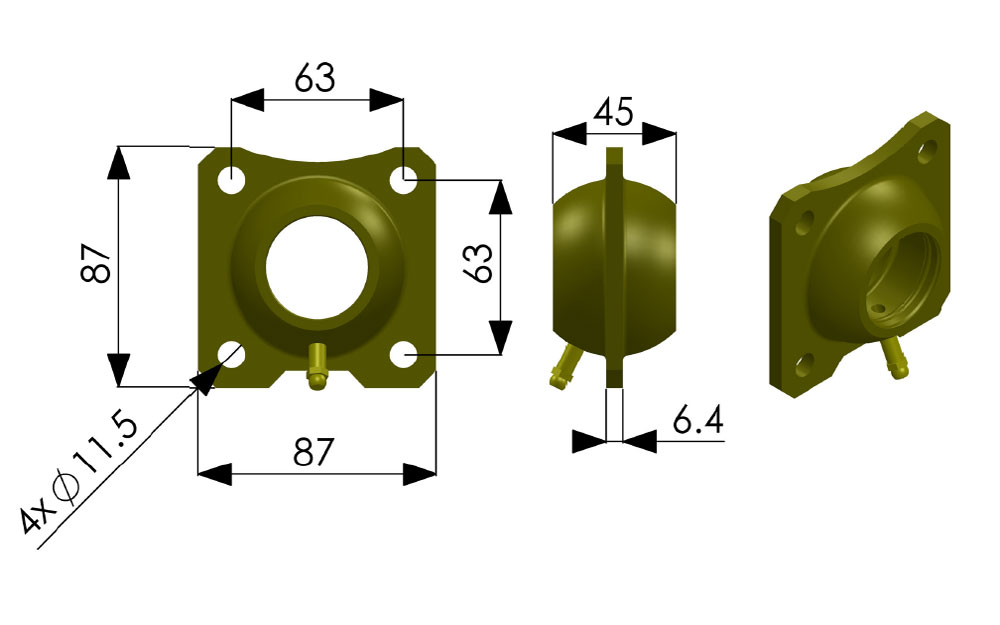

61080F
Camshaft Spherical Bearing

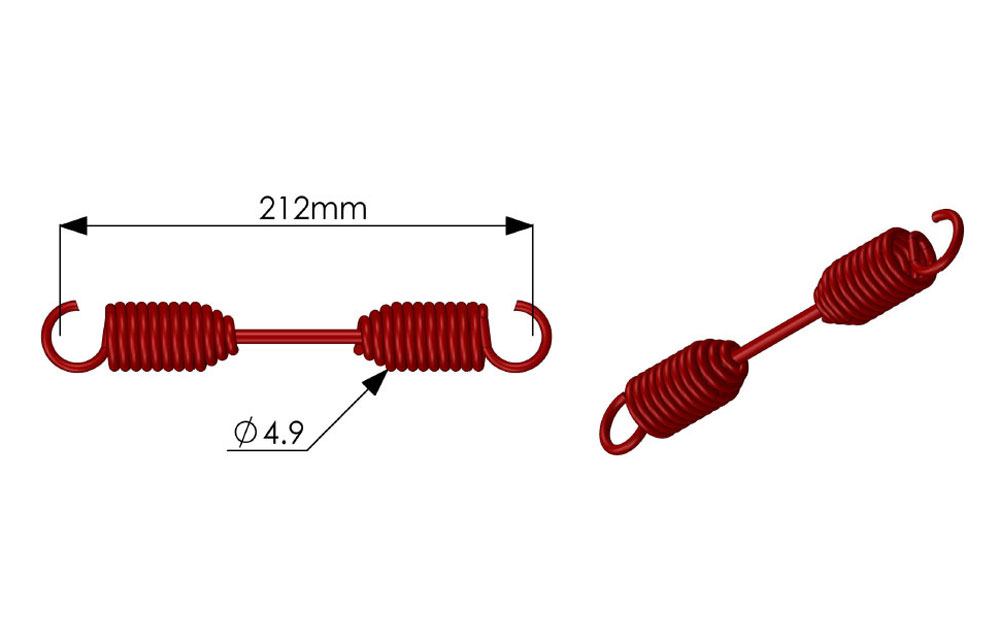

61140
Spring Return

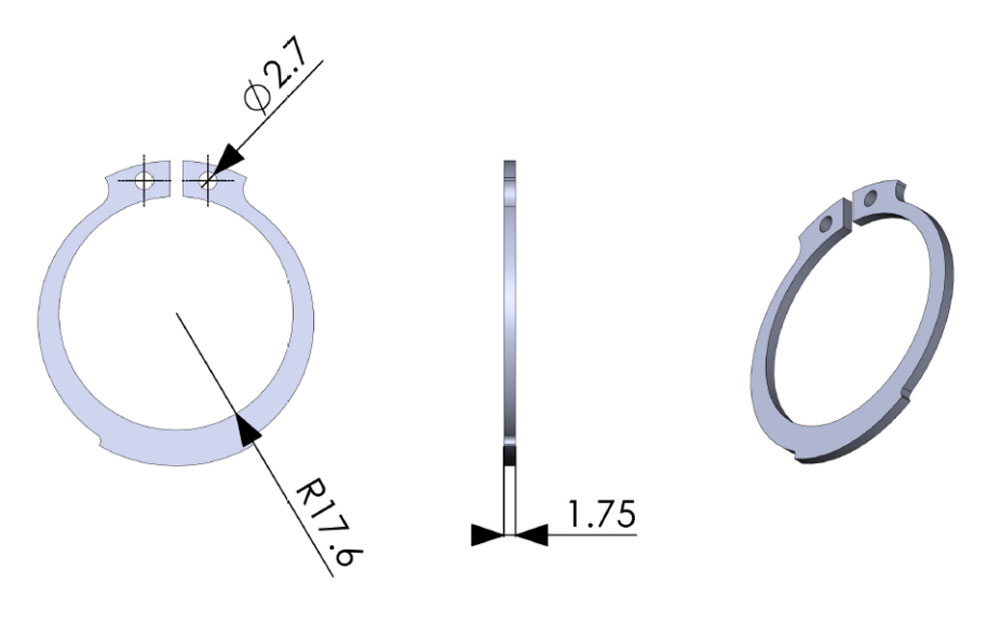

61120
Circlip

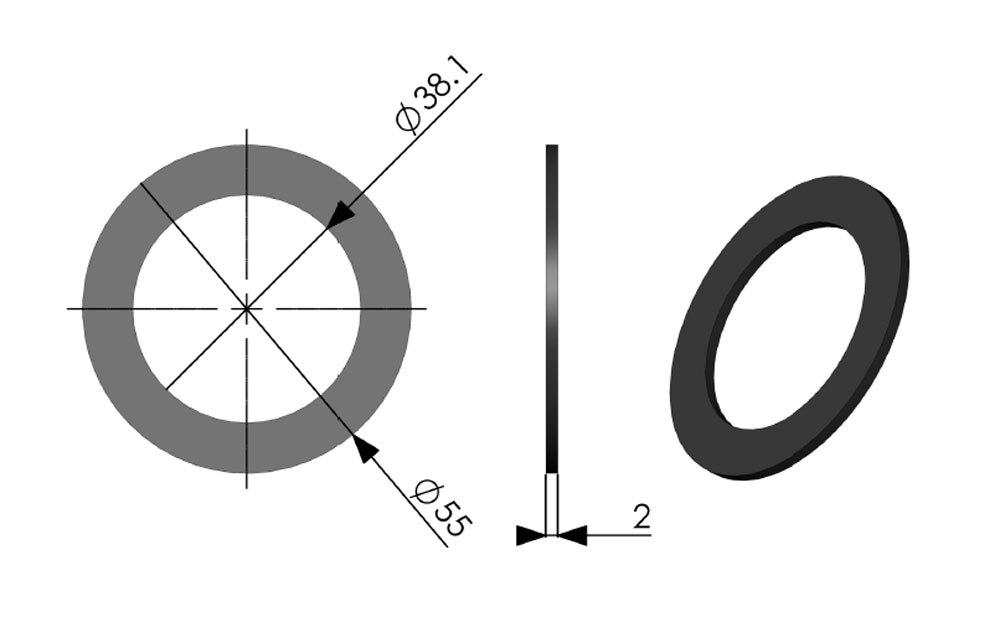

61058
Camshaft Support Washer

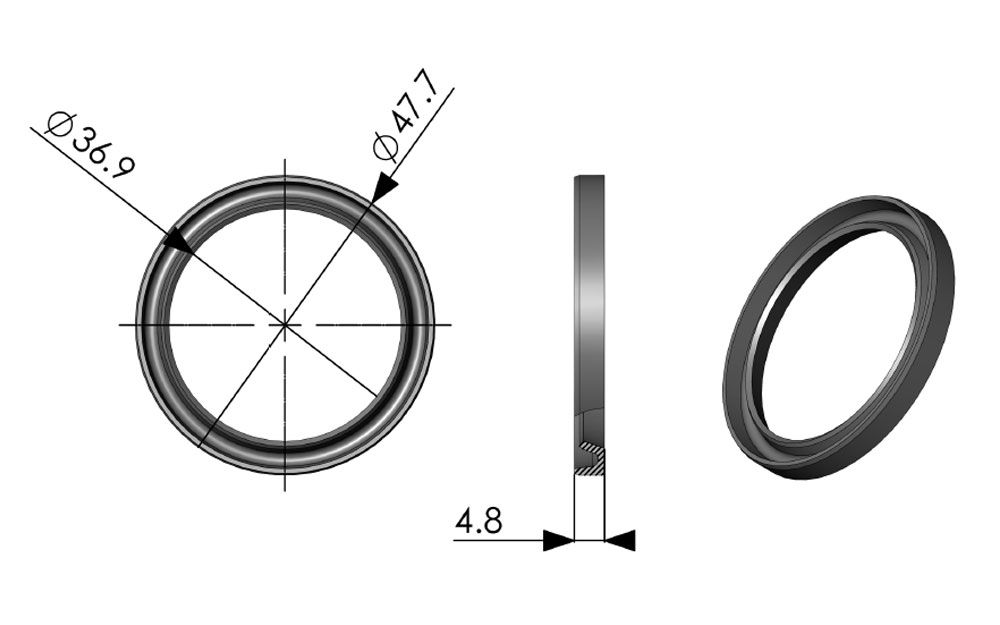

61056
Camshaft Grease Seal

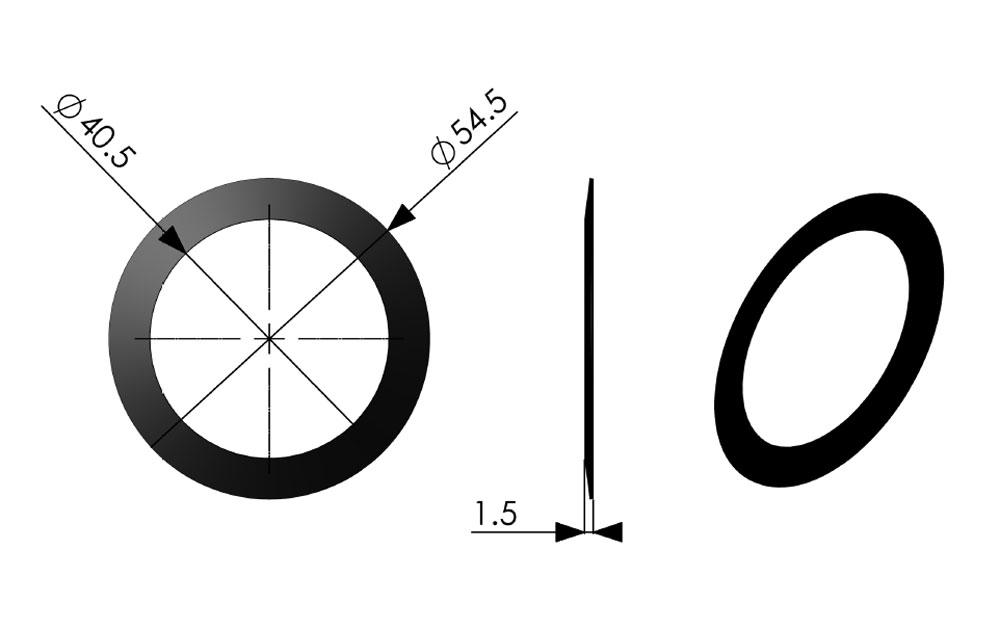

61057
Camshaft Beveled Washer

61055
Camshaft Sintered Bush

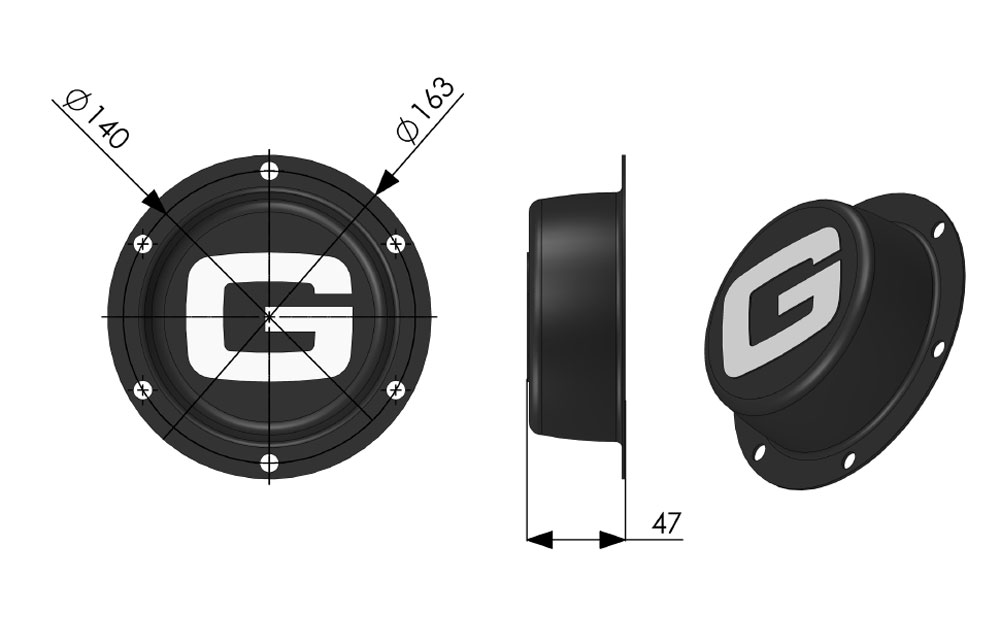

61322
G Hub Cap Pressing

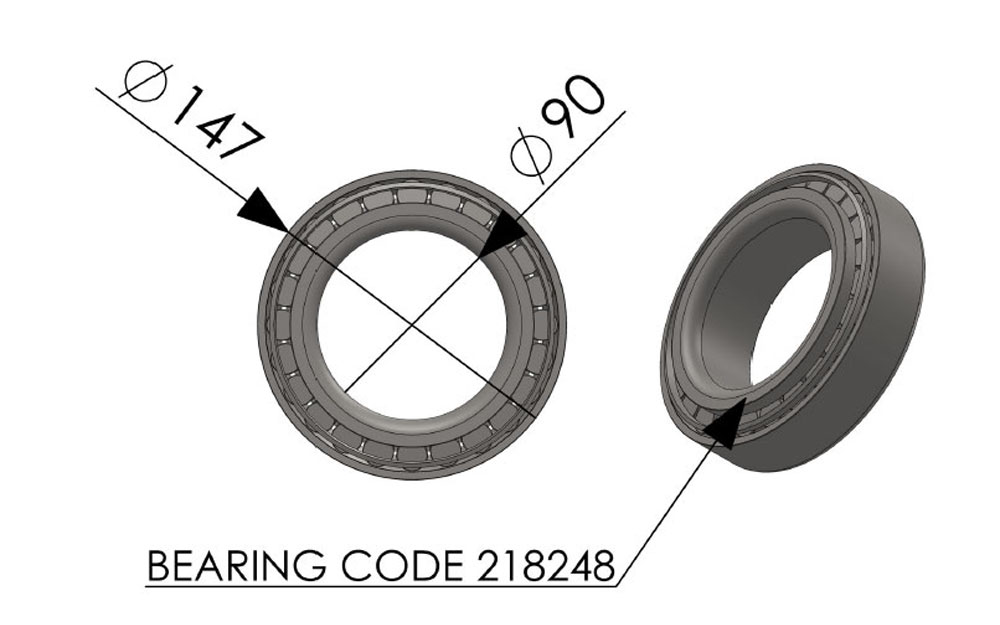

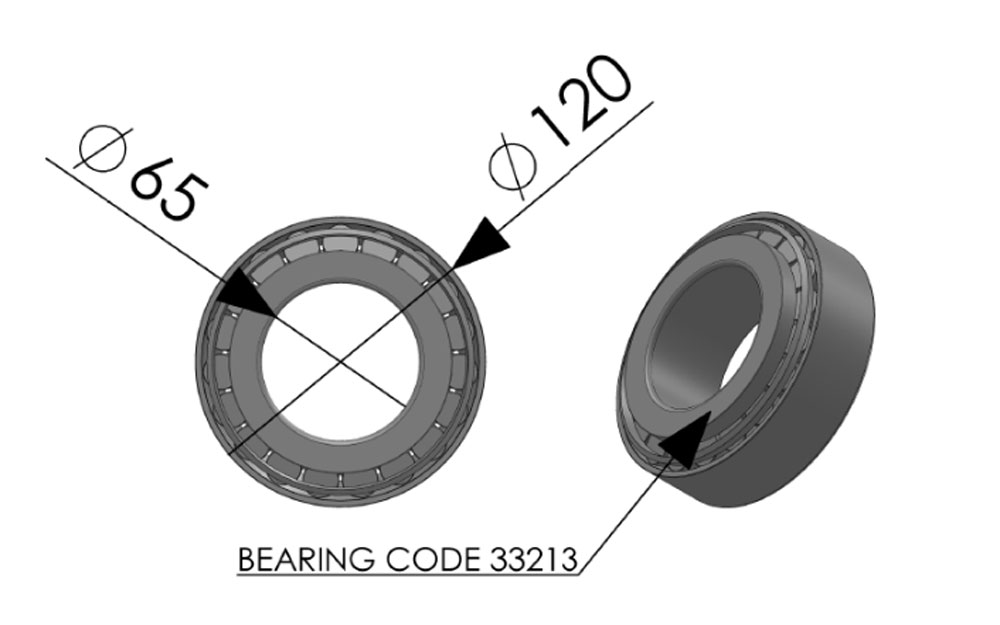

61260F
Inner bearing and cone

61270F
Outer bearing and cone

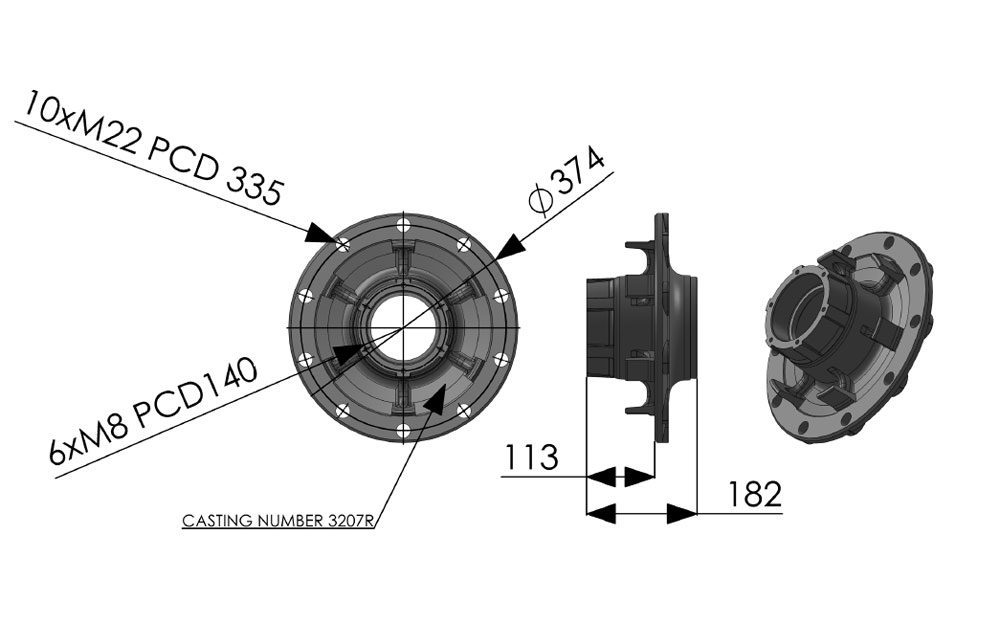

61253F
Wheel Hub

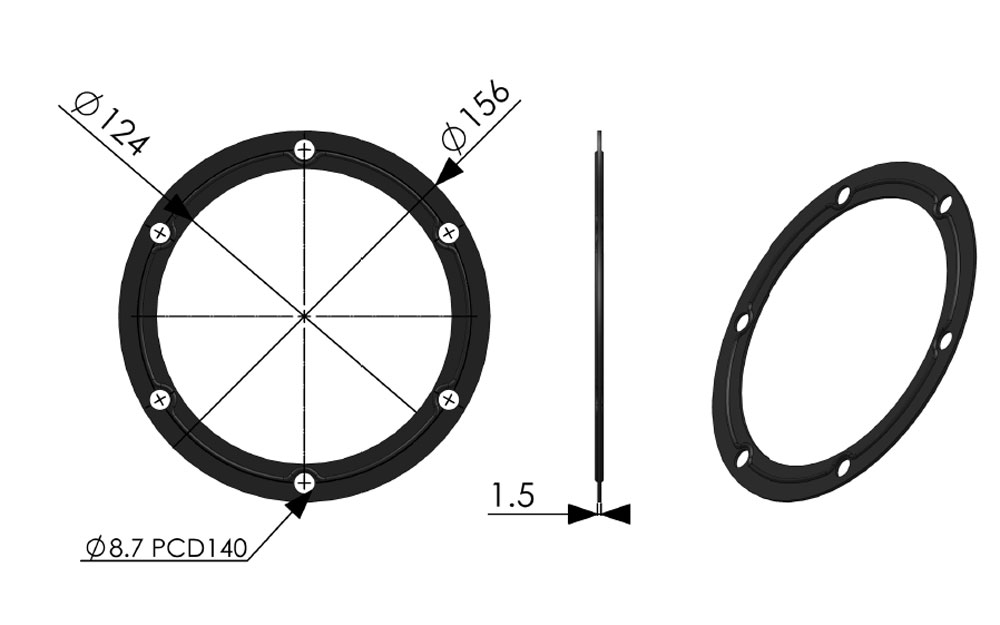

61330F
Gasket

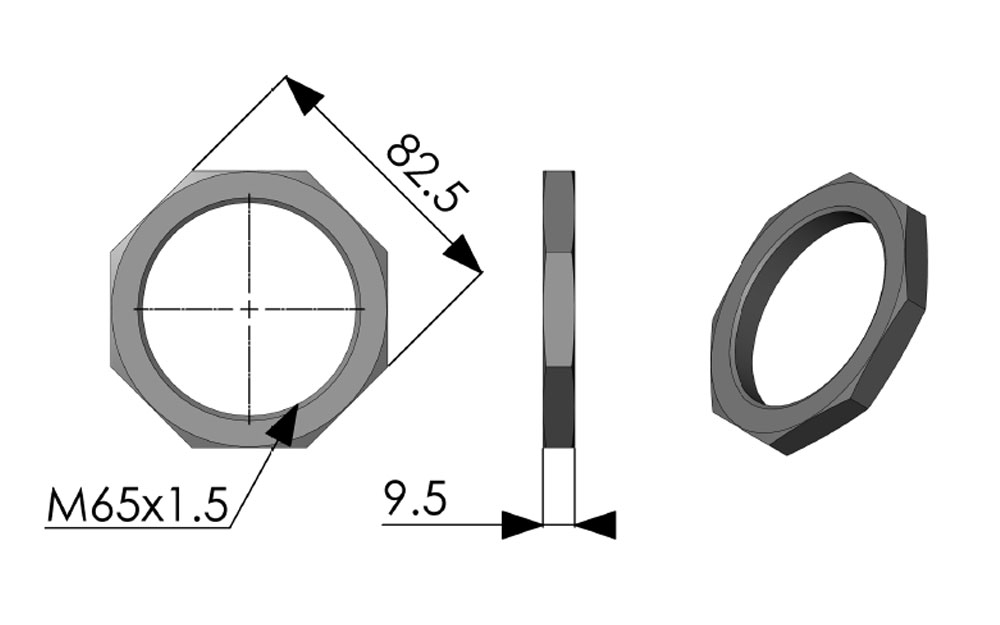

61310
Locknut

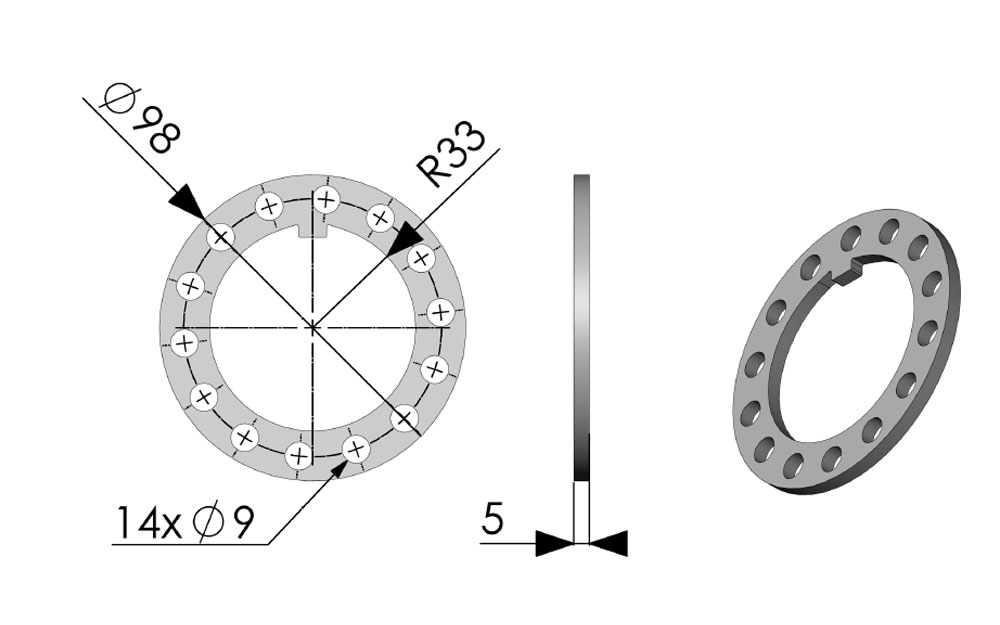

61300
Lock Washer

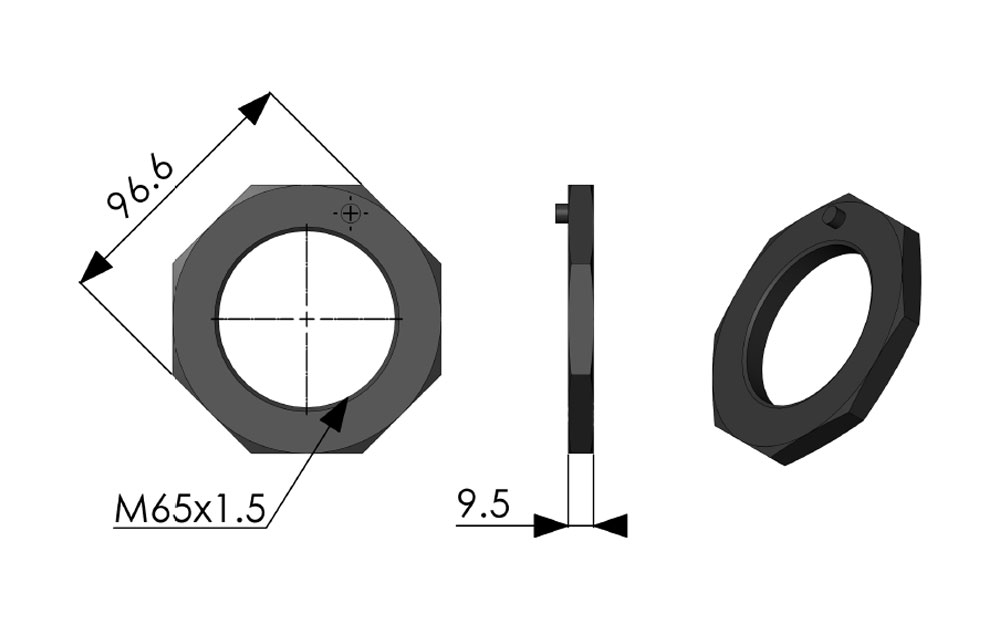

61290
Adjusting Nut

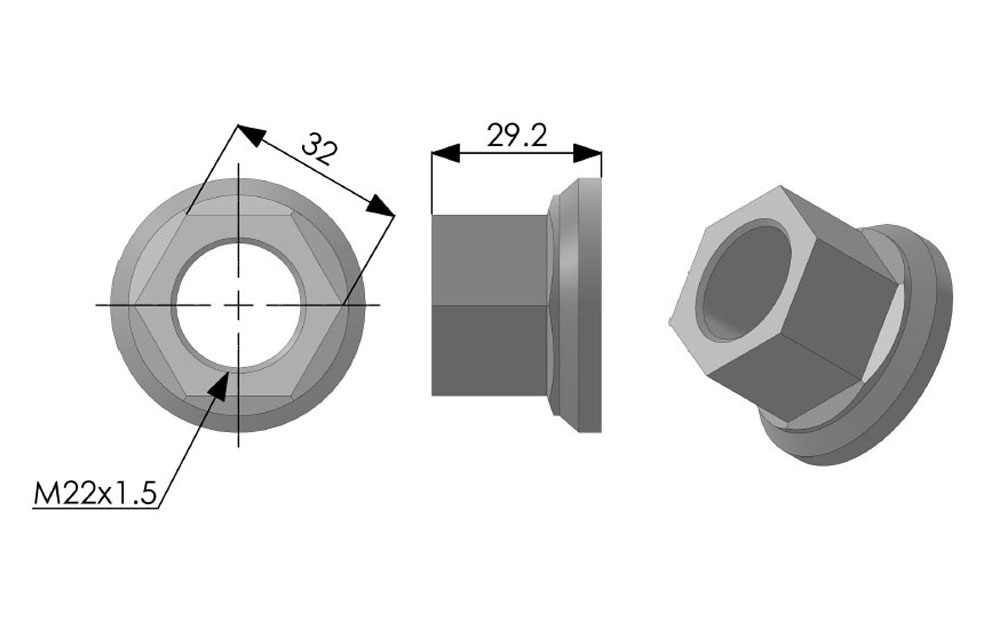

61381
M22 ISO Wheel Nut

61383

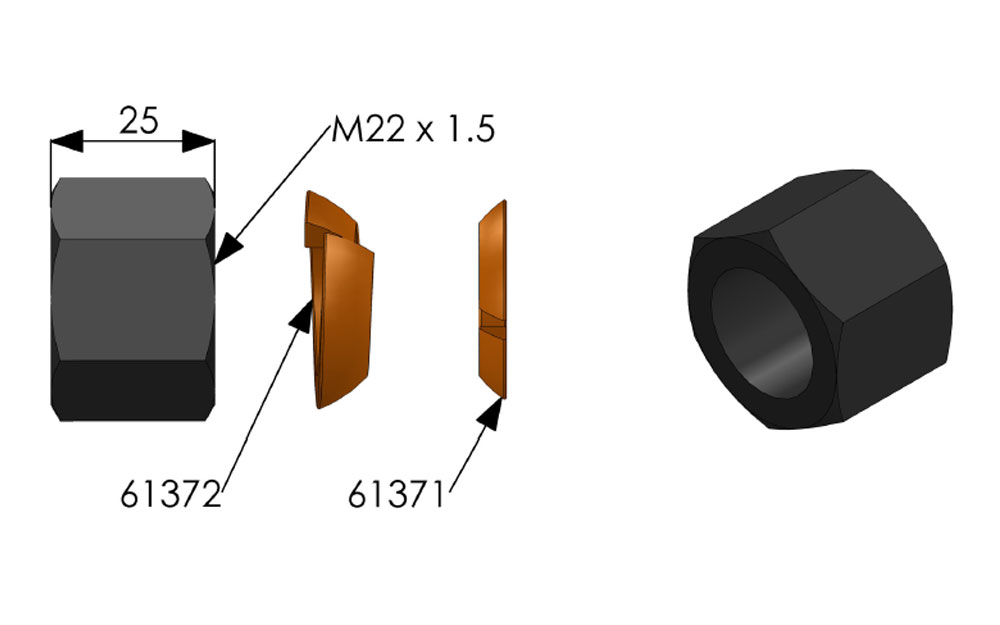

M22 DIN Wheel Nut + Washers (61372 & 61371)

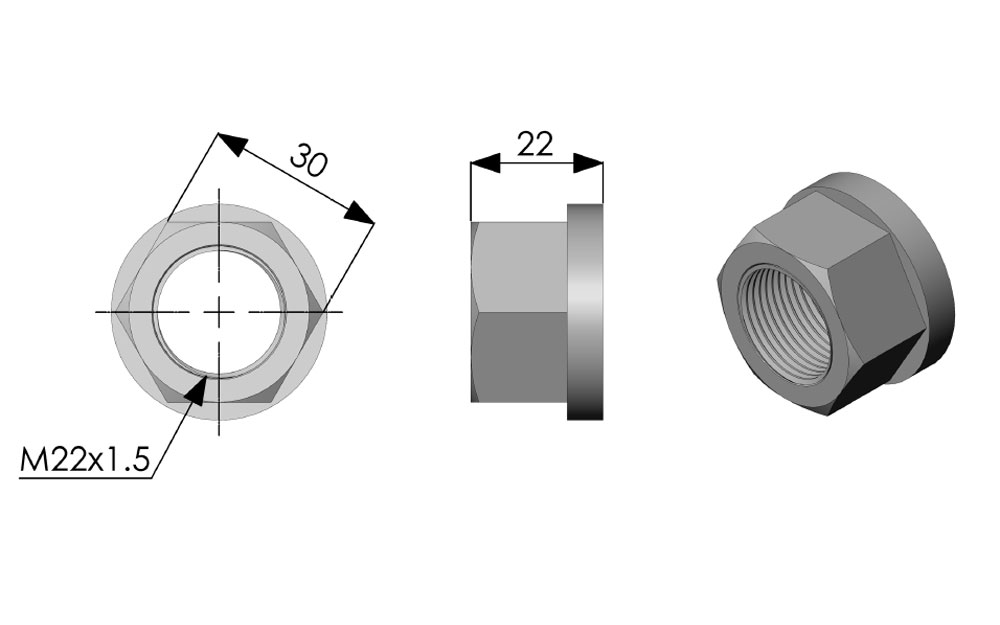

61411
M22 DIN Wheel Nut

61243F
Brake Drum

61386F / 61388F
Wheel Bolt

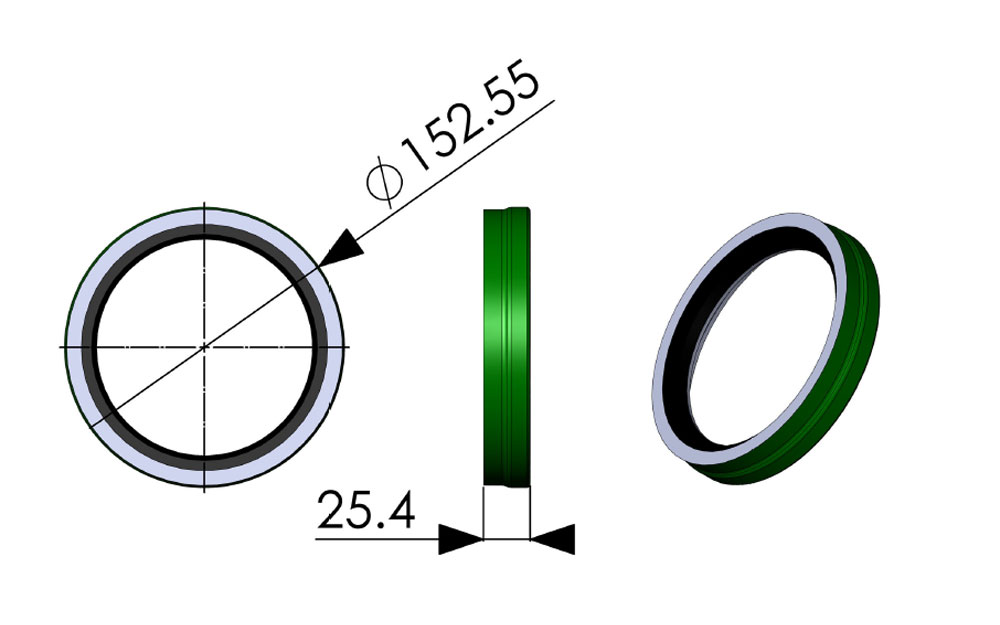

61282F
Unitised Grease Seal

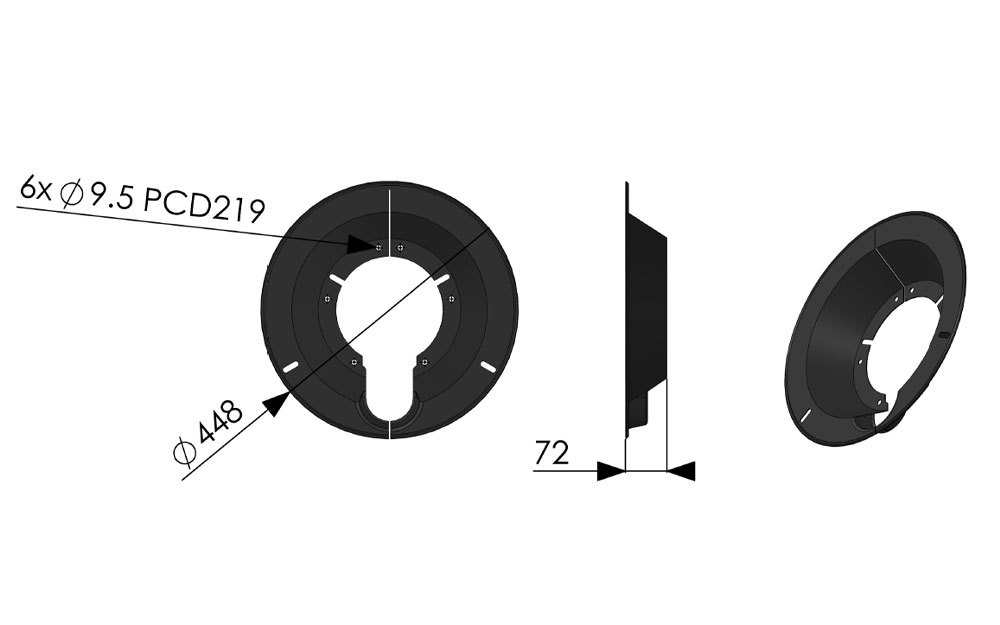

61390F
Dust Cover

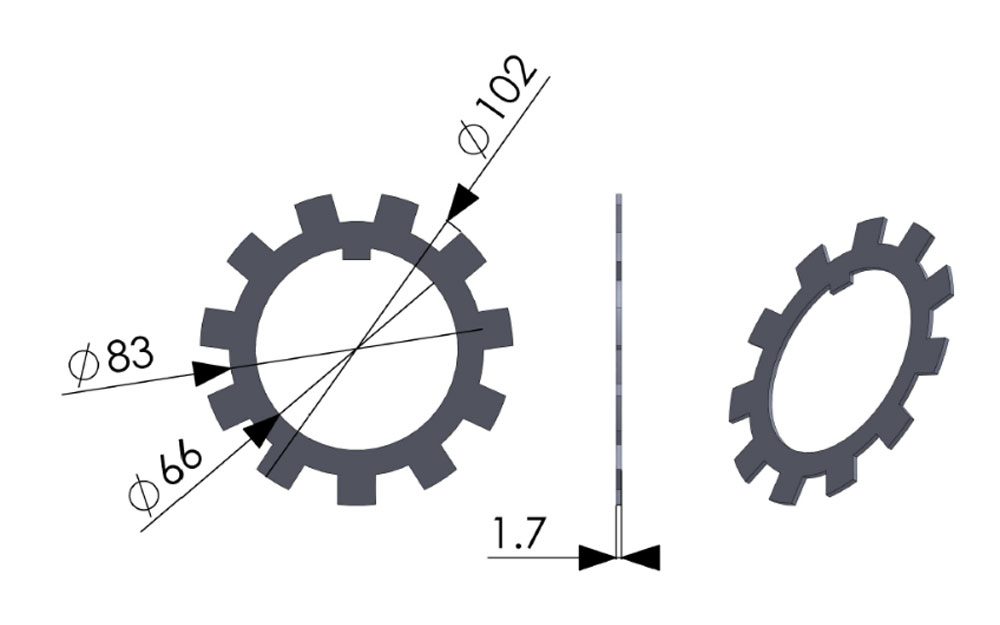

61311
Tab Washer

Position of seals in the anchor bracket

The direction of the grease seals in the anchor bracket is important as well as the position of the beveled washer between the anchor bracket and camshaft head.

Ordering Of Sub-Assemblies

It is possible to order sub-assemblies of parts from Granning rather than ordering individual parts.

Hub and Drum Assembly

71001 – Single Wheel Stud Hub and Drum Assembly
71001W – 71001 with 1x 100-tooth pole wheel 61789

Part No.	Description	QTY per Kit
61243F	Drum	1
61253F	Hub	1
61270F	Outer Bearing	1
61260F	Inner Bearing	1
61388F	Single wheel stud	10
61381Z	ISO wheel nut	10
61282F	Unitised grease seal	1

71004 – Twin Wheel Stud Hub and Drum Assembly
71004W – 71004 with 1 x 100 tooth pole wheel 61789

Part No.	Description	QTY per Kit
61243F	Drum	1
61253F	Hub	1
61270F	Outer bearing	1
61260F	Inner bearing	1
61386F	Twin wheel stud	10
61381Z	ISO wheel nut	10
61282F	Unitised grease seal	1

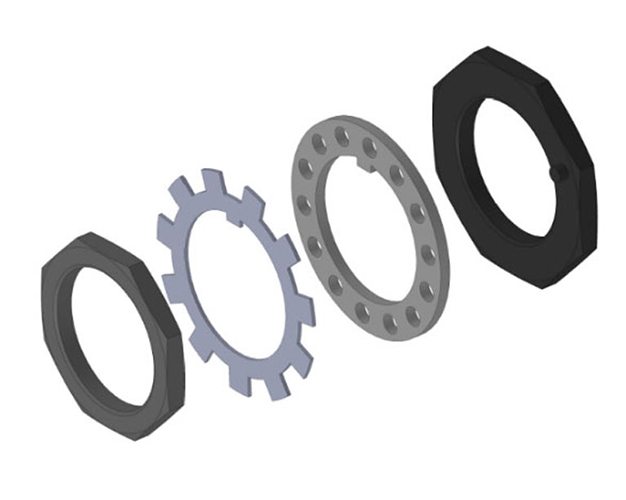

AK100 – Spindle Nut Kit

Part No.	Description	QTY per Kit
61310	Locknut	1
61311	Tab Washer	1
61300	Lock Washer	1
61290	Adjusting Washer	1

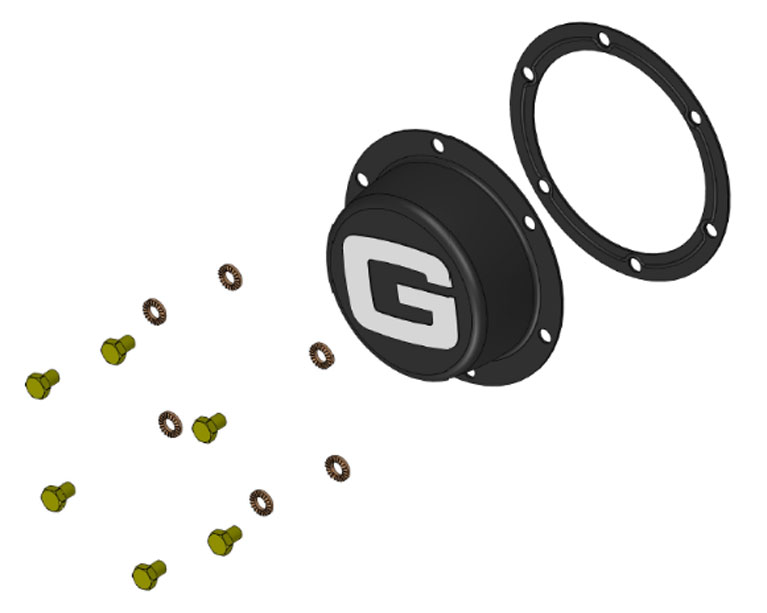

AK102 – Hubcap Kit

Part No.	Description	QTY per Kit
61322F	Hubcap	1
61330F	Hubcap Gasket	1
96366F	M8 Serrated Washer	12
61358F	Screw M8x16 Fl. Head	12

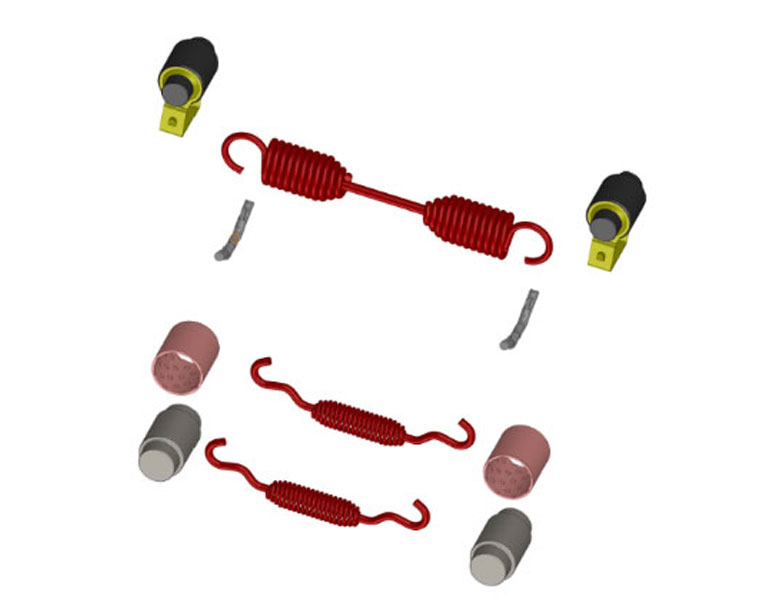

AK300 – Brake Shoe Kit (one side of axle)

Part No.	Description	QTY per Kit
61140	Return spring	1
61141	Brake shoe retaining spring	2
61150	Spring anchor bar	2
61235	One Piece Cam roller	2
61220	Retainer cam roller	2
61200B	Bush anchor pin	2
61171	Anchor pin	2

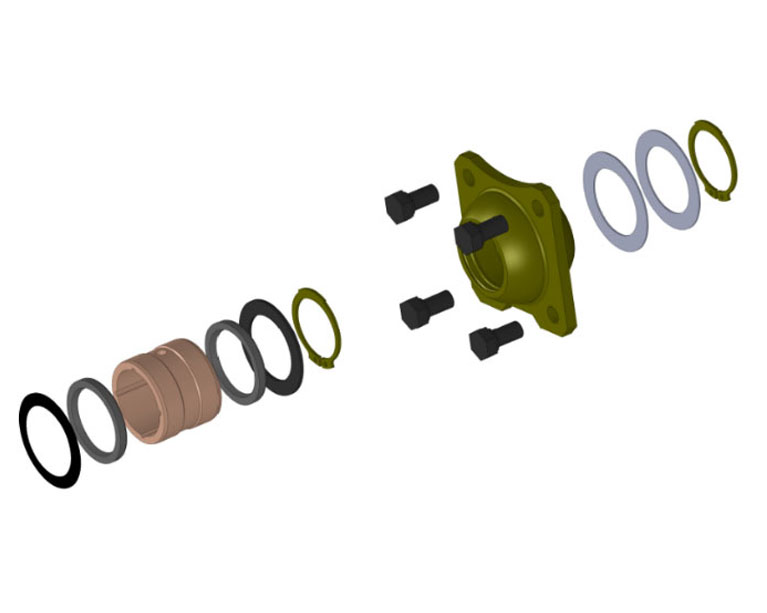

AK200 – Camshaft Bush Kit (one side of axle)

Part No.	Description	QTY per Kit
61080F	Spherical bearing	1
61055	Camshaft sintered bush	1
61056	Camshaft grease seal	2
61057	Beveled camshaft washer	1
61058	Camshaft washer	1
61120	Camshaft circlip	2
96365F	Camshaft support washer	2
61359	M8 Hex Bolt	4
96363F	Serrated Washer	4
96364F	Spring Washer	4

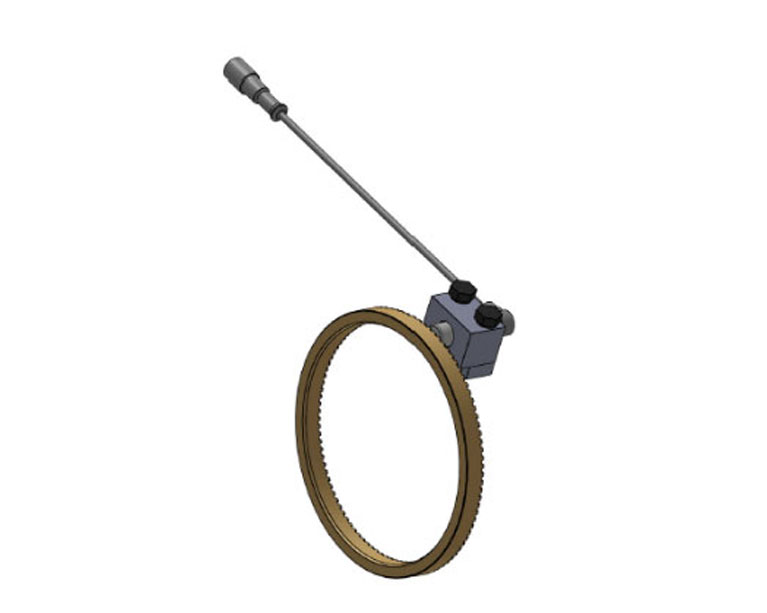

AK401 – ABS Kit (one side of axle)

Part No.	Description	QTY per Kit
61789	Pole Wheel (100 tooth)	1
61376F	Sensor Block	1
61786	90 Degree ABS Lead	1
61557	Dust Cover Grommet	1
