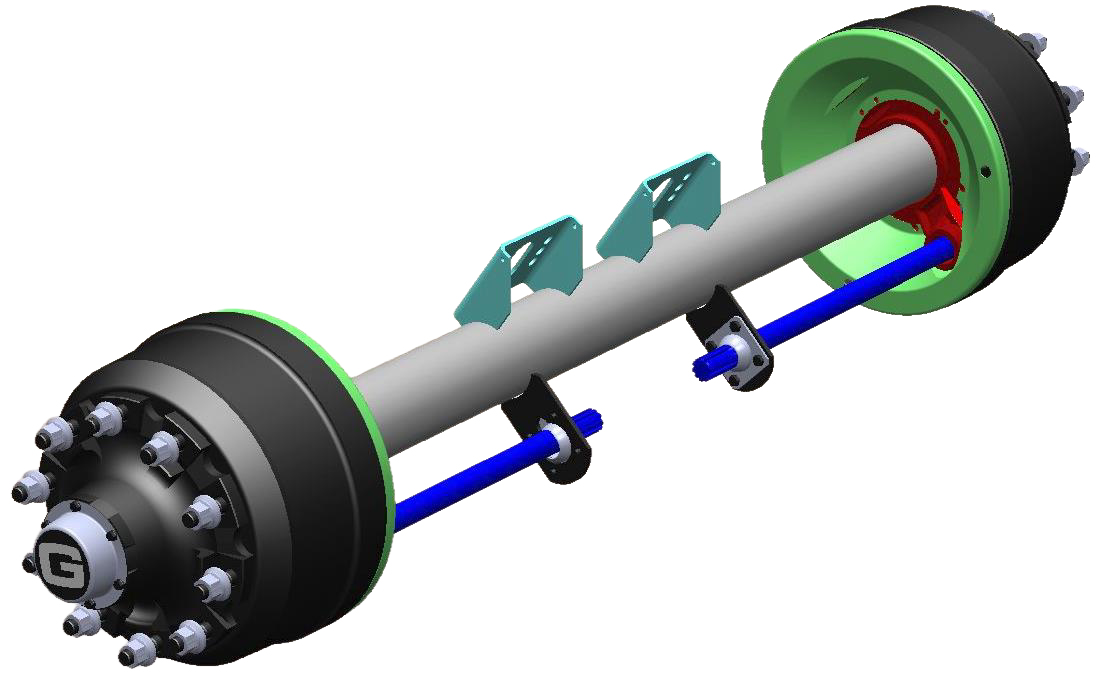

100 “G” Series Internal Drum Axle Spare Parts

Revision Date: November 2013
Part No. 80369 REV A

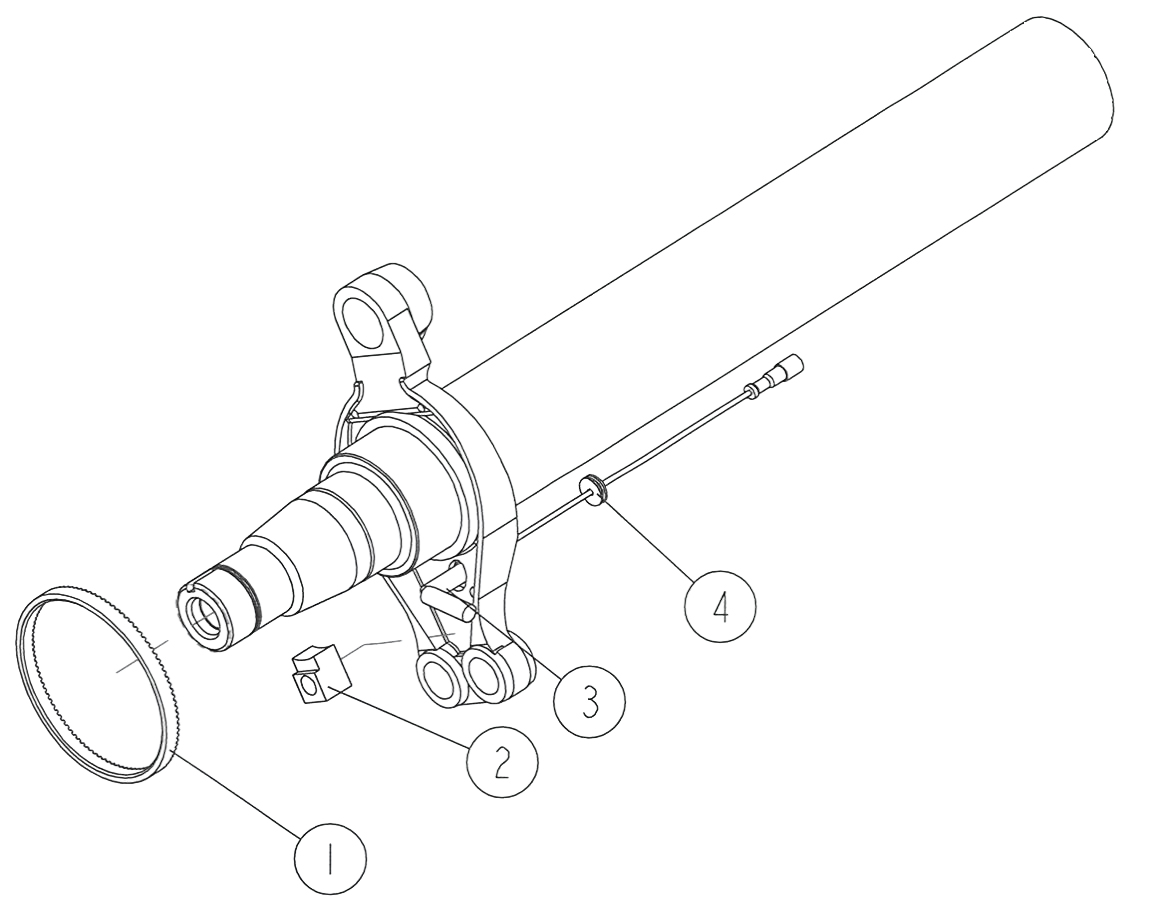

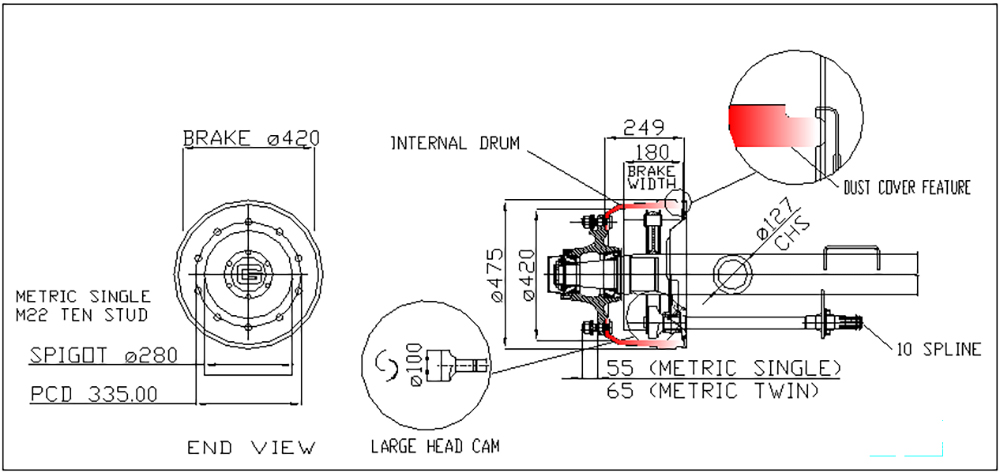

100 series axle is TUV tested to 11000Kg.

View / Download PDF

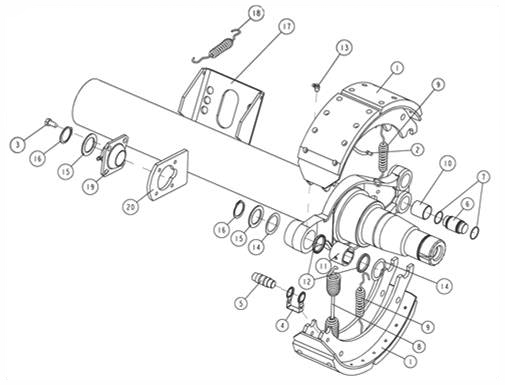

Item	Part No.	Description
1	61157F	Brake Shoe
2	61150	Spring Anchor Bar
3	61359	Screw M10 x 20 Fl. Head
4	61220	Retainer Cam Roller
5	61235	One Piece Cam Roller
6 & 7	61171	Anchor Pin with O-Ring
8	61140	Spring Return
9	61141	Brake Shoe Retaining Spring
10	61200	Bush Anchor Pin
11	61055	Bush Sintered Camshaft
12	61056	Seal Grease Camshaft
13	61110	Greaser
14	61057	Beveled Washer Camshaft
15	61058	Support Washer Camshaft
16	61120	Circlip
17	61041F	Air Chamber Bracket
18	61142	Pull Off Spring Slack Adjuster
19	61080	Bearing Spherical Camshaft
20	61050	Bracket Support Camshaft

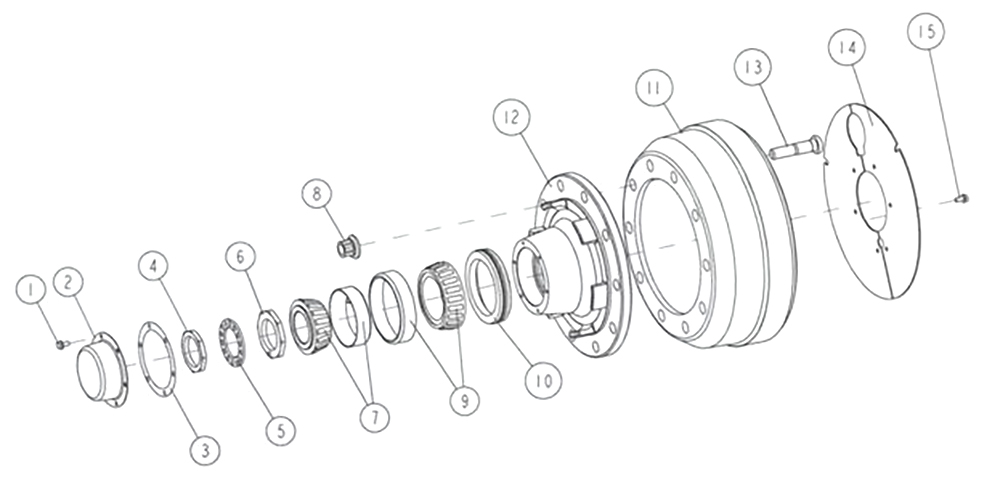

Item	Part No.	Description
1	61358	Screw M8 x 16 Fl. Head
2	61322F	Hub Cap Pressing "G"
3	61330F	Gasket
4	61310	Locknut
5	61300	Lock Washer
6	61290	Adjusting Nut
7	61270	Outer Bearing
8	61381	Wheel Nut M22 ISO
9	61260	Inner Bearing
10	61282	Seal Unitised Grease
11	61240	Brake Drum 10 Stud Internal
12	61250	Hub Spigot 10 Stud
13	61363	Wheel Bolt M22 ISO (Twin) Internal
	61361	Wheel Bolt M22 ISO (Single) Internal
14	61390	Dust Cover
15	61358	Screw M8 x 16 Fl. Head

Camshaft lengths are measured from under head to the center of last circlip groove.

The illustrated camshaft is a right-hand camshaft. When looking at the head of the camshaft a right-hand cam is Z shaped and a left hand is S shaped
