100 “A” Series Axle Spare Parts

Revision Date: November 2018
Part No. 80298 REV A

100 series axle is TUV tested to 11000Kg.

Available in single and twin wheel stud; 10 spline camshaft; Brake Size: 420mm x 180mm; 335mm PCD 10 stud; M22 hub and drum; 280.8mm hub pilot.

420 x 180mm – 100 A series external drum Bill of Materials
View / Download PDF

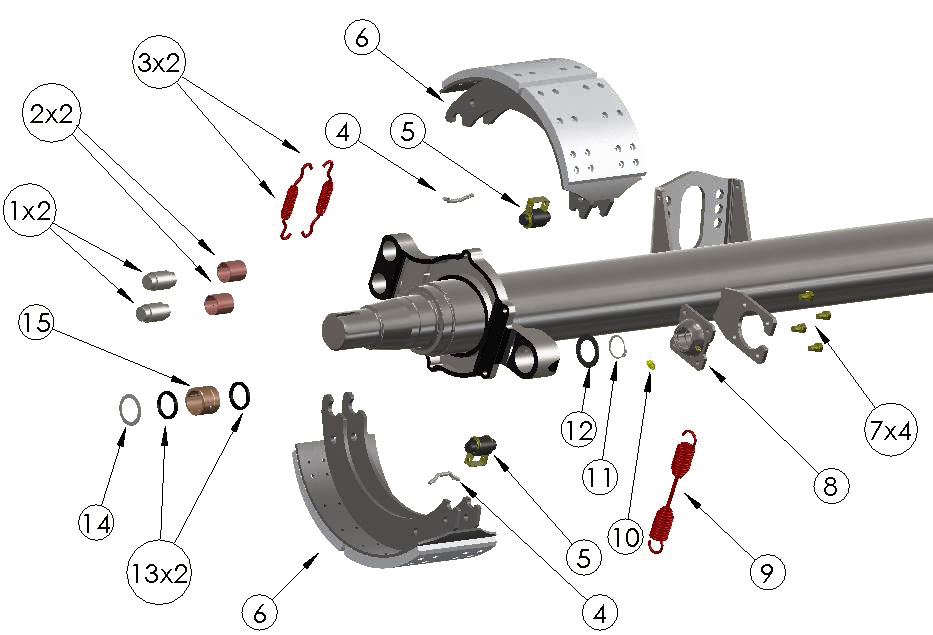

Quick Fit Brake Assembly

420 x 180 – 100 “A” Series Quick Fit Brake Assembly | Granning Axles & Suspensions
Item Part No. Description QTY per Axle
161171Anchor Pin4
261200BBush Anchor Pin4
361141Brake Shoe Retaining Spring4
61157GABrake Shoe Assembly4
(4)61150Spring Anchor Bar(4)
(5)61220Retainer Cam Roller(4)
61230Cam Roller(4)
61210Sleeve Cam Roller(4)
(6)61157GBrake Shoe (GLAT26-29)(4)
761359M10x 20 Screw8
861080Camshaft Spherical Bearing2
961140ASpring Return2
1061110Greaser 1/8 NPT 45°2
1161120Circlip2
1261058Support Washer Camshaft2
1361056Camshaft Grease Seal4
1461060Camshaft Flat Washer2
1561055Camshaft Sintered Bush2

Hub/Drum Assembly

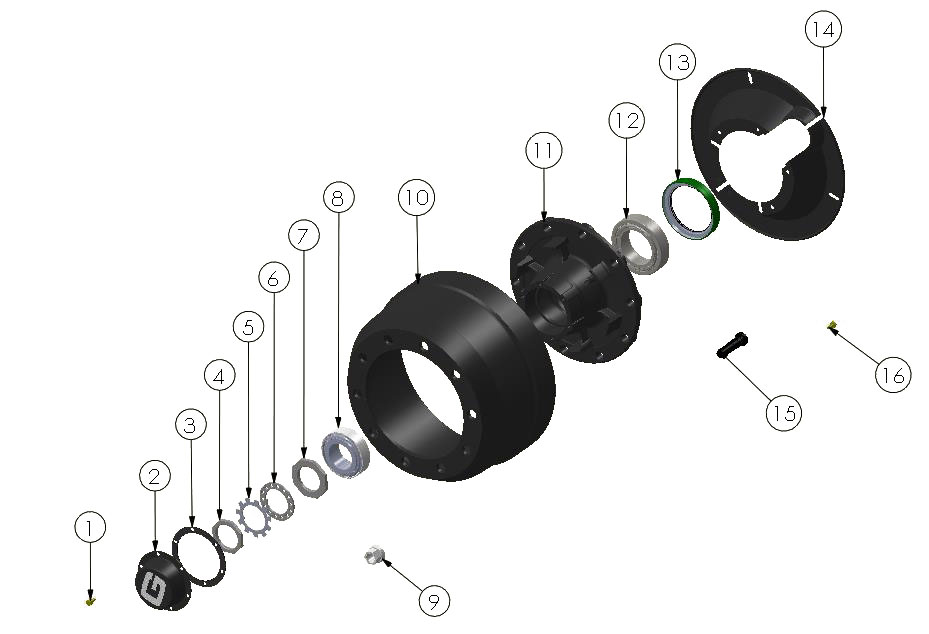

420 x 180 – 100 “A” Series Hub/Drum Assembly | Granning Axles & Suspensions
Item Part No. Description QTY per Axle
161358Screw M8 x 16 Fl. Head12
261322AHub Cap Pressing "G"2
361330AGasket2
461310Locknut2
561311Tab Washer2
661300Lock Washer2
761290Adjusting Nut2
861270FOuter Bearing2
961381ZISO Wheel Nut M2220
61383DIN Wheel Nut M2220
61411DIN Wheel Nut M2220
61372DIN Nut Outer Cone Washer20
61371DIN Nut Inner Cone Washer20
1061243FBrake Drum 10 Stud2
1161253Hub Spigot 10 Stud2
1261260FInner Bearing2
1361282AUnitised Grease Seal2
1461390FDust Cover2
1561386FWheel Bolt M22 ISO (Twin)20
61388Wheel Bolt M22 ISO (Single)20
1661358Screw M8 x 16 Fl. Head12

ABS/Anti-Lock Assembly

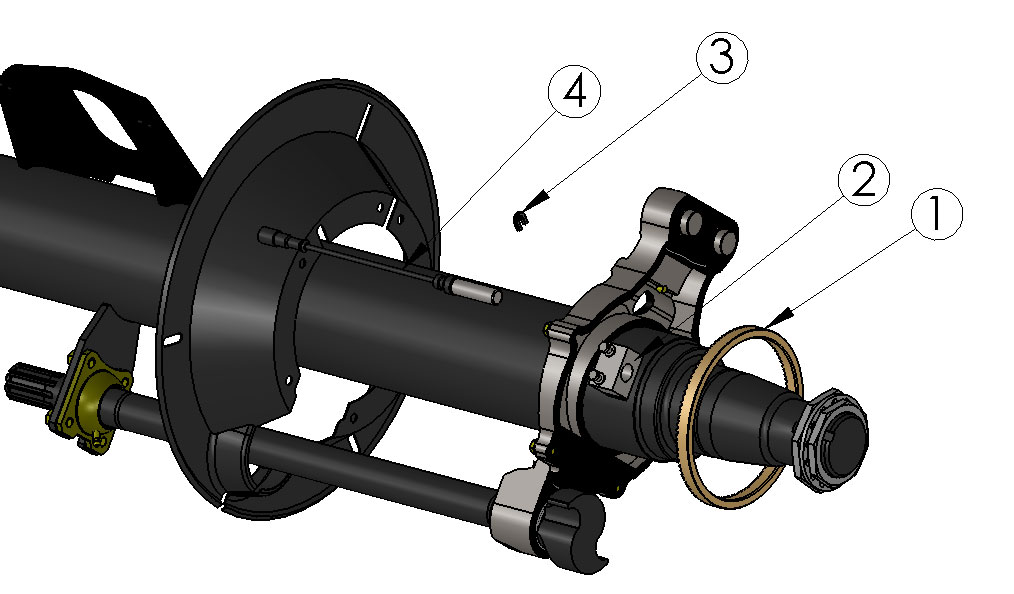

420 x 180 – 100 “A” Series ABS/Anti-Lock Assembly | Granning Axles & Suspensions
Item Part No. Description
161789Pole Wheel
261781Sensor Block
361557Dust Cover Grommet
461791Straight Sensor Lead & Bush

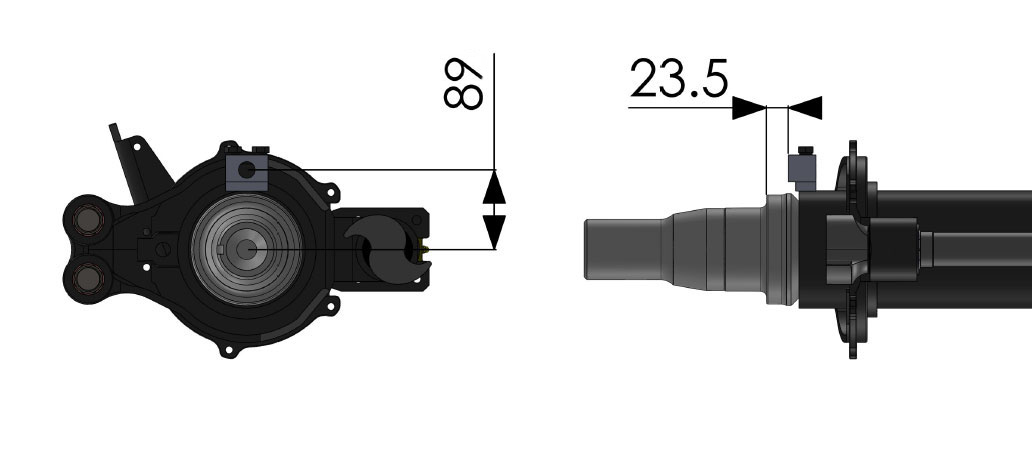

420 x 180 – 100 “A” Series ABS/Anti-Lock Assembly | Granning Axles & Suspensions

Pole wheel at 178mm PCD
Face of sensor block 23.5mm from large bearing shoulder
Bolt on ABS block (as shown above) is positioned 90 degrees to camshaft. Weld on style is 180 degrees to camshaft and is in line with hole in anchor bracket.

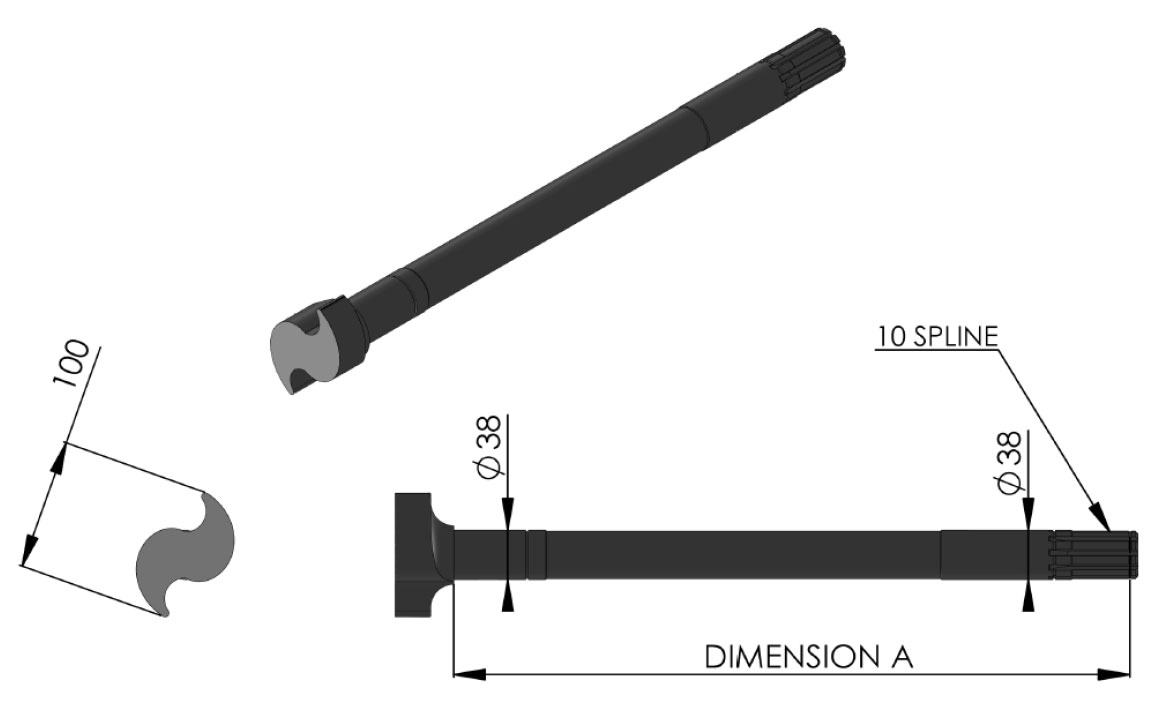

Camshafts

Camshaft lengths are measured from under head to the center of last circlip groove.

The illustrated camshaft is a right-hand camshaft. When looking at the head of the camshaft a right-hand cam is Z shaped and a left hand is S shaped

420 x 180 – 100 “F” Series Camshaft Parts List | Granning Axles & Suspensions
Part No. Description (DIM A)
61127Left Hand Large Head (189mm)
61147Right Hand Large Head (189mm)
61061Left Hand Large Head (212mm)
61071Right Hand Large Head (212mm)
61138Left Hand Large Head (250mm)
61148Right Hand Large Head (250mm)
61065Left Hand Large Head (519mm)
61075Right Hand Large Head (519mm)
61067Left Hand Large Head (618mm)
61077Right Hand Large Head (618mm)

Loose Parts

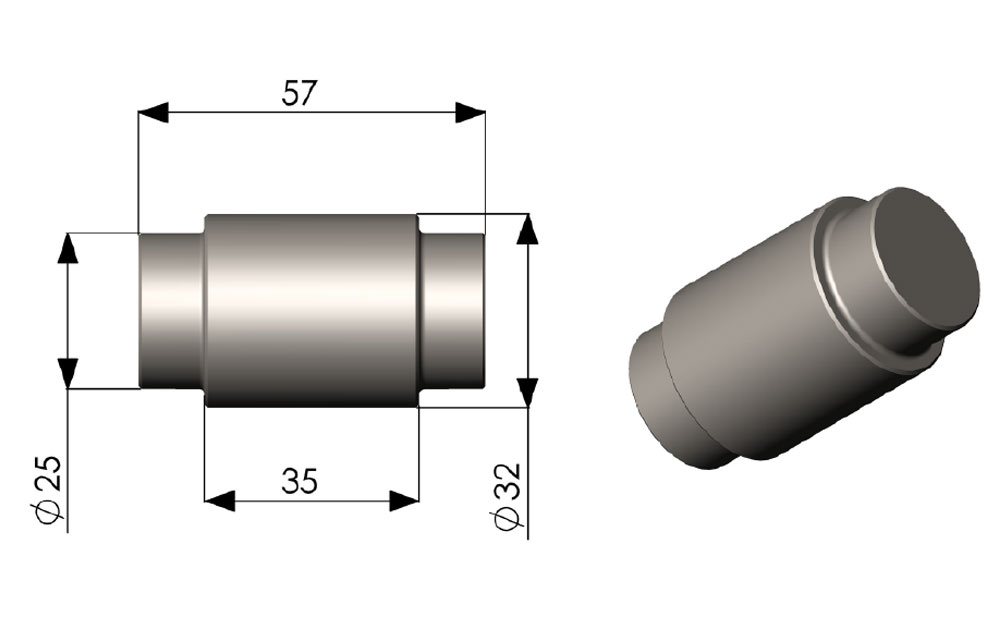

61171 – Anchor pin

61171
Anchor pin

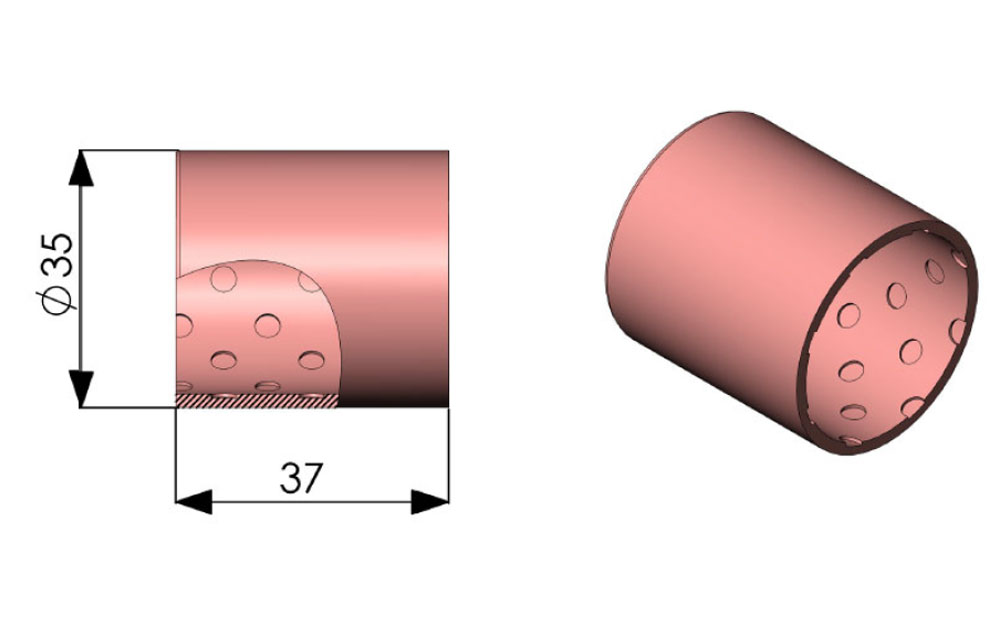

61200B – Bush Anchor Pin

61200B
Bush Anchor Pin

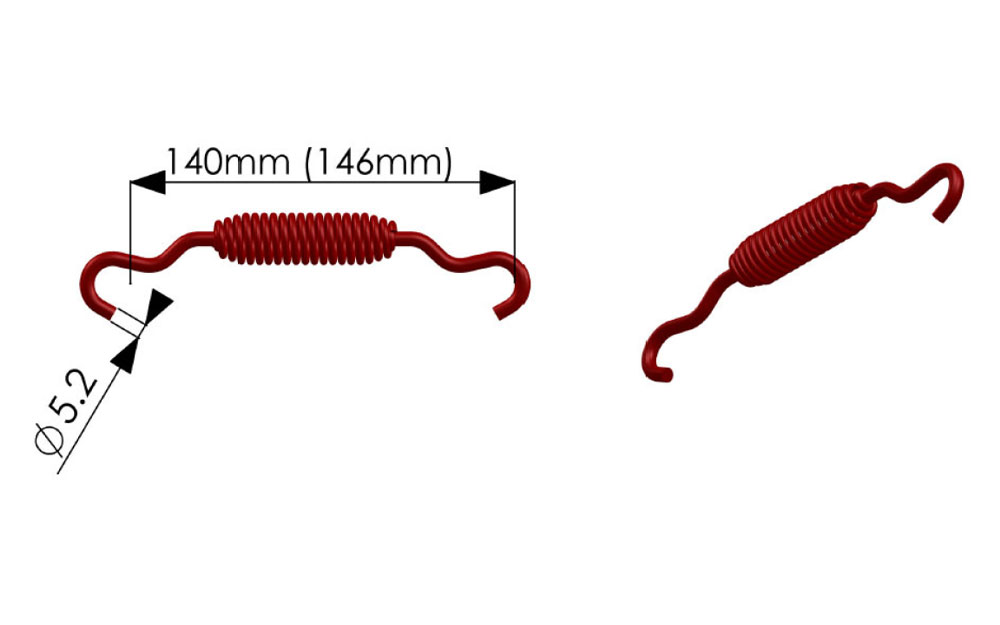

61141 – Brake Shoe Retaining Spring

61141
Brake Shoe Retaining Spring

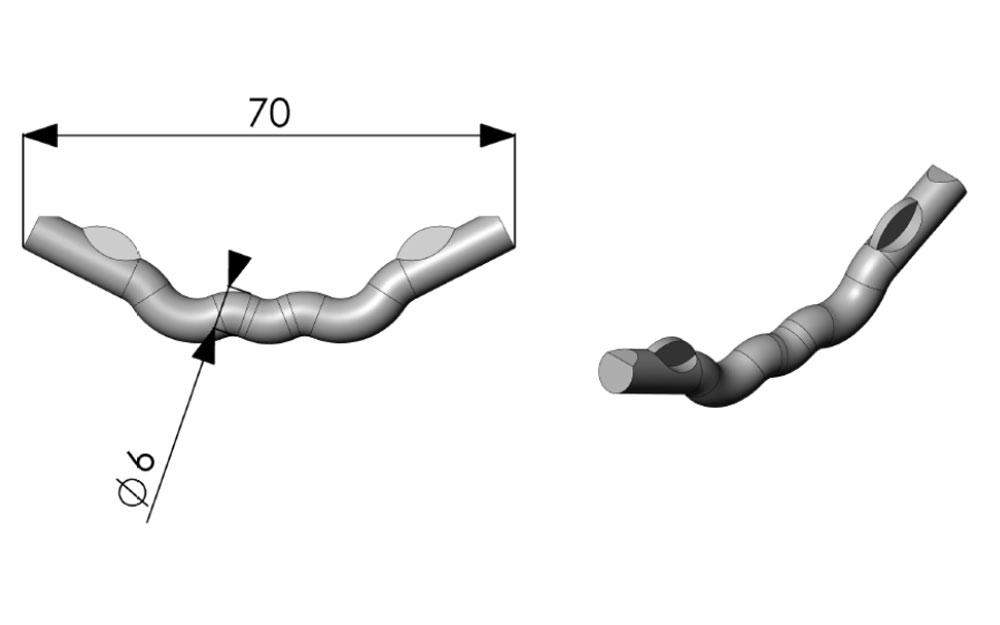

61150 – Spring Anchor Bar

61150
Spring Anchor Bar

61220 – Retainer Cam Roller

61220
Retainer Cam Roller

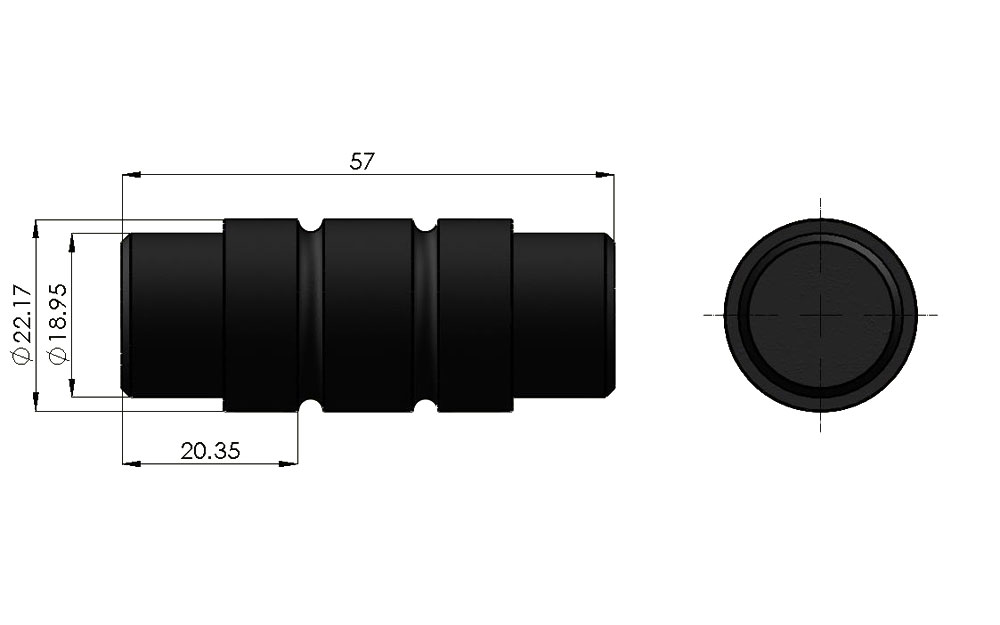

61230 – Cam Roller

61230
Cam Roller

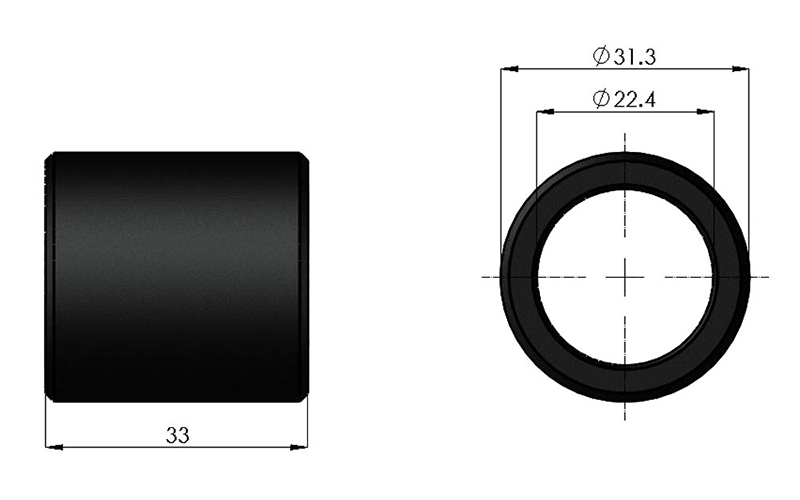

61210 – Sleeve Cam Roller

61210
Sleeve Cam Roller

61157FA – Brake shoe with spring anchor bar and cam roller (FWE11)

61157GA
Brake shoe (GLAT26-29)

61080F – Camshaft Spherical Bearing

61080
Camshaft Spherical Bearing

61140 – Spring Return

61140A
Spring Return

61120 – Circlip

61120
Circlip

61058 – Camshaft Support Washer

61058
Camshaft Support Washer

61056
Camshaft Grease Seal

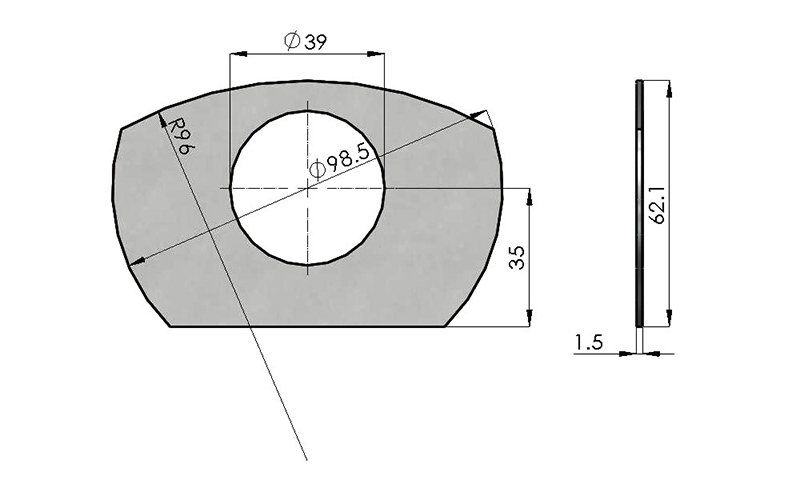

61060 - Camshaft Flat Washer

61060
Camshaft Flat Washer

61055 – Camshaft Sintered Bush

61055
Camshaft Sintered Bush

61322 – G Hub Cap Pressing

61322A
G Hub Cap Pressing

61260F – Inner bearing and cone

61260F
Inner bearing and cone

61270F – Outer bearing and cone

61270F
Outer bearing and cone

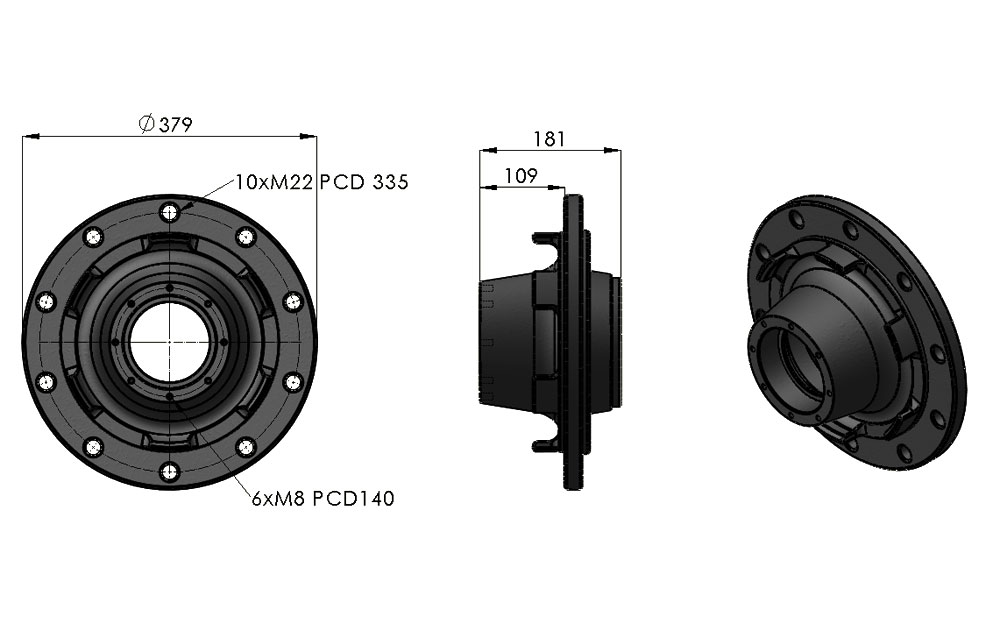

61253 – Wheel Hub

61253
Wheel Hub

61330F – Gasket

61330A
Gasket

61310 – Locknut

61310
Locknut

61300 – Lock Washer

61300
Lock Washer

61290 – Adjusting Nut

61290
Adjusting Nut

61381 – M22 ISO Wheel Nut

61381Z
M22 ISO Wheel Nut

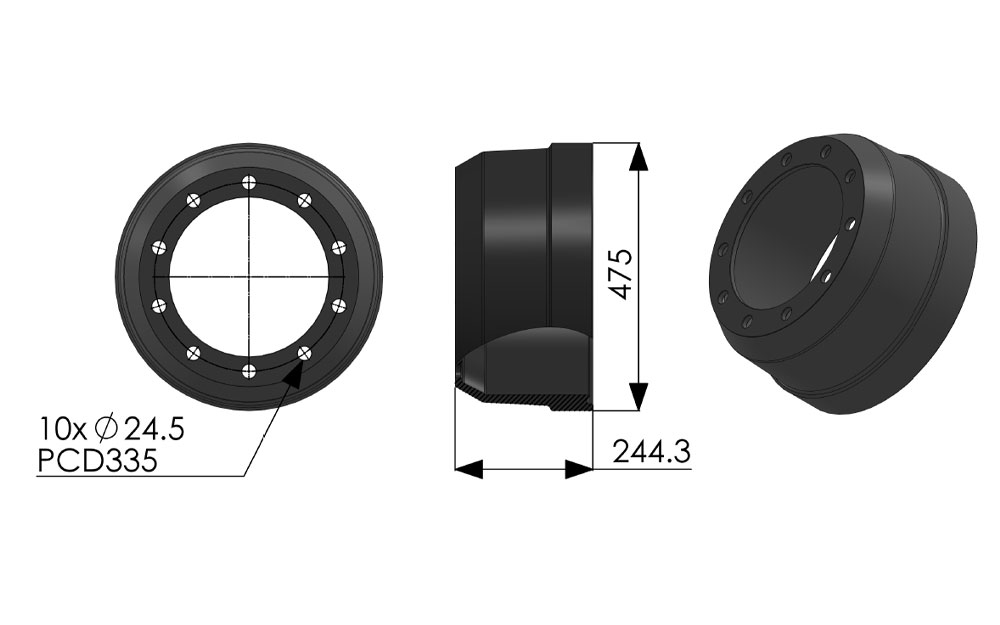

61243F – Brake Drum

61243F
Brake Drum

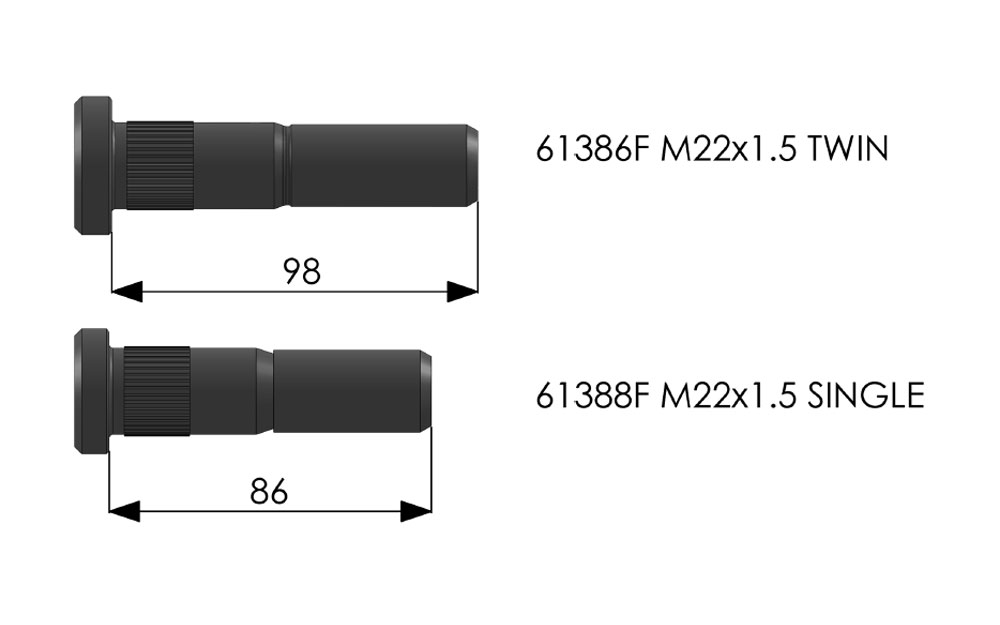

61386F & 61388F Wheel Bolt

61386F / 61388F
Wheel Bolt

61282F – Unitised Grease Seal

61282F
Unitised Grease Seal

61390F – Dust Cover

61390F
Dust Cover

61311 – Tab Washer

61311
Tab Washer

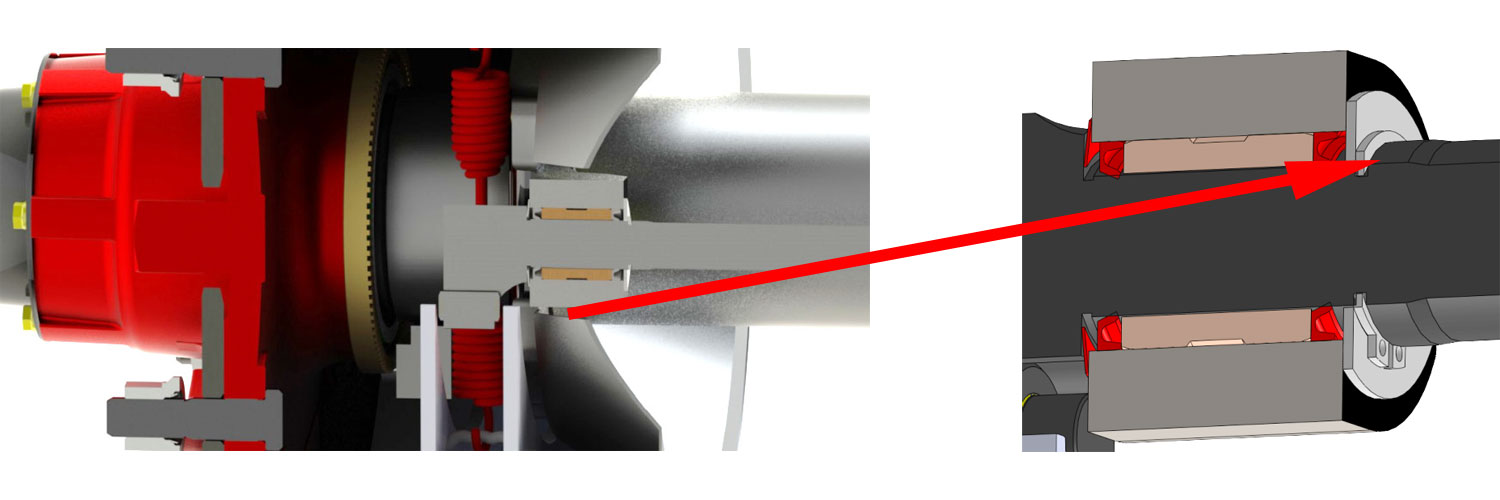

Position of seals in the anchor bracket

Position of seals in the anchor bracket

The direction of the grease seals in the anchor bracket is important as well as the position of the beveled washer between the anchor bracket and camshaft head.

Ordering Of Sub-Assemblies

It is possible to order sub-assemblies of parts from Granning rather than ordering individual parts.

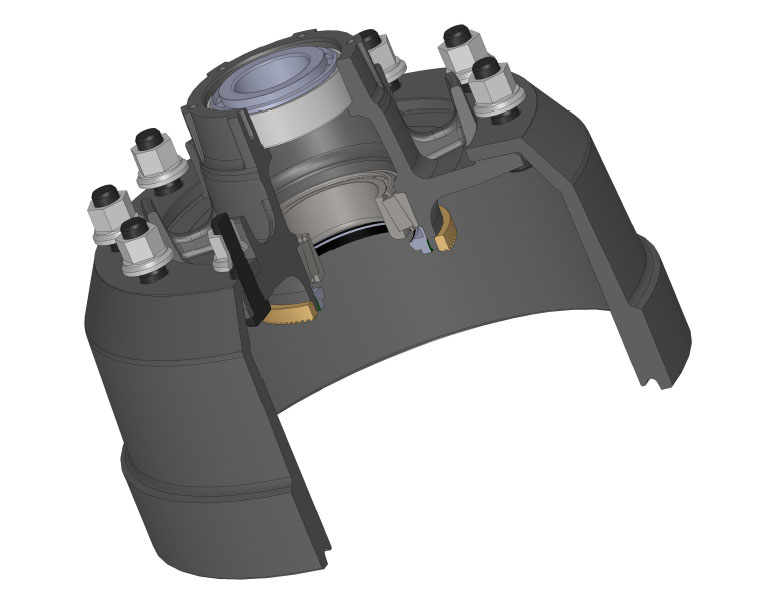

Hub and Drum Assembly

Hub and Drum Assembly

71001A – Single Wheel Stud Hub and Drum Assembly
71001AW – 71001A with 1x 100-tooth pole wheel 61789

Part No. Description QTY per Kit
61243FDrum1
61253FHub1
61270FOuter Bearing1
61260FInner Bearing1
61388FSingle wheel stud10
61381ZISO wheel nut10

71004A – Twin Wheel Stud Hub and Drum Assembly
71004AW – 71004A with 1x 100-tooth pole wheel 61789

Part No. Description QTY per Kit
61243FDrum1
61253FHub1
61270FOuter bearing1
61260FInner bearing1
61386FTwin wheel stud10
61381ZISO wheel nut10

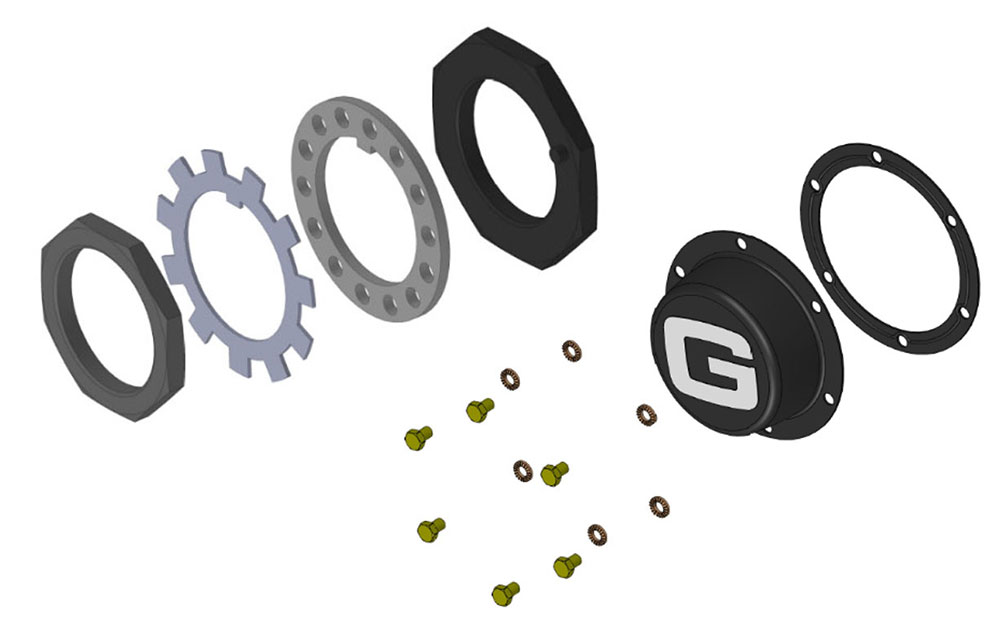

HCL-A – Hub Cap and spindle nut assembly

HCL-A – Hub Cap and spindle nut assembly
Part No. Description QTY per Axle
61330AGasket2
61322AHub cap - Silver2
61351M8 bolts12
61310Lock nut2
61300Lock washer2
61311Tab washer2
61290Adjusting nut2
61353M8 spring washer12
