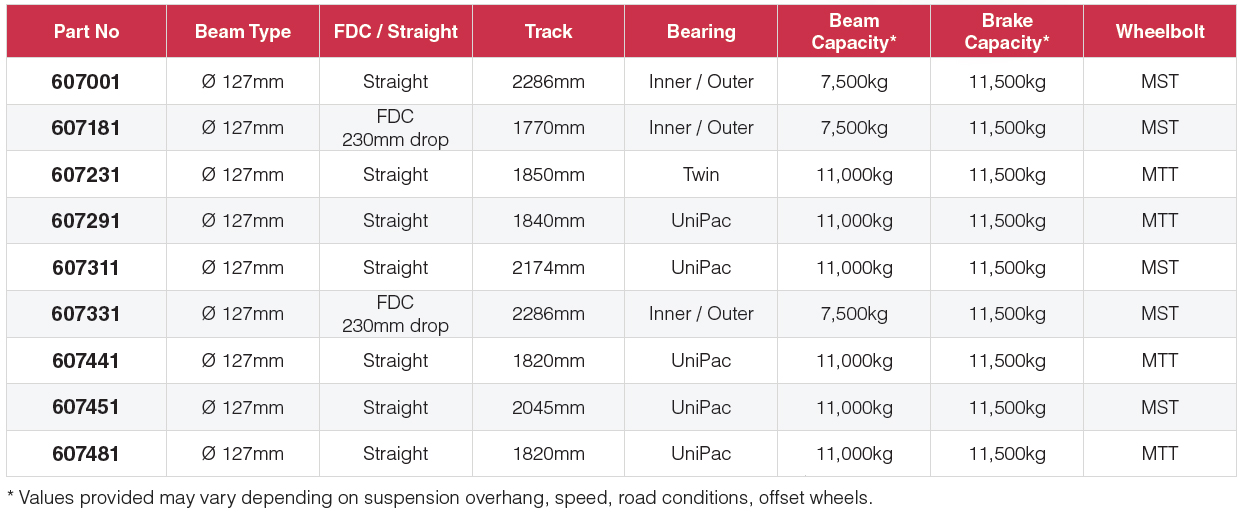

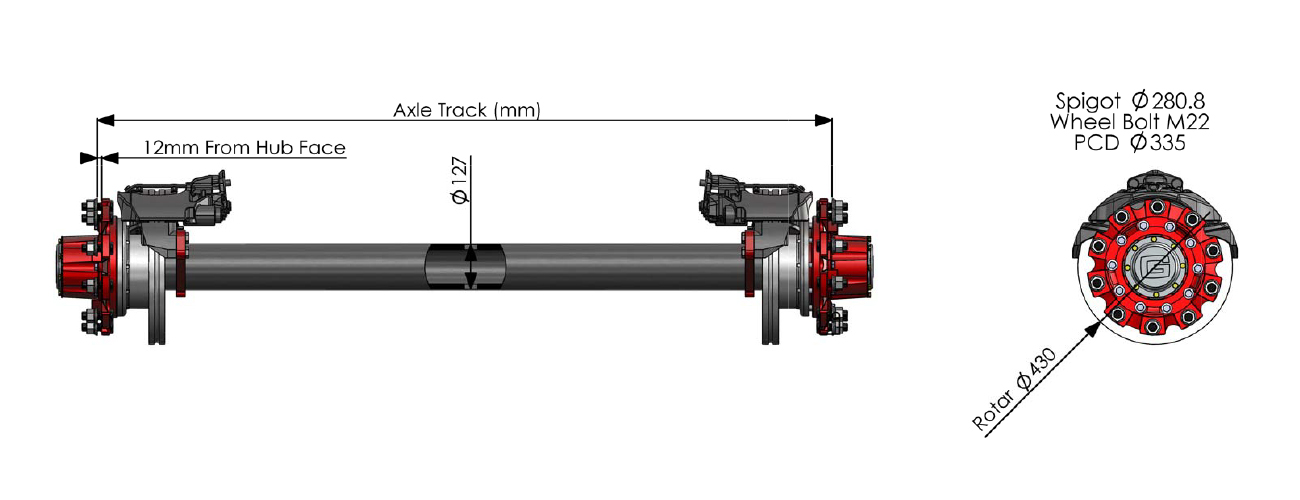

Disc Brake Axles 7000 series – ⌀430mm

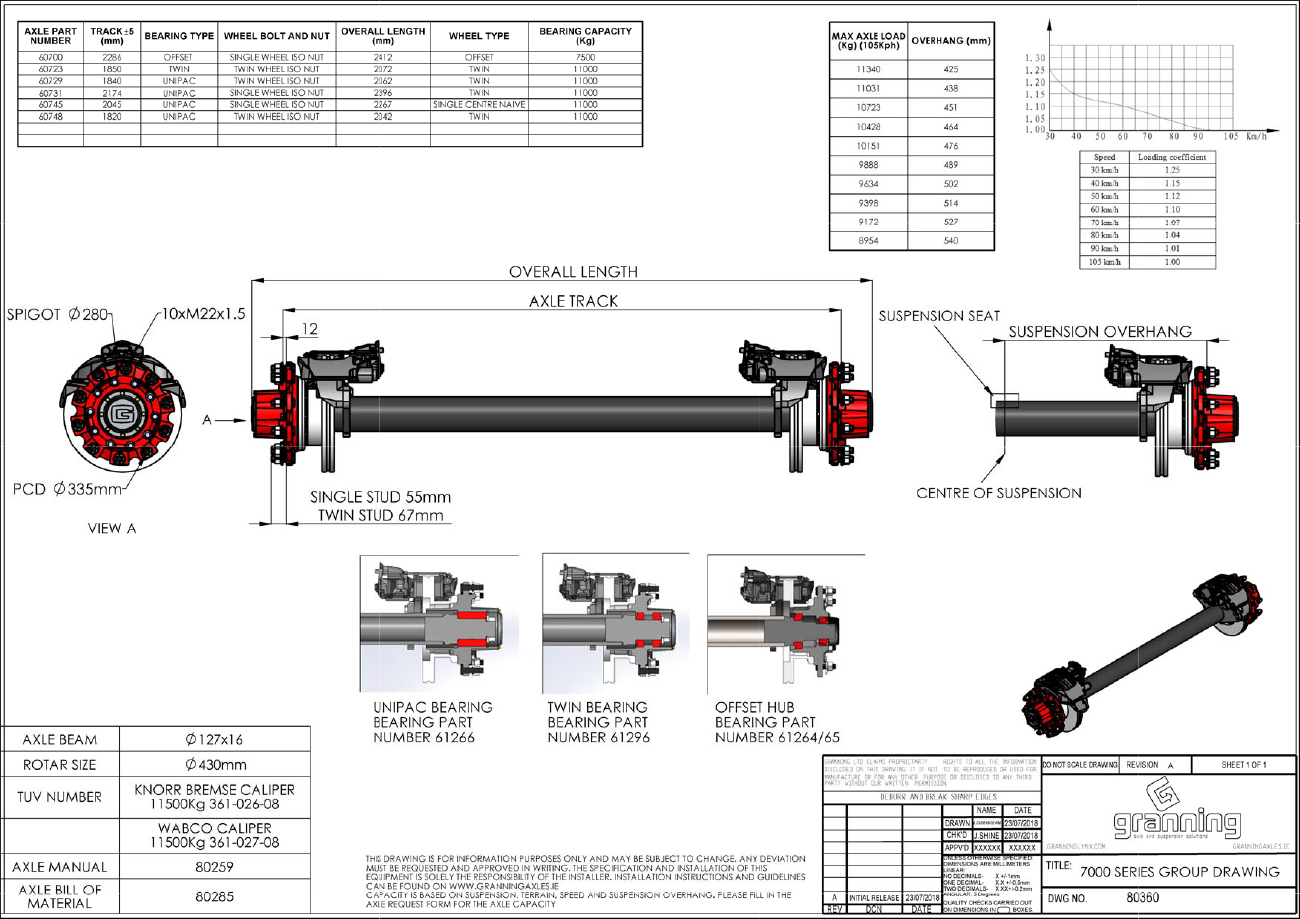

80360 Disc Brake - Sheet1

WHY BUY FROM GRANNING AXLES

  • In house production facilities

  • Bespoke Axle solutions

  • All products built to ISO 9001 2015 standards

  • Customer configurable building process

Disc Brake – 7000 series overview

  • 7000 Series axle is a commercial spec axle.
  • Offset hub option available.
  • Commonly used for additional truck axle.
  • Wide range of set ups available on mechanical and air suspensions.
  • ABS axle versions available.
  • Wide range of tracks and wheel bolts available.
  • Commonly used with 385 65 R22.5, 11R tyres.
  • 3D axle models on request
