400 series Offset Axle Spare Parts

Revision Date: September 2023
Part No. 80297 REV A

400 series axle is TUV tested to 11000Kg.

Available in single wheel stud; 10 spline camshaft; Brake Size: 310mm x 190mm; 225mm PCD 10 stud M22 hub and drum; 176mm hub pilot.

310 x 190mm – 400 series straight axle beam Bill of Materials
View / Download PDF

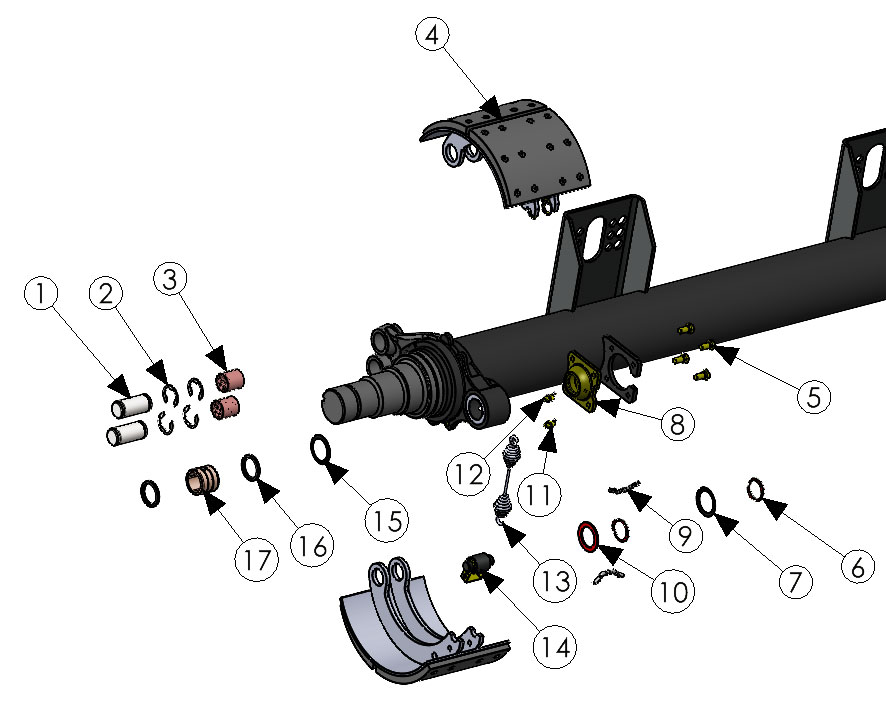

Quick Fit Brake Assembly

310x190 – 400 Series Offset Quick Fit Brake Assembly | Granning Axles & Suspensions
ItemPart No.DescriptionQTY per Axle
161170Anchor Pin4
261460“E” Clips8
361200BBush Anchor Pin Bronze4
4 Brake Shoe Assembly (FWE11)
61540Standard fit brake shoe(4)
61778FWE11 linings(4)
561359M10 x 20 Screw8
661120Camshaft circlip4
796365FCamshaft support washer2
861080Spherical bearing2
961150Spring anchor bar4
1061058Camshaft support washer2
11611101/8” NPT Greaser2
12611111/8” NPT Plug2
1361660RW Return Spring2
14 Cam Roller assembly
61210Cam Roller Sleeve4
61220Cam Roller Retainer4
61230Cam Roller Spindle4
1561057Beveled Camshaft Washer2
1661056Camshaft Grease Seal4
1761055Camshaft Sintered Bush2

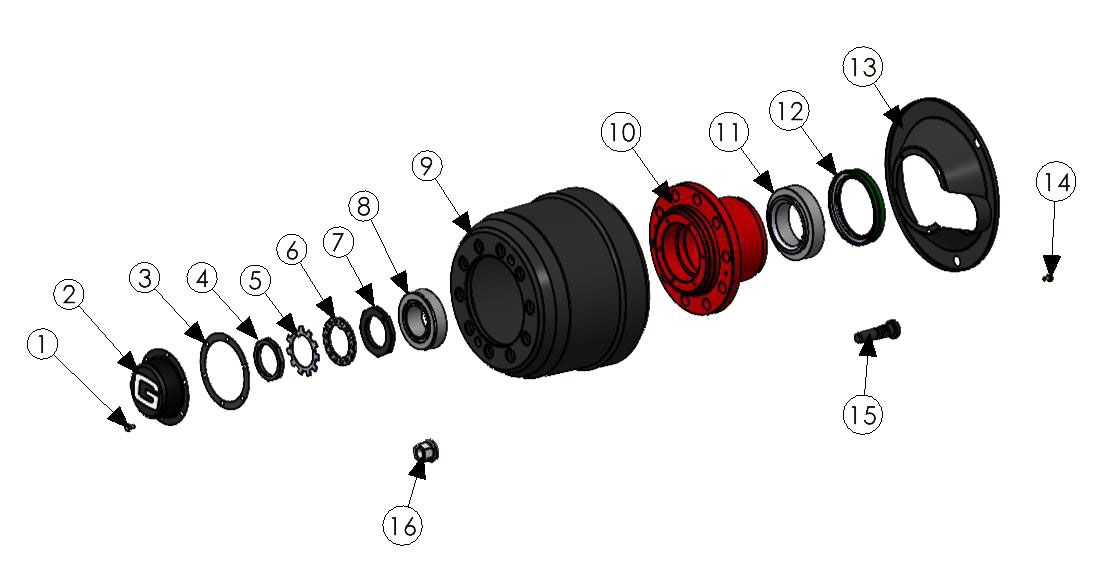

Hub/Drum Assembly

310x190 – 400 Series Offset Hub/Drum Assembly | Granning Axles & Suspensions
ItemPart No.DescriptionQTY per Axle
161358Screw M8 x 16 Fl. Head12
261322FHub Cap Pressing "G"2
361330FGasket2
461310Locknut2
561311Tab Washer2
661300Lock Washer2
761290Adjusting Nut2
861270FOuter Bearing2
96153510 Stud Brake Drum2
1061730400 Series Hub2
1161260FInner Bearing2
1261282FUnitised Grease Seal2
1361620Dust Cover2
1461358FM8x16 Bolt12
1561361M22 Single Wheel Stud20
1661381M22 ISO Wheel Nut20

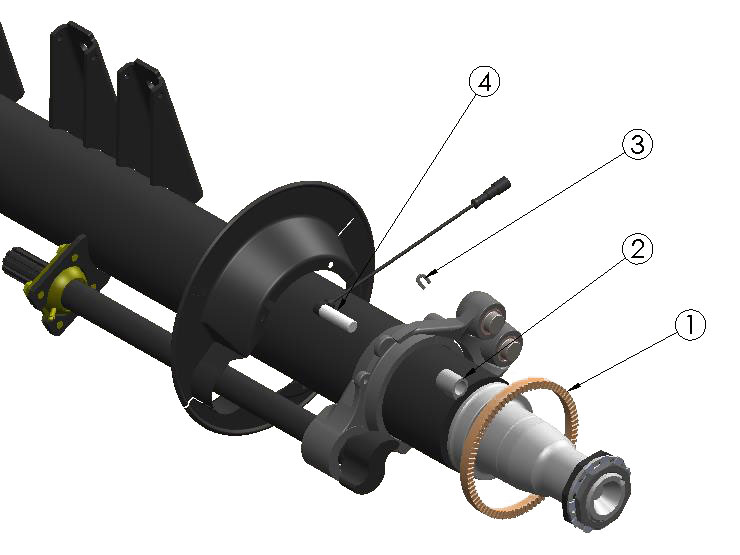

ABS/Anti-Lock Assembly

310x190 – 400 Series Offset ABS/Anti-Lock Assembly | Granning Axles & Suspensions
ItemPart No.Description
161787Pole Wheel (80tooth)
261781Sensor Block
361557Dust Cover Grommet
461791Straight Sensor Lead & Bush

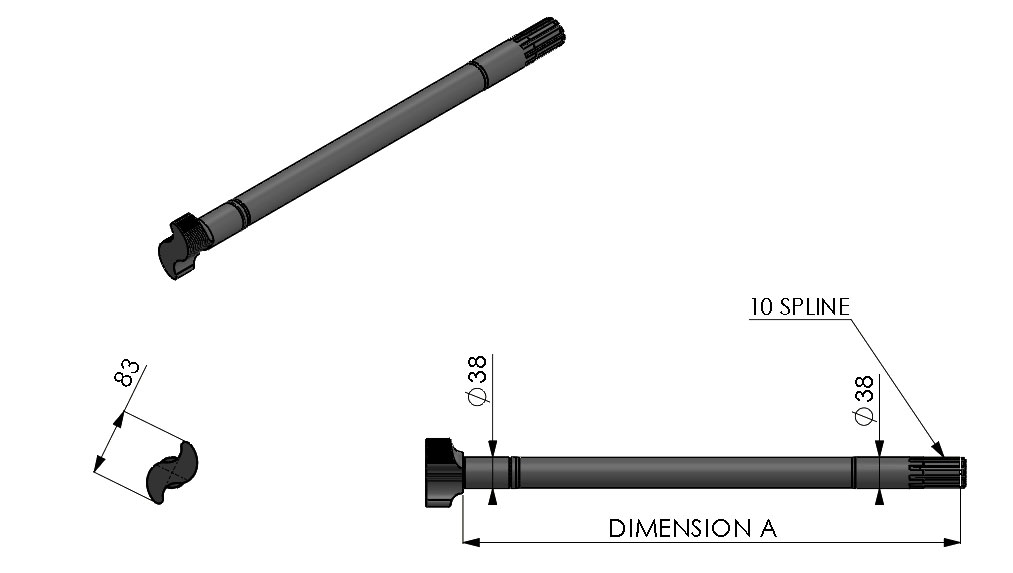

Camshafts

Camshaft lengths are measured from under head to the center of last circlip groove.

The illustrated camshaft is a right-hand camshaft. When looking at the head of the camshaft a right-hand cam is Z shaped and a left hand is S shaped

310x190 – 400 Series Offset Camshaft Parts List | Granning Axles & Suspensions
ItemPart No.Description (DIM A)
161154Left Hand Small Head (175mm)
261153Right Hand Small Head (175mm)
361591Left Hand Small Head (212mm)
461601Right Hand Small Head (212mm)
561595Left Hand Small Head (519mm)
661605Right Hand Small Head (519mm)
761596Left Hand Small Head (610mm)
861606Right Hand Small Head (610mm)

Position of seals in the anchor bracket

Position of seals in the anchor bracket

The direction of the grease seals in the anchor bracket is important as well as the position of the beveled washer between the anchor bracket and camshaft head.
