300 “A” Series Axles Spare Parts
Revision Date: May 2024 Part No. 80299 REV B
300 series axle is TUV tested to 11000Kg.
Available in single and twin wheel stud; 10 spline camshaft; Brake Size: 310mm x 190mm; 225mm PCD 10 stud M22 hub and drum; 173mm hub pilot.
View / Download PDF

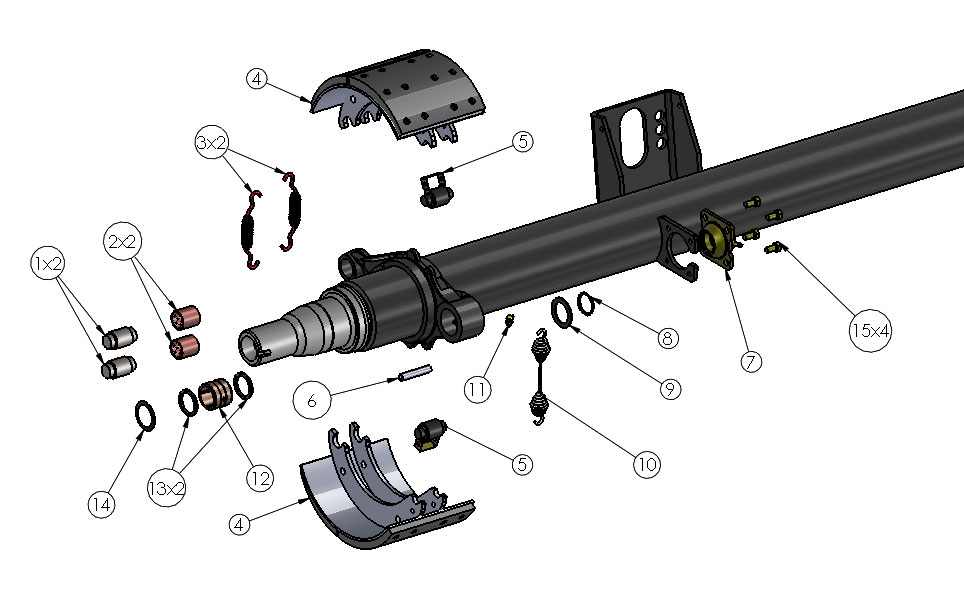

Quick Fit Brake Assembly
| Item | Part No. | Description | QTY per Axle |
|---|---|---|---|
| 1 | 61171 | Anchor Pin | 4 |
| 2 | 61200B | Bush Anchor Pin | 4 |
| 3 | 61141 | Brake Shoe Retaining Spring | 4 |
| 61542GA | Brake Shoe Assembly | 4 | |
| (4) | 61542G | Brake Shoe (GLAT26-29) | (4) |
| (5) | Retainer Cam Roller | (4) | |
| One Piece Cam Roller | (4) | ||
| 6 | Spring Fixing Pin | (4) | |
| 7 | 61080 | Camshaft Spherical Bearing | 2 |
| 8 | 61120 | Circlip | 2 |
| 9 | 61058 | Support Washer Camshaft | 2 |
| 10 | 61660 | Spring Return | 2 |
| 11 | 61110 | Greaser 1/8 NPT x 45° | 2 |
| 12 | 61055 | Camshaft Sintered Bush | 2 |
| 13 | 61056 | Camshaft Grease Seal | 4 |
| 14 | 61057 | Camshaft Beveled Washer | 2 |
| 15 | 61359 | M10 x 20 Screw | 8 |

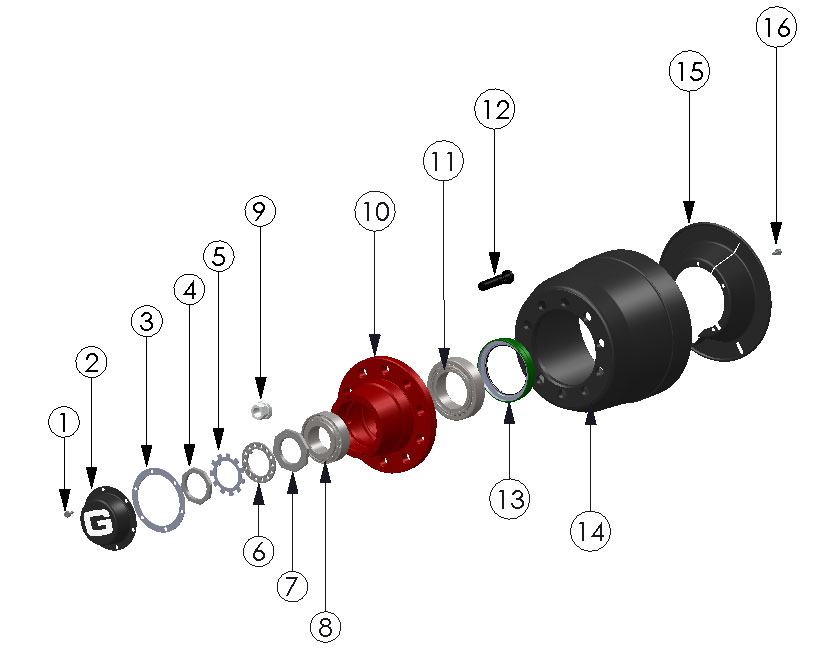

Hub/Drum Assembly
| Item | Part No. | Description | QTY per Axle |
|---|---|---|---|
| 1 | 61351 | Screw M8 x 16 Fl. Head | 12 |
| 2 | 61322A | Hub Cap Pressing "G" | 2 |
| 3 | 61330A | Gasket | 2 |
| 4 | 61310 | Locknut | 2 |
| 5 | 61311 | Tab Washer | 2 |
| 6 | 61300 | Lock Washer | 2 |
| 7 | 61290 | Adjusting Nut | 2 |
| 8 | 61270F | Outer Bearing | 2 |
| 9 | 61381Z | ISO Wheel Nut M22 | 20 |
| 10 | 61520 | Hub | 2 |
| 11 | 61260F | Inner Bearing | 2 |
| 12 | 61363 | Wheel Bolt M22 ISO (Twin) | 20 |
| 61361 | Wheel Bolt M22 ISO (Single) | 20 | |
| 13 | 61282 | Unitised Grease Seal | 2 |
| 14 | 61535* | Brake Drum 10 Stud | 2 |
| 15 | 61620 | Dust Cover (with no lip) | 2 |
| 61620A | Dust Cover (with lip) | 2 | |
| 16 | 61358F | Screw M8 x 16 Fl.Head | 12 |
*61535 drum now has no lip for dust cover. This new drum uses flat dust cover 61620

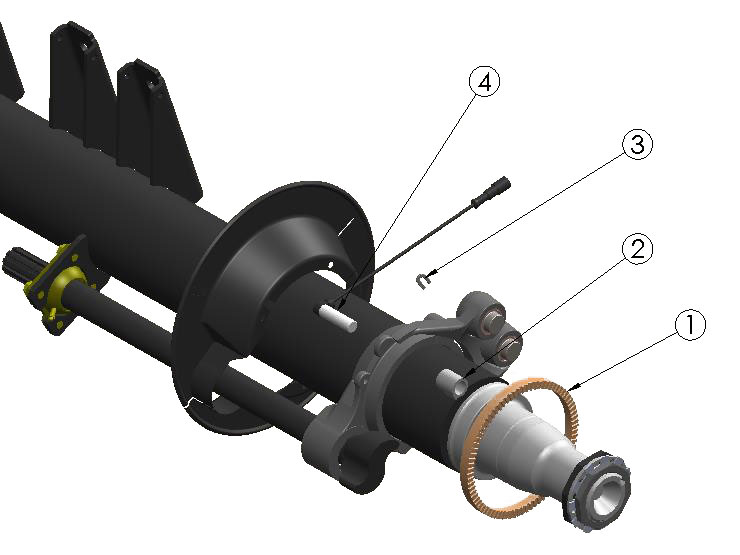

ABS/Anti-Lock Assembly
| Item | Part No. | Description |
|---|---|---|
| 1 | 61787 | Pole Wheel (80 tooth) |
| 2 | 61781 | Sensor Block |
| 3 | 61557 | Dust Cover Grommet |
| 4 | 61790 | 90° Sensor Lead & Bush |

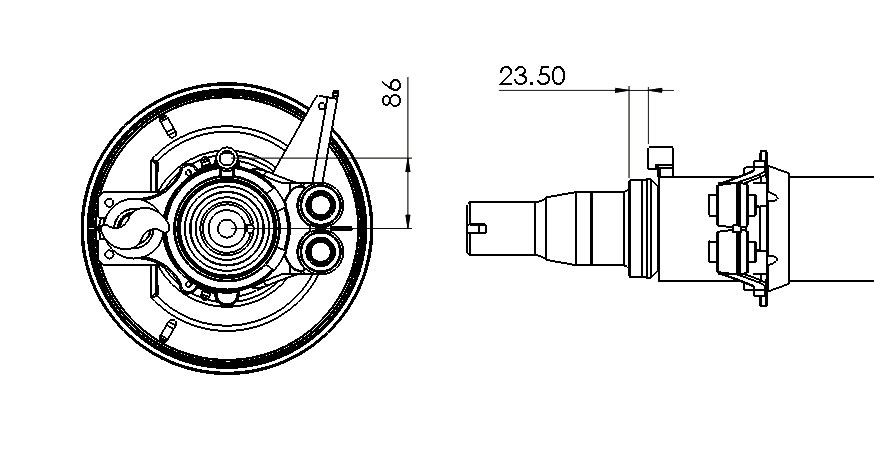

Centre of the ABS sensor is 86mm from centre of the axle
Face of sensor block 23.5mm from large bearing shoulder
Weld on ABS block (as shown above) is positioned 90 degrees to camshaft.

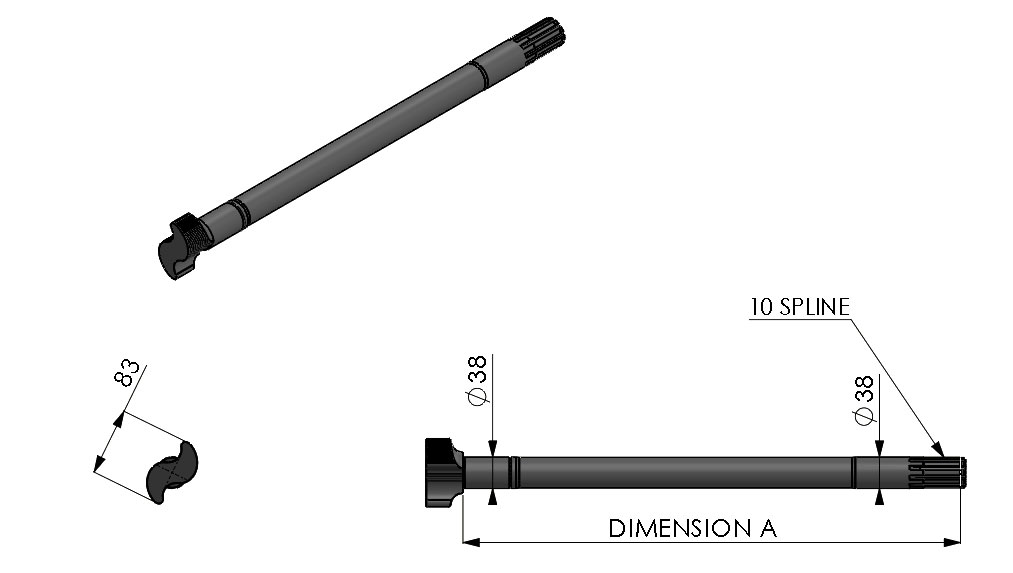

Camshafts
Camshaft lengths are measured from under head to the center of last circlip groove.
The illustrated camshaft is a right-hand camshaft. When looking at the head of the camshaft a right-hand cam is Z shaped and a left hand is S shaped
| Item | Part No. | Description (DIM A) |
|---|---|---|
| 1 | 61154 | Left Hand Small Head (175mm) |
| 2 | 61153 | Right Hand Small Head (175mm) |
| 3 | 61591 | Left Hand Small Head (212mm) |
| 4 | 61601 | Right Hand Small Head (212mm) |
| 5 | 61595 | Left Hand Small Head (519mm) |
| 6 | 61605 | Right Hand Small Head (519mm) |
| 7 | 61596 | Left Hand Small Head (610mm) |
| 8 | 61606 | Right Hand Small Head (610mm) |
Loose Parts
-
61290Adjusting Nut
-
61171Anchor pin
-
61530FBrake Drum 310×190
-
61542GABrake Shoe 310×190
-
61200BBush Anchor Pin
-
61057Camshaft Beveled Washer
-
61056Camshaft Grease Seal
-
61055Camshaft Sintered Bush
-
61080FCamshaft Spherical Bearing
-
61058Camshaft Support Washer
-
61120Circlip
-
61620FDust Cover
-
61322G Hub Cap Pressing
-
61330FGasket
-
61260FInner bearing and cone
-
61300Lock Washer
-
61310Locknut
-
61411M22 DIN Wheel Nut
-
61381M22 ISO Wheel Nut
-
61270FOuter bearing and cone
-
61660Spring Return
-
61311Tab Washer
-
61282FUnitised Grease Seal
-
61520FWheel Hub 310×190
Ordering Of Sub-Assemblies
It is possible to order sub-assemblies of parts from Granning rather than ordering individual parts.

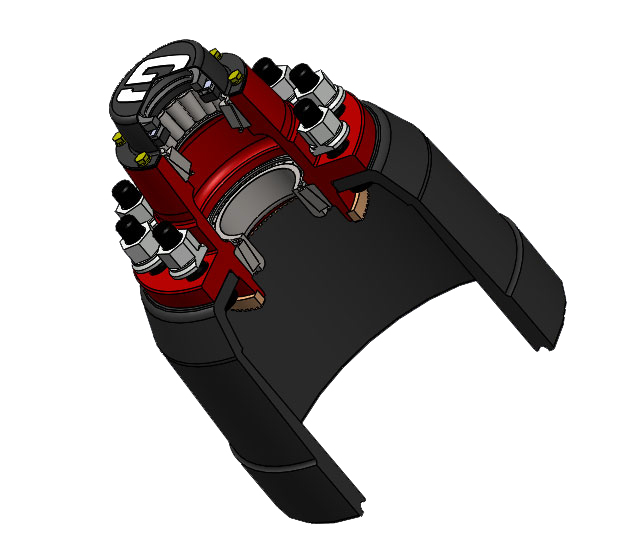

Hub and Drum Assembly
| Part No. | Description | Quantity |
|---|---|---|
| 61530F | Drum | 1 |
| 61520F | Hub | 1 |
| 61270F | Outer Bearing | 1 |
| 61260F | Inner Bearing | 1 |
| 61361 | Single wheel stud | 10 |
| 61381Z | ISO wheel nut | 10 |
| 61282F | Unitised grease seal | 1 |
| Part No. | Description | Quantity |
|---|---|---|
| 61530F | Drum | 1 |
| 61520F | Hub | 1 |
| 61270F | Outer bearing | 1 |
| 61260F | Inner bearing | 1 |
| 61383F | Twin wheel stud | 10 |
| 61381Z | ISO wheel nut | 10 |
| 61282F | Unitised grease seal | 1 |
| Part No. | Description | QTY per Kit |
|---|---|---|
| 61310 | Locknut | 1 |
| 61311 | Tab Washer | 1 |
| 61300 | Lock Washer | 1 |
| 61290 | Adjusting Washer | 1 |
| Part No. | Description | QTY per Kit |
|---|---|---|
| 61322F | Hubcap | 1 |
| 61330F | Hubcap Gasket | 1 |
| 96366F | M8 Serrated Washer | 12 |
| 61358F | Screw M8x16 Fl. Head | 12 |

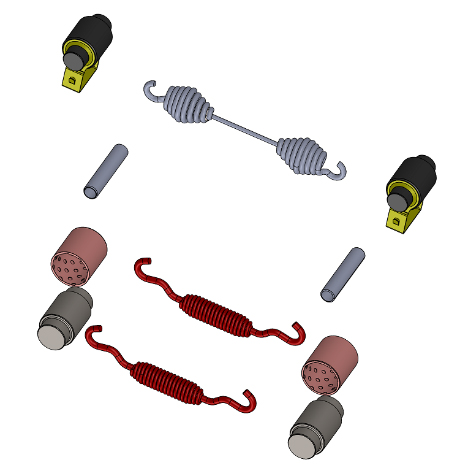

| Part No. | Description | Quantity |
|---|---|---|
| 61660 | Return spring | 1 |
| 61141 | Brake shoe retaining spring | 2 |
| 61341 | Spring anchor bar | 2 |
| 61235 | One piece cam roller | 2 |
| 61220 | Retainer cam roller | 2 |
| 61200B | Bush anchor pin | 2 |
| 61171 | Anchor pin | 2 |
| Part No. | Description | QTY per Kit |
|---|---|---|
| 61080F | Spherical bearing | 1 |
| 61055 | Camshaft sintered bush | 1 |
| 61056 | Camshaft grease seal | 2 |
| 61057 | Beveled camshaft washer | 1 |
| 61058 | Camshaft washer | 1 |
| 61120 | Camshaft circlip | 2 |
| 96365F | Camshaft support washer | 2 |
| 61359 | M8 Hex Bolt | 4 |
| 96363F | Serrated Washer | 4 |
| 96364F | Spring Washer | 4 |

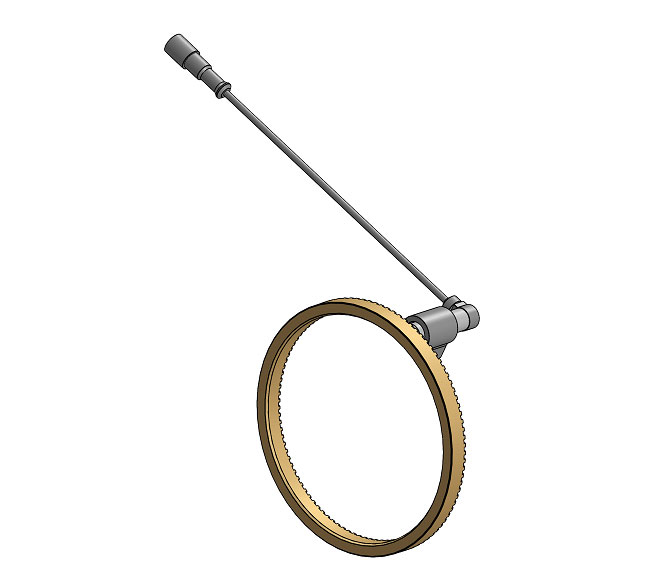

| Part No. | Description | Quantity |
|---|---|---|
| 61787 | Pole Wheel (80 tooth) | 1 |
| 61781 | Sensor Block | 1 |
| 61790 | 90 Degree ABS Lead | 1 |
| 61557 | Dust Cover Grommet | 1 |
