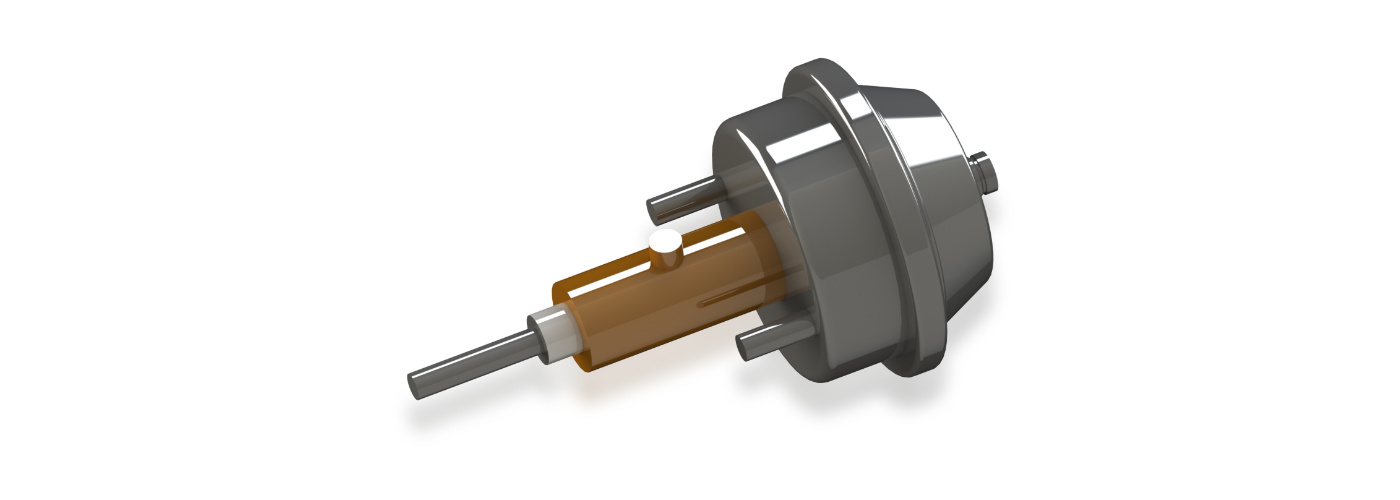

Hydraulic Chamber
| Part Number | 30244A | 30247A | 30256A | 30257A | 30258A |
| Air Chamber Size | T20 | T24 | T20 | T24 | T24 |
| Air Chamber Stroke (mm) | 75 | 75 | 75 | 75 | 75 |
| Air Chamber Pressure (Mpa) | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 |
| Air Chamber Force (KN) | 8.3 | 9.6 | 8.3 | 9.6 | 9.6 |
| Air Port Size | M16 | M16 | M16 | M16 | M16 |
| Hydraulic Piston Size (mm) | 25 | 25 | 30 | 30 | 35 |
| Hydraulic Piston Pressure (Mpa) | 10 | 10 | 10 | 10 | 10 |
| Hydraulic Piston Force (KN) | 4.9 | 4.9 | 6.7 | 6.7 | 9.3 |
| Hydraulic Port Size | G3 / 8 | G3 / 8 | G3 / 8 | G3 / 8 | G3 / 8 |
| Chamber Length (mm) | 108 | 108 | 108 | 115 | 115 |
| Actuator Length (mm) | 237 | 237 | 245 | 237 | 250 |

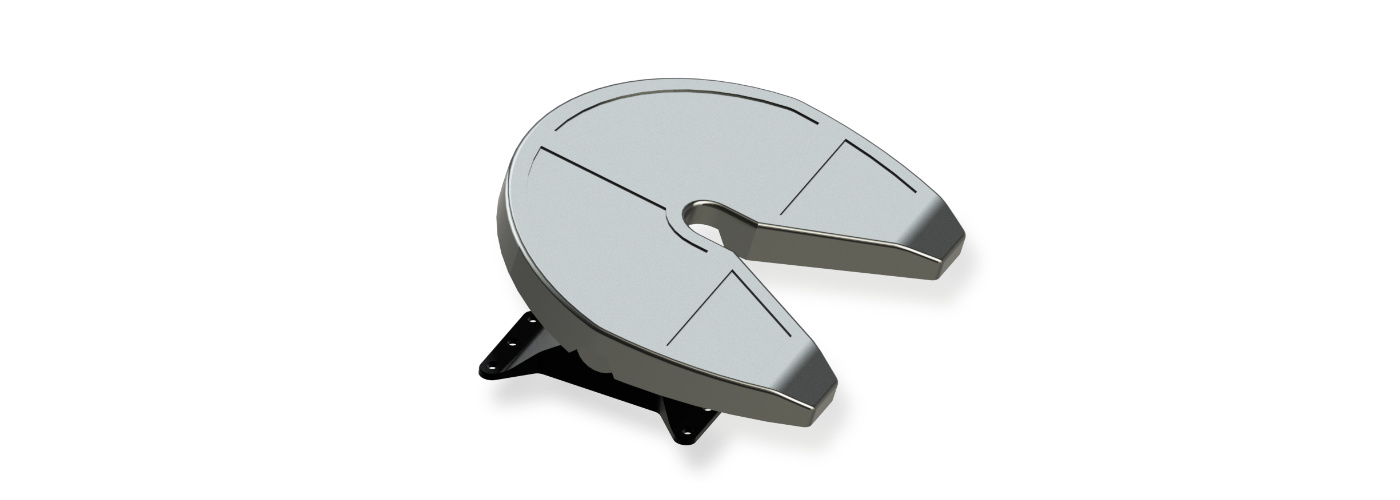

FIFTH WHEEL
| Part Number | 61100 |
| Jaw Size | |
| Mounting Height (mm) | 185 |
| Vertical Load (kg) | 20,000 |
| D – Value (KN) | 152 |
| Oscillation Degrees | 18 |
| Weight (kg) | 129.9 |
| Max Gross Weight (kg) | 65,000 |

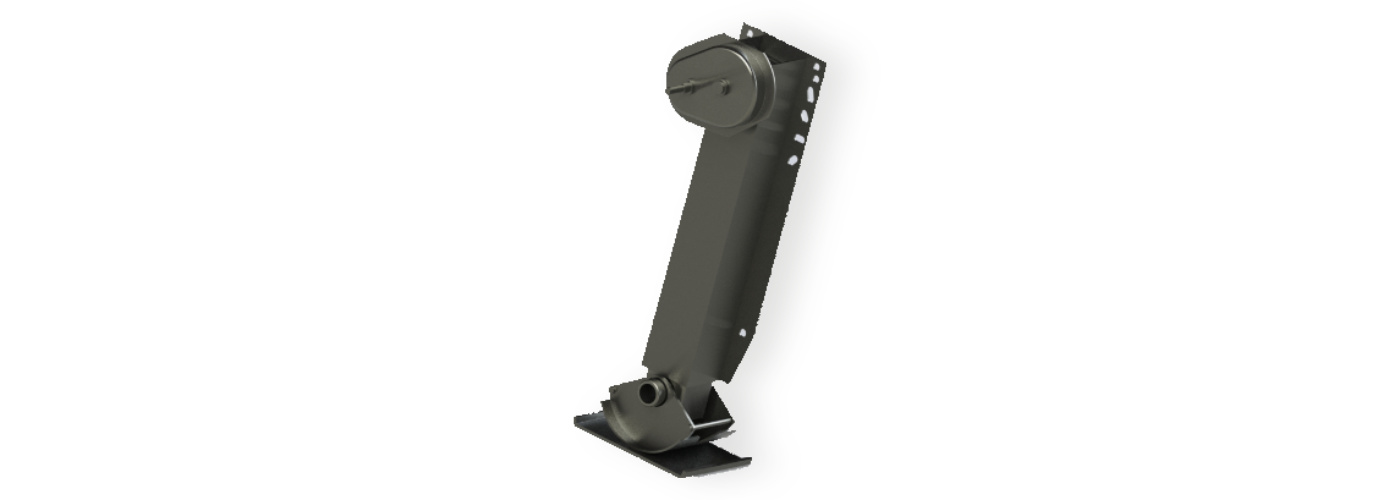

LANDING LEGS
| Part Number | 31441A | 31442A |
| Minimum Height (mm) | 873 | 881 |
| Stroke (mm) | 480 | 480 |
| Low Gear Speed (mm / r) | 1 | 1 |
| High Gear Speed (mm / r) | 11 | 11 |
| Weight (kg) | 105 | 105 |
| Shoe Type | Rocker | Compensating |
| Crank Force (kg) | 35.5 | 35.5 |
| Capacity (kg / pair) | 28,000 | 28,000 |
| Static Load (kg / pair) | 80,000 | 80,000 |
DRAWBAR SPRINGS
| Part Number | 51100K | 51101K | 51102K |
| Spring Width (mm) | 120 | 120 | 120 |
| Spring Height | 154 | 182 | 202 |
| Leaf Thickness (mm) | 14 | 14 | 16 / 14 |
| Bush Details ID (mm) | 45 | 45 | 45 |
| No. of Leafs | 11 | 13 | 13 |
| Dimension A (mm) | 870 | 870 | 870 |
| Capacity (kg) | 11,000 | 12,000 | 13,000 |
