990 series Drum Brake Axle

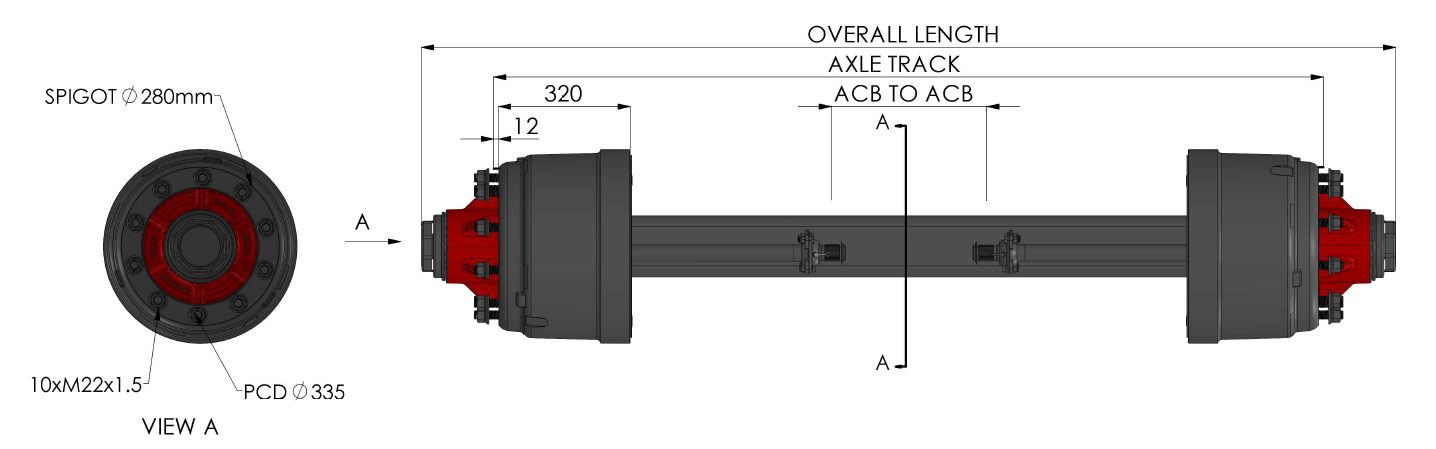

Part No Brake Size Beam Type Track Camshaft Wheelbolt Overall Length Inside Drum dimensions ACB to ACB ACB to Track
60997FD 420x220 □ 150mm 2024mm 618mm DTT 2384mm 1360mm 380mm 822mm

* All ACB components supplied loose.
** Increased beam capacity for Off Road use:

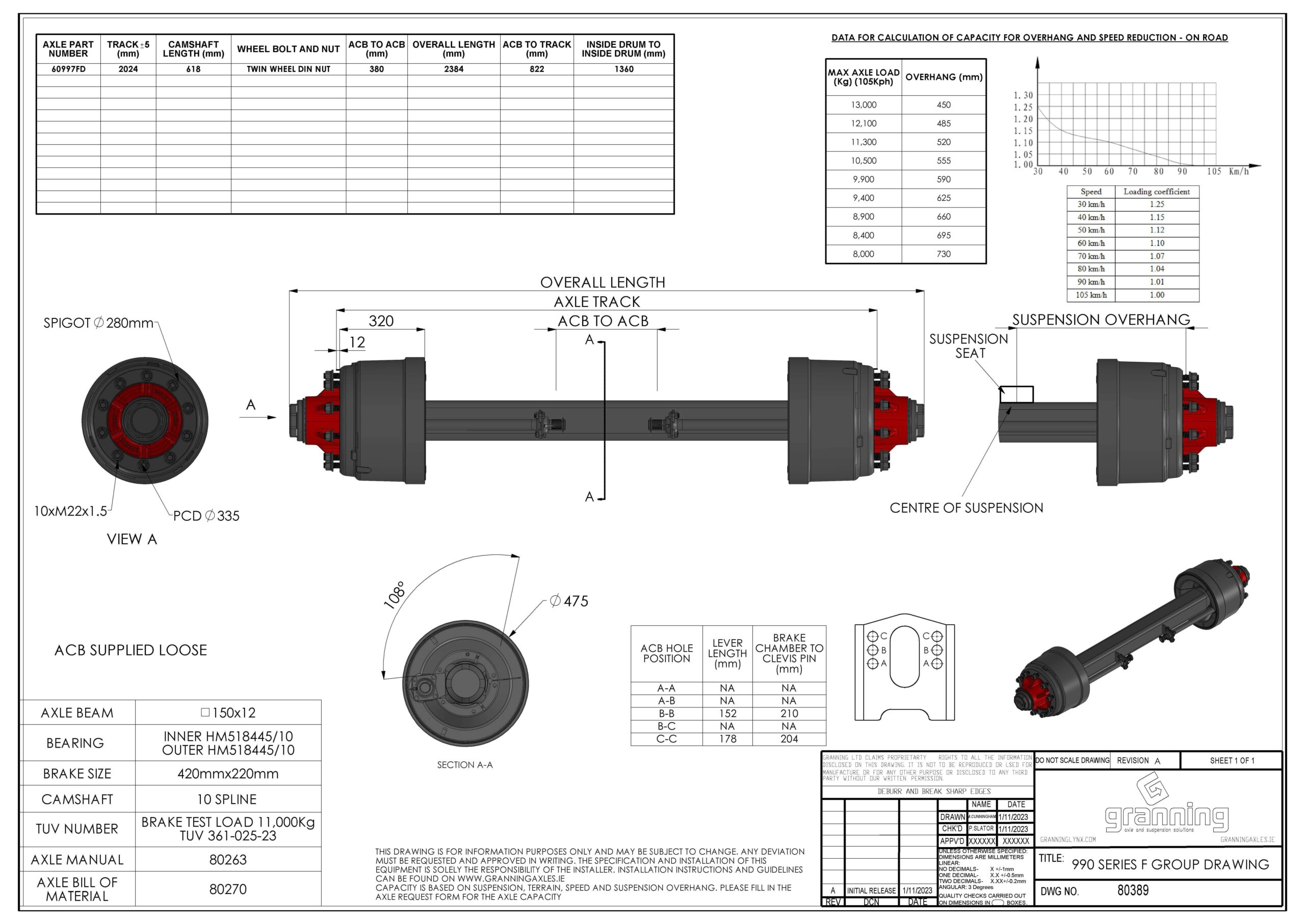

Granning Drum Brake Axles 990 series

Download Documentations

Bill of Materials

420 x 220mm – 990 series 10 spline Bill of Materials

Axle Service Manual

420 x 220mm – 990 series Axle Service Manual

TUV Certification

420 x 220mm – 990 series TUV Certification

WHY BUY FROM GRANNING AXLES

  • 100% Manufactured inhouse

  • Bespoke Axle solutions

  • All products built to ISO 9001 2015 standards

  • Customer configurable building process

990 SERIES AXLE OVERVIEW

  • 990 Series axle is a commercial spec axle.
  • Commonly used on Grain trailers, Tipper trailers, Flat bed trailers.
  • Wide range of set ups available on mechanical and air suspensions.
  • ABS and Stub axle versions available.
  • Wide range of tracks, camshaft lengths and wheel bolts available.
  • Commonly used with 385 65 R22.5, 560 60 R22.5, 11R tyres.
  • 3D axle models on request
