900 Series Axle Spare Parts

Revision Date: February 2022
Part No. 80296 REV B

900 series axle is TUV tested to 11000Kg.

Available in single and twin wheel stud; 10 spline camshaft; Brake Size: 335mm x 210mm;
225mm PCD 10 stud M22 hub and drum. 176mm hub pilot.
275mm PCD 8 stud M22 hub and drum. 220mm hub pilot.

View / Download PDF

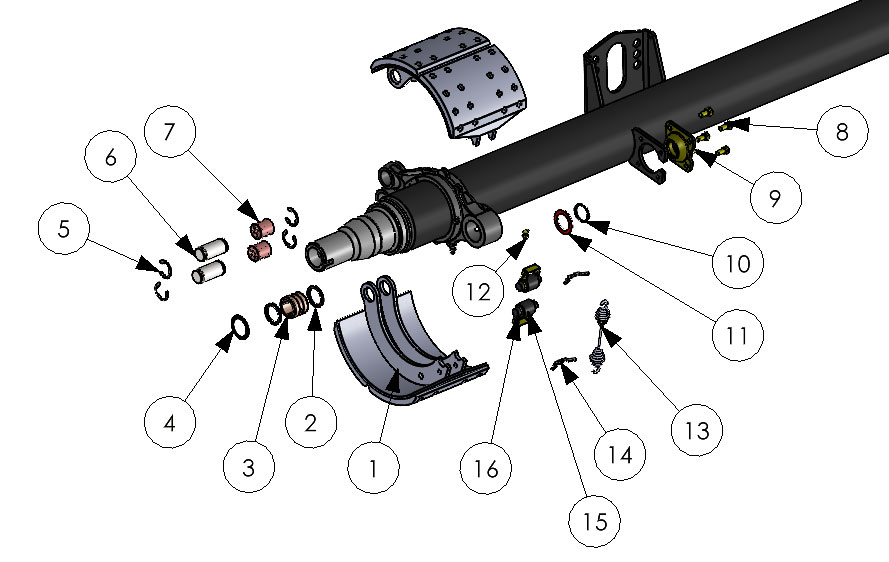

Quick Fit Brake Assembly

Item	Part No.	Description	QTY per Axle
1	61035	Brake Shoe Assembly	4
2	61056	Camshaft Grease Seal	4
3	61055	Camshaft Sintered Bush	2
4	61057	Camshaft Bevelled Washer	2
5	61460	E Clip	8
6	61170	Anchor Pin	4
7	61200B	Anchor Pin Bush	4
8	61359	M10 x20 Bolt	8
9	61080	Camshaft Spherical Bearing	2
10	61120	Circlip	2
11	61058	Camshaft Support Washer	2
12	61118+61117+61113C	Grease Nipple with extension	2
13	61660	Return Spring	2
14	61150	Spring Anchor Bar	2
15	61235	Cam Roller	4
16	61220	Cam Roller Retainer	4

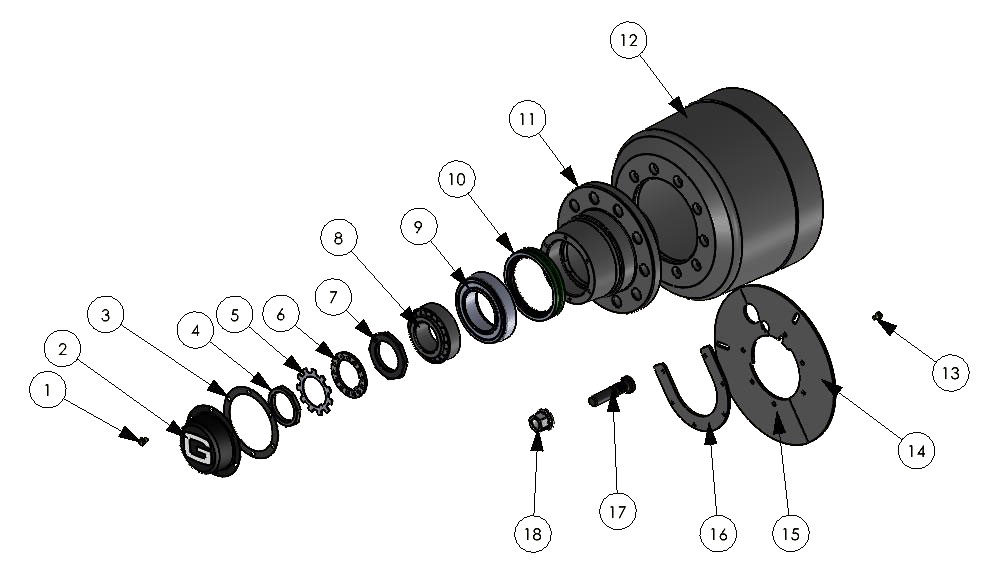

Hub/Drum Assembly

Item	Part No.	Description	QTY per Axle
1	61358F	M8 Screw x 16	12
2	61322	Hub Cap	2
3	61330F	Hub Cap Gasket	2
4	61310	Lock Nut	2
5	61311	Tab Washer	2
6	61300	Lock Washer	2
7	61290	Adjusting Nut	2
8	61270F	Outer Bearing	2
9	61260F	Inner Bearing	2
10	61282F	Grease Seal	2
11	61520	10 Stud Hub	2

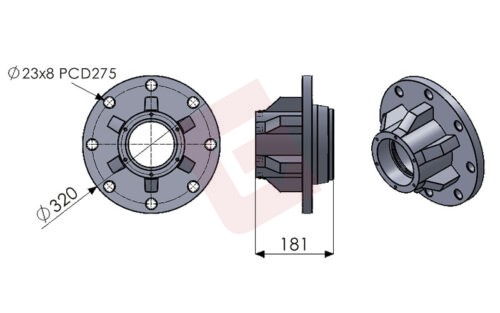

	61213	8 Stud Hub	2

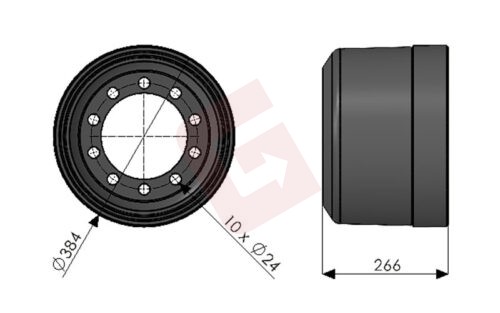

12	61029	10 Stud Drum	2

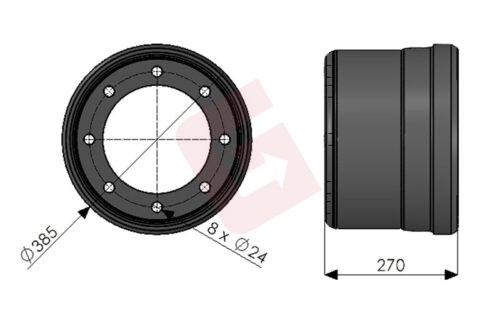

	61214	8 Stud Drum	2
13	61358F	M8 Screw x 16 (Dustcover)	12

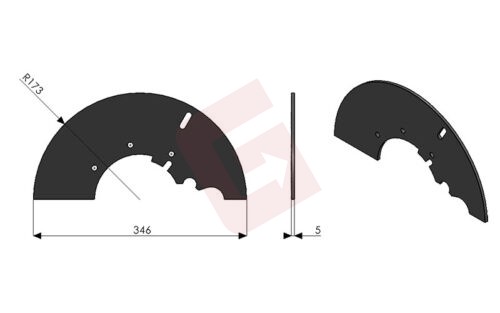

14	23091	Top Dust Cover	2

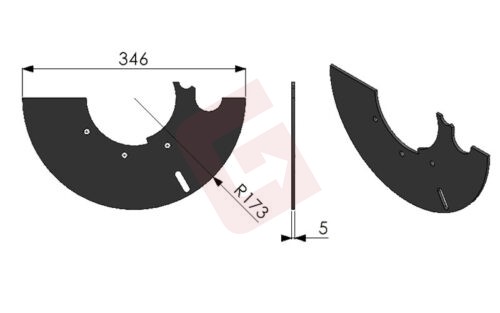

15	23092	Bottom Dust Cover	2

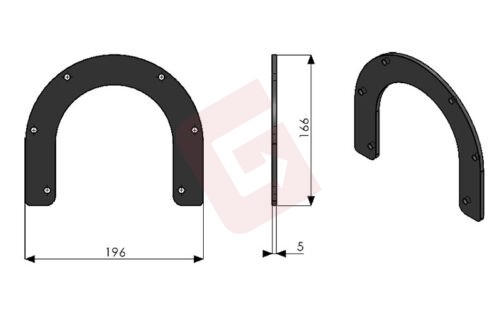

16	23093	U Shaped Dust Cover Bracket	2
17	61363F	Twin Wheel Bolt M22	20
	61361	Single Wheel Bolt M22	20
18	61381Z	M22 ISO Wheel Nut	20

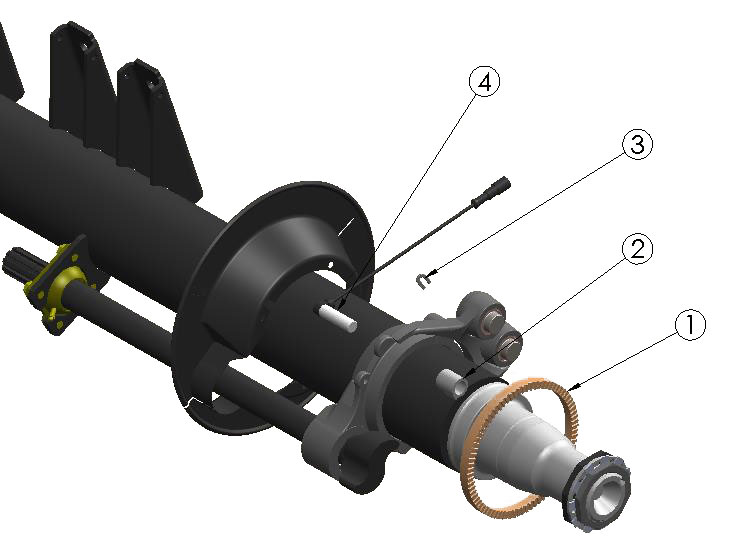

ABS/Anti-Lock Assembly

Item	Part No.	Description
1	61787	Pole Wheel (80tooth)
2	61781	Sensor Block
3	61557	Dust Cover Grommet
4	61786	90° Sensor Lead & Bush

Camshafts

Camshaft lengths are measured from under head to the center of last circlip groove.

The illustrated camshaft is a right-hand camshaft. When looking at the head of the camshaft a right-hand cam is Z shaped and a left hand is S shaped

420 x 180 – 100 “F” Series Camshaft Parts List | Granning Axles & Suspensions

Item	Part No.	Description (DIM A)
1	61154	Left Hand Small Head (175mm)
2	61153	Right Hand Small Head (175mm)
3	61591	Left Hand Small Head (212mm)
4	61601	Right Hand Small Head (212mm)
5	61595	Left Hand Small Head (519mm)
6	61605	Right Hand Small Head (519mm)
7	61596	Left Hand Small Head (610mm)
8	61606	Right Hand Small Head (610mm)

Loose Parts

Position of seals in the anchor bracket

The direction of the grease seals in the anchor bracket is important as well as the position of the beveled washer between the anchor bracket and camshaft head.
