300 “F” Series Axles Spare Parts

Revision Date: December 2024
Part No. 80283 REV D v4

300 series axle is TUV tested to 11000Kg.

Available in single and twin wheel stud; 10 spline camshaft; Brake Size: 310mm x 190mm; 225mm PCD 10 stud; M22 hub and drum; 173mm hub pilot.

Quick Fit Brake Assembly
Hub / Drum Assembly
ABS/Anti-Lock Assembly
Camshafts
Loose Parts
Position of seals in the Anchor Bracket
Ordering of Sub-Assemblies

View / Download PDF

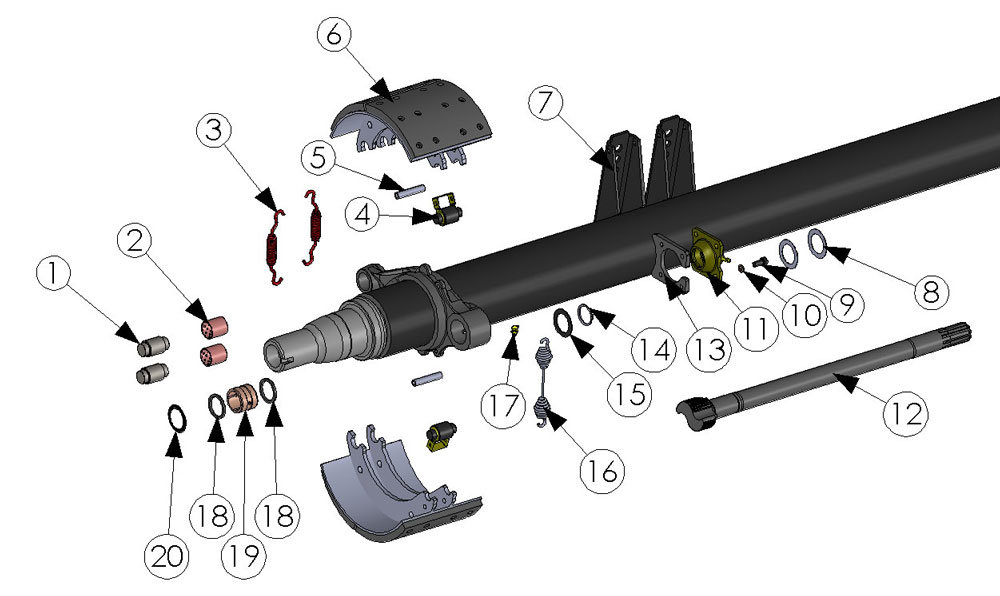

Quick Fit Brake Assembly

Item	Part No.	Description	QTY per Axle	Kit Name
1	61171	Anchor Pin	4	AK301
2	61200B	Bush Anchor Pin	4	AK301
3	61141	Brake Shoe Retaining Spring	4	AK301
	61542FA	Brake Shoe Assembly	4
(4)	61235	Retainer Cam Roller	(4)	AK301
	61220	Retainer Cam Roller Retainer	(4)	AK301
(5)	61341	Spring Anchor Bar	(4)	AK301
(6)	61542F	Brake Shoe (FWE11)	(4)
7	61044F	Air Chamber Bracket	4
8	96365F	Camshaft Support Washer	4	AK200
9	61359	M10x20 Screw	8	AK200
10	96363F	Serrated Washer	8	AK200
	96364F	Spring Washer	8	AK200
11	61080F	Spherical Bearing	2	AK200
		Spherical Bearing Grease Nipple ¼” 28UNF		AK200
12		Axle Camshaft	2
13	61051F	Camshaft Support Bracket	2
14	61120	Circlip	2	AK200
15	61058	Support Washer Camshaft	2	AK200
16	61660	Brake Return Spring	2	AK200
17	61110	Greaser 1/8” x 45°	4	AK301
18	61056	Camshaft Grease Seal	4	AK200
19	61055	Camshaft Sintered Bush	2	AK200
20	61057	Beveled Washer	2	AK200

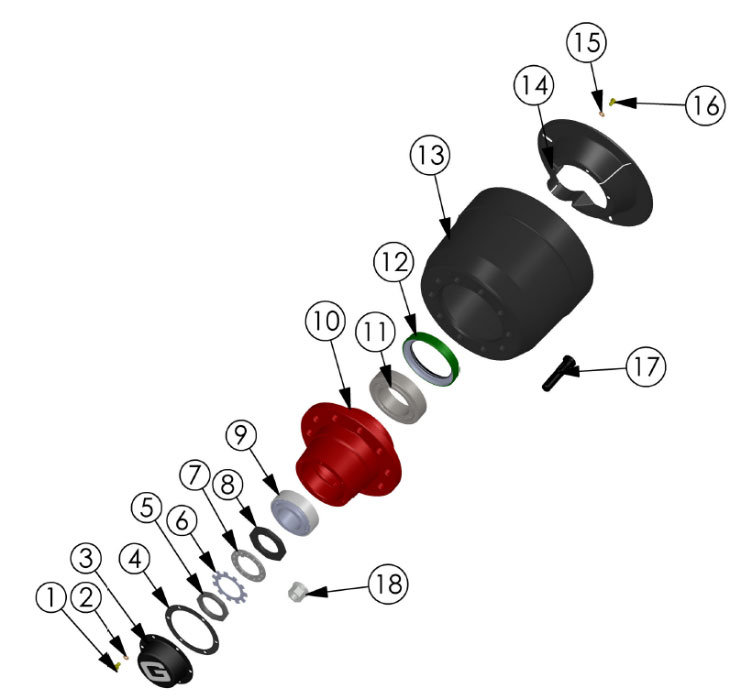

Hub/Drum Assembly

Item	Part No.	Description	QTY per AXLE	Kit Name
1	61358F	Screw M8 x 16 Fl. Head	12	AK102
2	96366F	M8 Serrated Washer	12	AK102
3	61322	Hub Cap Pressing "G"	2	AK102
4	61330F	Gasket	2	AK102
5	61310	Locknut	2	AK100
6	61311	Tab Washer	2	AK100
7	61300	Lock Washer	2	AK100
8	61290	Adjusting Nut	2	AK100
9	61270F	Outer Bearing	2	71000/3
10	61520F	Hub	2	71000/3
11	61260F	Inner Bearing	2	71000/3
12	61282F	Unitised Grease Seal	2	71000/3
13	61530F	Brake Drum 10 Stud	2	71000/3
14	61620F	Dust Cover	2	61620FK
15	96366F	M8 Serrated Washer	12	61620FK
16	61358F	M8x16mm Bolt	12	61620FK
17	61363F	Wheel Bolt M22 ISO (Twin)	20	71000
	61361	Wheel Bolt M22 ISO (Single)	20	71003
18	61381Z	ISO Wheel Nut M22	20	71000/3
	61383	DIN Wheel Nut M22	20
	61411	DIN Wheel Nut M22	20
	61372	DIN Nut Outer Washer	20
	61371	DIN Nut Inner Washer	20

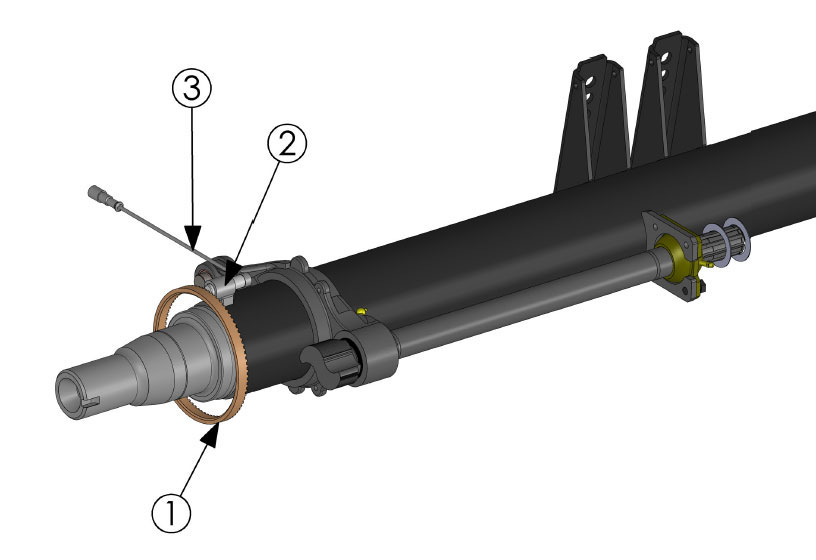

ABS/Anti-Lock Assembly

Item	Part No.	Description
1	61787	Pole Wheel (80tooth)
2	61781F	Sensor Block
3	61557	Dust Cover Grommet
4	61790F	90° Sensor Lead & Bush

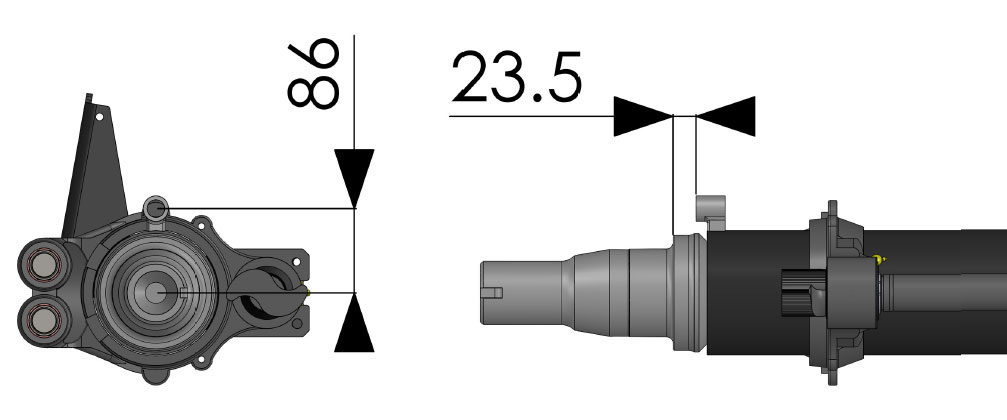

Centre of the ABS sensor is 86mm from centre of the axle
Face of sensor block 23.5mm from large bearing shoulder
Weld on ABS block (as shown above) is positioned 90 degrees to camshaft.

Camshafts

Camshaft lengths are measured from under head to the center of last circlip groove.

The illustrated camshaft is a right-hand camshaft. When looking at the head of the camshaft a right-hand cam is Z shaped and a left hand is S shaped

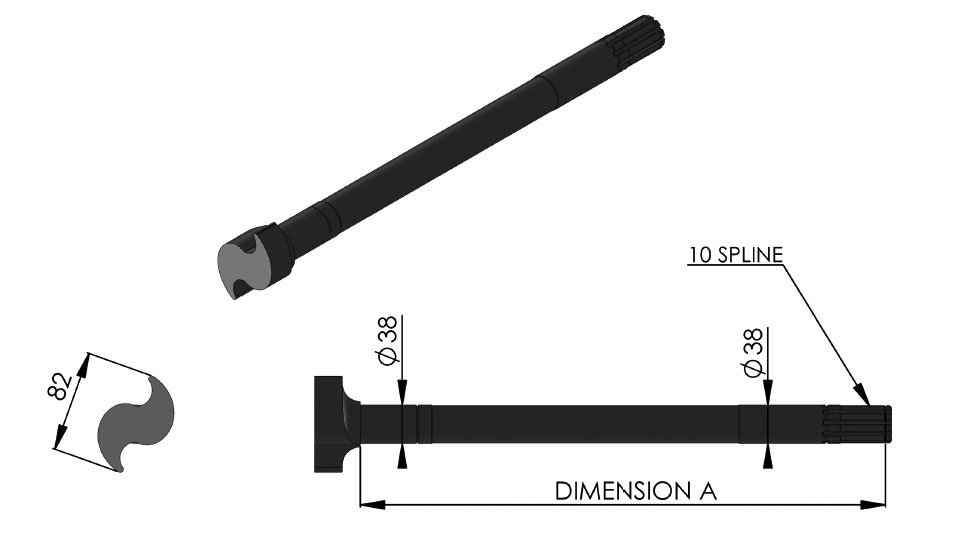

310 x 190 – 300 “F” Series Camshaft Parts List

Part No.	Description (DIM A)
61154	Left Hand Small Head (175mm)
61153	Right Hand Small Head (175mm)
61591	Left Hand Small Head (212mm)
61601	Right Hand Small Head (212mm)
61595	Left Hand Small Head (519mm)
61605	Right Hand Small Head (519mm)
61596	Left Hand Small Head (610mm)
61606	Right Hand Small Head (610mm)

Loose Parts

Position of seals in the anchor bracket

The direction of the grease seals in the anchor bracket is important as well as the position of the beveled washer between the anchor bracket and camshaft head.

Ordering Of Sub-Assemblies

It is possible to order sub-assemblies of parts from Granning rather than ordering individual parts.

Hub and Drum Assembly

310x190 – 300 “F” Series Ordering Sub-Assemblies

71003 – Single Wheel Stud Hub and Drum Assembly
71003W – 71003 with 1 x 80 tooth pole wheel 61787

Part No.	Description	Quantity
61530F	Drum	1
61520F	Hub	1
61270F	Outer Bearing	1
61260F	Inner Bearing	1
61361	Single wheel stud	10
61381Z	ISO wheel nut	10
61282F	Unitised grease seal	1

71000 – Twin Wheel Stud Hub and Drum Assembly
71000W – 71000 with 1 x 80 tooth pole wheel 61787

Part No.	Description	Quantity
61530F	Drum	1
61520F	Hub	1
61270F	Outer bearing	1
61260F	Inner bearing	1
61383F	Twin wheel stud	10
61381Z	ISO wheel nut	10
61282F	Unitised grease seal	1

AK100 – Spindle Nut Kit

Part No.	Description	QTY per Kit
61310	Locknut	1
61311	Tab Washer	1
61300	Lock Washer	1
61290	Adjusting Washer	1

AK102 – Hubcap Kit

Part No.	Description	QTY per Kit
61322F	Hubcap	1
61330F	Hubcap Gasket	1
96366F	M8 Serrated Washer	12
61358F	Screw M8x16 Fl. Head	12

AK301 – Brake Shoe Kit (one side of axle)

Part No.	Description	Quantity
61660	Return spring	1
61141	Brake shoe retaining spring	2
61341	Spring anchor bar	2
61235	One piece cam roller	2
61220	Retainer cam roller	2
61200B	Bush anchor pin	2
61171	Anchor pin	2

AK200 – Camshaft Bush Kit (one side of axle)

Part No.	Description	QTY per Kit
61080F	Spherical bearing	1
61055	Camshaft sintered bush	1
61056	Camshaft grease seal	2
61057	Beveled camshaft washer	1
61058	Camshaft washer	1
61120	Camshaft circlip	2
96365F	Camshaft support washer	2
61359	M8 Hex Bolt	4
96363F	Serrated Washer	4
96364F	Spring Washer	4

AK400 – ABS Kit (one side of axle)

Part No.	Description	Quantity
61787	Pole Wheel (80 tooth)	1
61781	Sensor Block	1
61790	90 Degree ABS Lead	1
61557	Dust Cover Grommet	1
