260 Series Axle Spare Parts

Revision Date: November 2024
Part No. 80390 REV B

260 series axle is TUV tested to 11000Kg.

Available in 150mm Square Beam only; 10 spline camshaft; Brake Size: 420mm x 180mm; 335mm PCD; 10 stud M22 hub and drum; 280.8mm hub pilot.

420 x 180mm – 100 A series external drum Bill of Materials
View / Download PDF

Brake Shoe Assembly

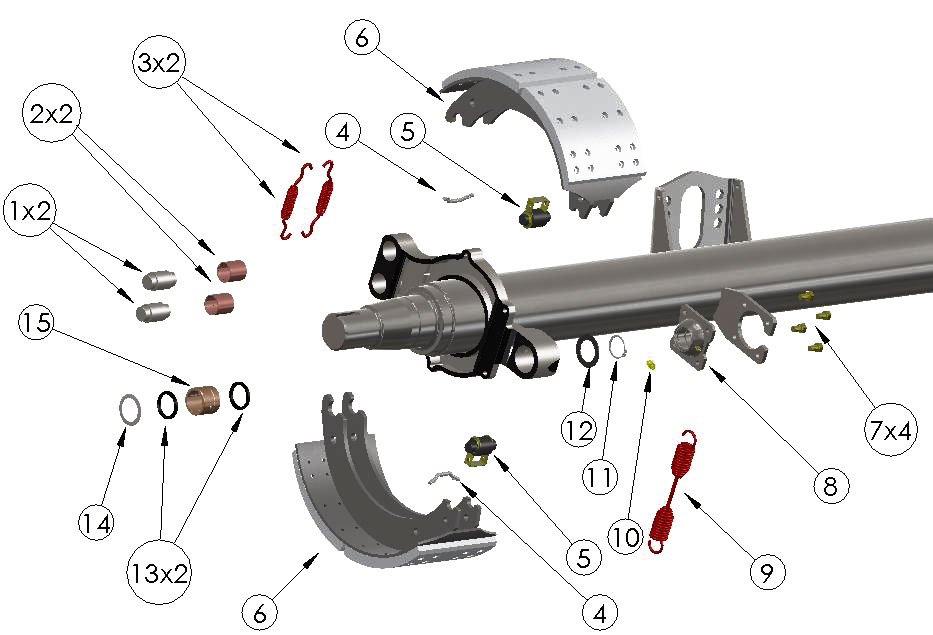

420 x 180mm – 260 Series Brake Shoe Assembly
Item Part No. Description QTY per Axle.
161171Anchor Pin4
220067Anchor Pin Bush4
361141Brake Shoe Retaining Spring4

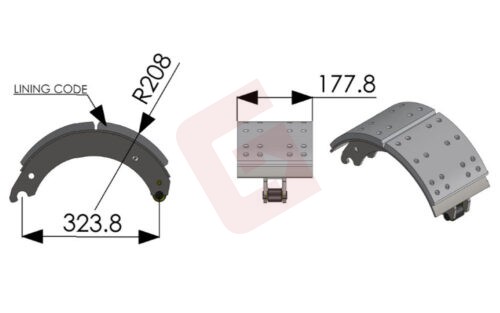

61157FA Brake Shoe Assembly 4
(4)61150Spring Anchor Bar4
(5)61220Retainer Cam Roller4
61235One Piece Cam Roller4
(6)61157FBrake Shoe4
761359Hex Bolt M10x208
7b20052M10 lock nut8
861080Spherical bearing2
961140Return Spring2
1061110Grease Nipple2
1161120Circlip2

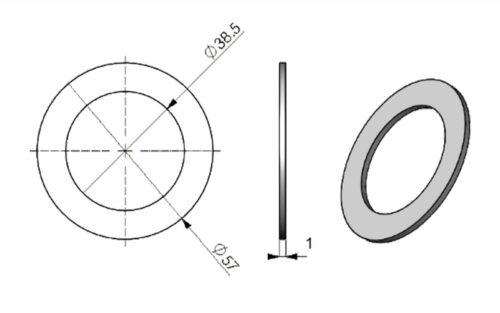

1296365FCamshaft 1mm Washer2
1361056Camshaft Grease Seal4
1461058Camshaft 2mm Washer2

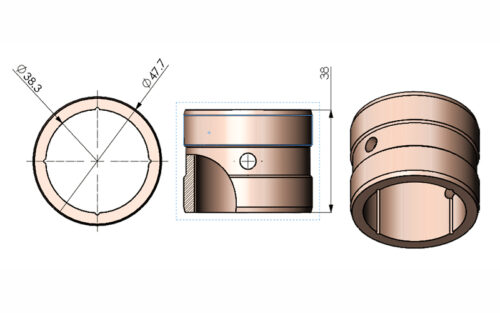

1520110Camshaft Sintered Bush2

Hub/Drum Assembly

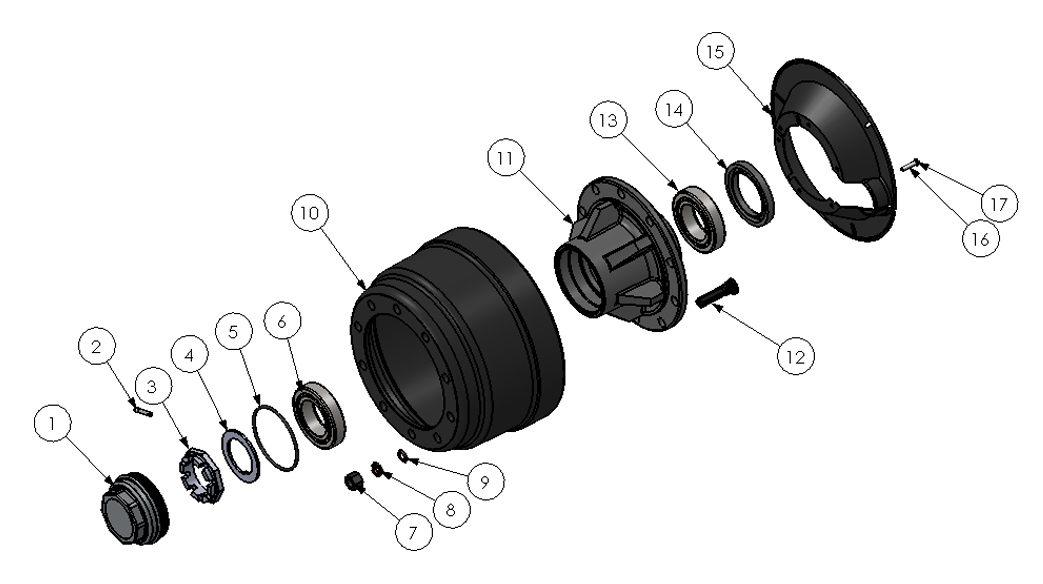

420 x 180mm – 260 Series Hub & Drum Assembly
Item Part Number Description QTY per Axle

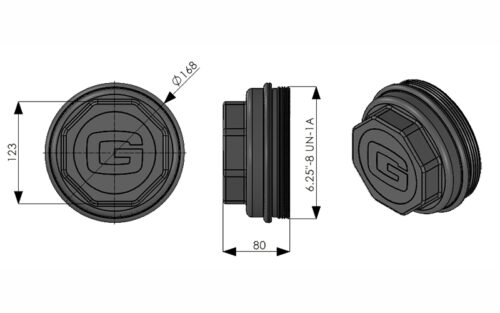

120130Hub Cap ( G Logo)2

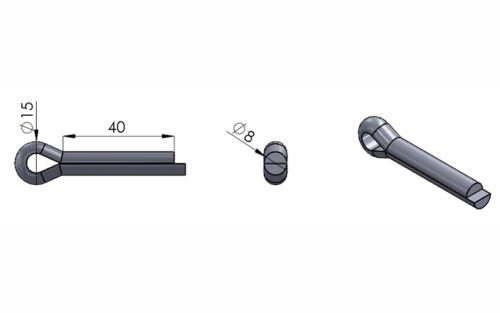

220059Hub Cap Split Pin2

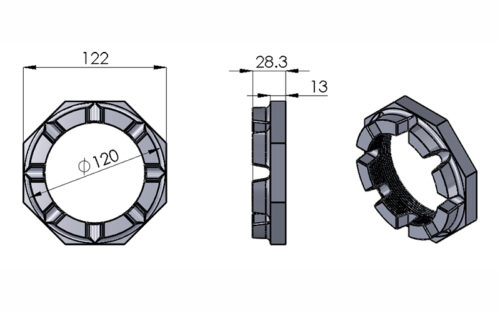

320060Spindle Castle Nut2

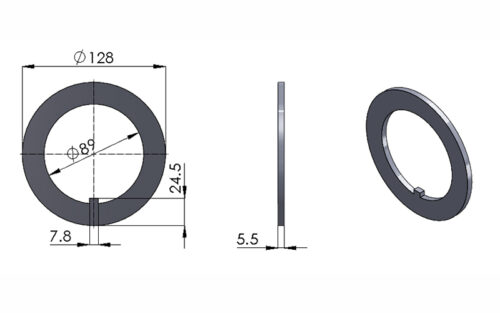

420058Spindle Washer2

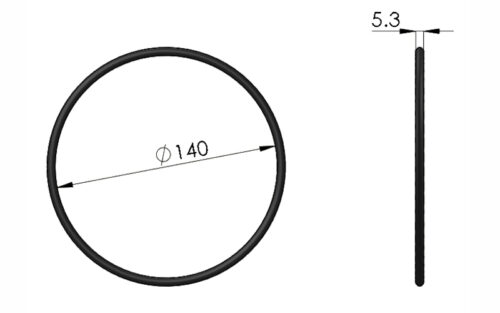

520001Hub Cap Seal2

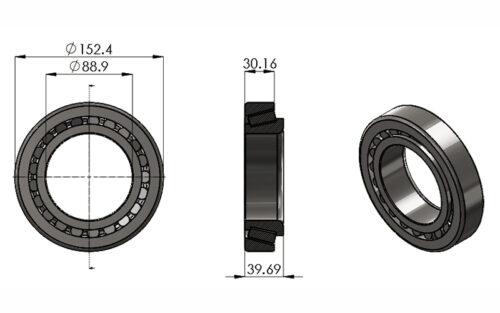

620002Outer Bearing2
7.161381ZISO Wheel Nut20
7.261383DIN Wheel Nut20
861372DIN Nut outer washer20
961371DIN Nut inner washer20
1020008External Drum2
1120010Hub2

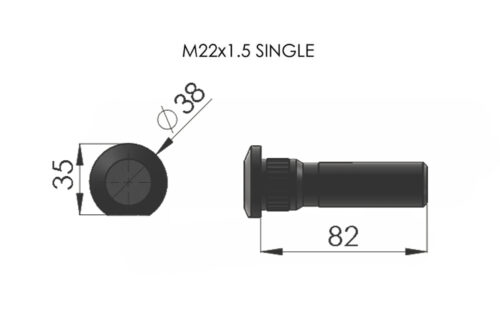

12.120201Wheel Bolt – Single (82mm)20

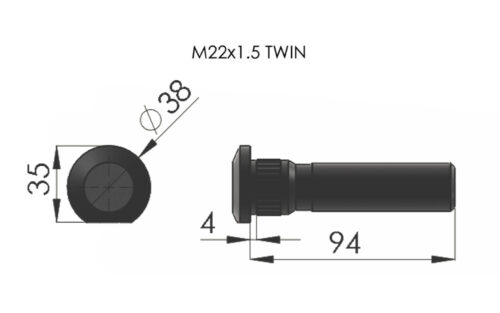

12.220200Wheel Bolt – Twin (94mm)20
1320002Inner Bearing2

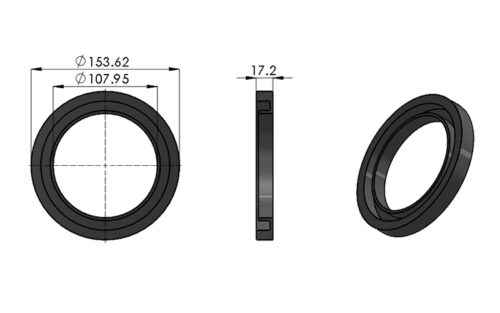

1420013Hub Seal2
1561390FDust Cover2
1620016Dust Cover Washer12
1761358FDust Cover Bolt (M8)12

ABS/Anti-Lock Assembly

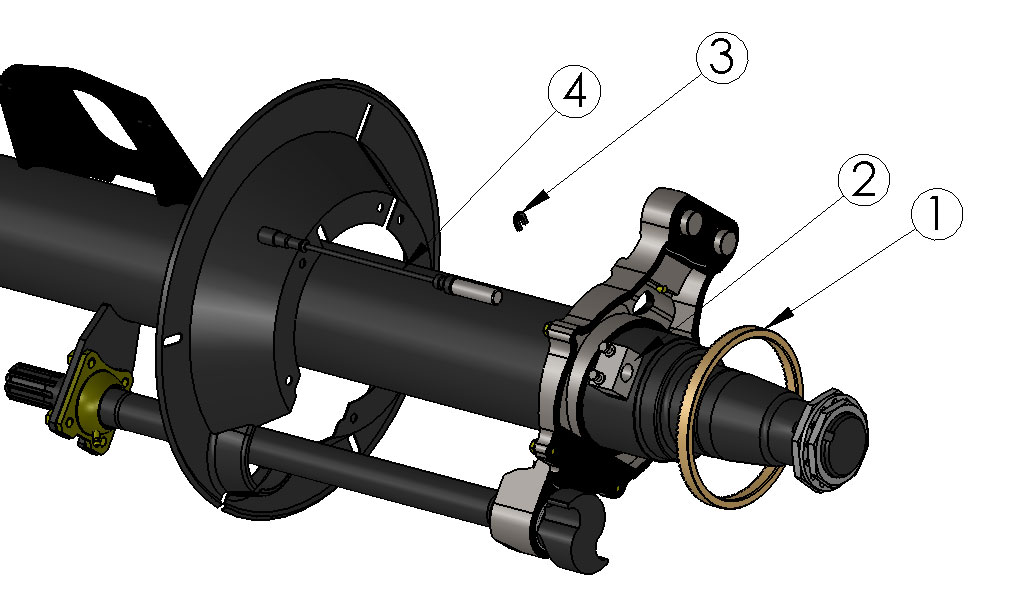

420 x 180mm – 260 Series ABS/Anti-Lock Assembly
Item Part No. Description
120119Pole Wheel (100 tooth)
220120Sensor Block
361557Dust Cover Grommet
461790FSingle Sensor Lead Kit (Sensor/Bush/Paste)

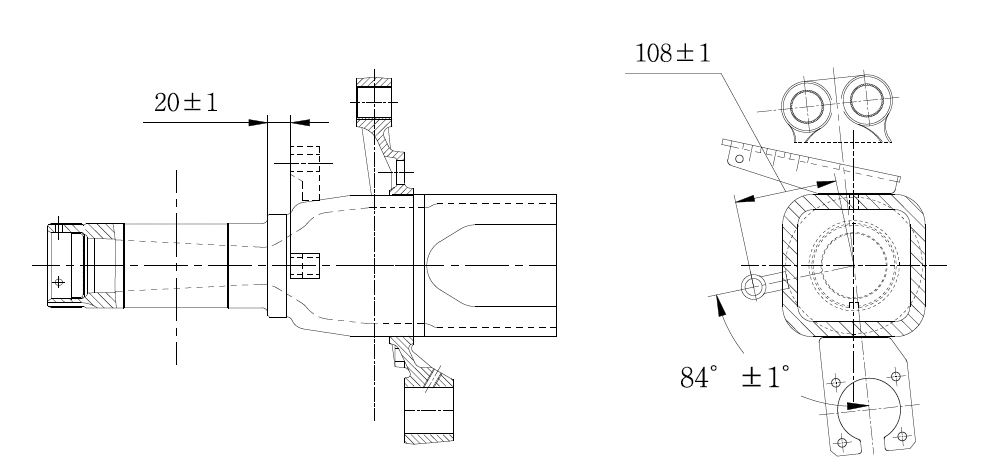

420 x 180mm – 260 Series ABS/Anti-Lock Assembly

ABS sensor at 216mm PCD.
Face of sensor block 20mm from large bearing shoulder.
ABS Block welded 84Degrees from the camshaft axle center line. After fitting ABS sensor check the sensor is working properly.

Camshafts

Camshaft lengths are measured from under head to the center of last circlip groove.

The illustrated camshaft is a right-hand camshaft. When looking at the head of the camshaft a right-hand cam is Z shaped and a left hand is S shaped

420 x 180 – 100 “F” Series Camshaft Parts List | Granning Axles & Suspensions
Part No. Description (DIM A)
61127Left Hand Large Head (189mm)
61147Right Hand Large Head (189mm)
61061Left Hand Large Head (212mm)
61071Right Hand Large Head (212mm)
61138Left Hand Large Head (250mm)
61148Right Hand Large Head (250mm)
61065Left Hand Large Head (519mm)
61075Right Hand Large Head (519mm)
61151Left Hand Large Head (680mm)
61152Right Hand Large Head (680mm)
61629Left Hand Large Head (700mm)
61628Right Hand Large Head (700mm)

Position of seals in the anchor bracket

Position of seals in the anchor bracket

The direction of the grease seals in the anchor bracket is important as well as the position of the beveled washer between the anchor bracket and camshaft head.
