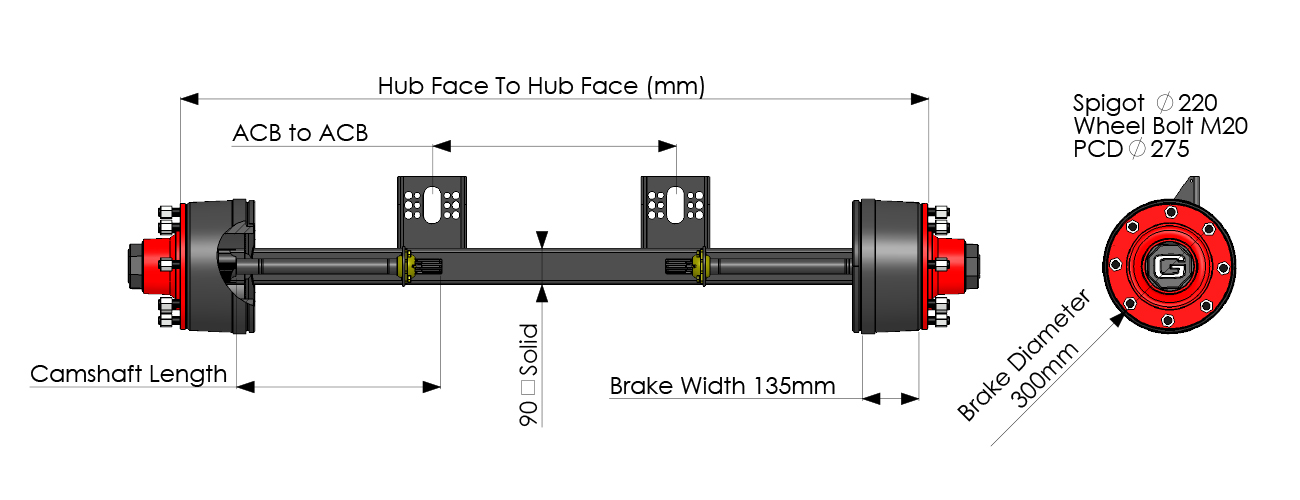

Agricultural Axles 750 series – ∅300mm x 135mm

Product Code * Axle Type * Beam Type * Track * Camshaft * Acb * Wheel Bolt *
60761 1470mm 300x135Drum brake 90mm solid square 1470mm (HUB) 430mm 371mm Din Twin Eight Stud
60753 1794mm 300x135Drum brake 90mm solid square 1794mm (HUB) 519mm 517mm Din Twin Eight Stud
60756 1794mm 300x135Drum brake 90mm solid square 1794mm (HUB) 610mm 335mm Din Twin Eight Stud
1894mm 300x135Drum brake 90mm solid square 1894mm (HUB) 519mm 617mm Din Twin Eight Stud
60755 1894mm 300x135Drum brake 90mm solid square 1894mm (HUB) 610mm 435mm Din Twin Eight Stud
60752 2015mm 300x135Drum brake 90mm solid square 2015mm (HUB) 519mm 738mm Din Twin Eight Stud
